AD7891
–19–
REV. A
Effective Number of Bits
The formula for signal to (noise + distortion) Ratio (see termi-
nology) is related to the resolution, or number of bits, of the
converter. Rewriting the formula, below, gives a measure of
performance expressed in effective number of bits (ENOB):
ENOB = (SNR - 1.76)/6.02
where
SNR
is the signal to (noise + distortion) ratio.
The effective number of bits for a device can be calculated from
its measured SNR. Figure 20 shows a typical plot of effective
number of bits versus frequency for the AD7891-1 and the
AD7891-2 from dc to 200 kHz. The sampling frequency is
500 kHz. The AD7891-1 inputs were configured for
±
10 V
operation. The AD7891-2 inputs were configured for 0 to +5V
operation. The AD7891-1 plot only goes to 100kHz as a
±
10 V sine wave of sufficient quality was unavailable at higher
frequencies.
Figure 20 shows that the AD7891-1 converts an input sine wave
of 100 kHz to an effective number of bits of of 11 which equates
to a signal-to-(noise + distortion) level of 68.02 dBs. The
AD7891-2 converts an input sine wave of 200 kHz to an effec-
tive number of bits of 11.07 which equates to a signal-to-(noise
+ distortion) level of 68.4 dBs.
FREQUENCY – kHz
12.0
11.9
11.1
40
80
120
11.5
11.4
11.3
11.2
11.7
11.6
11.8
20
0
60
100
140
160
180
200
11.0
E
AD7891-2 ENOB
AD7891-1 ENOB

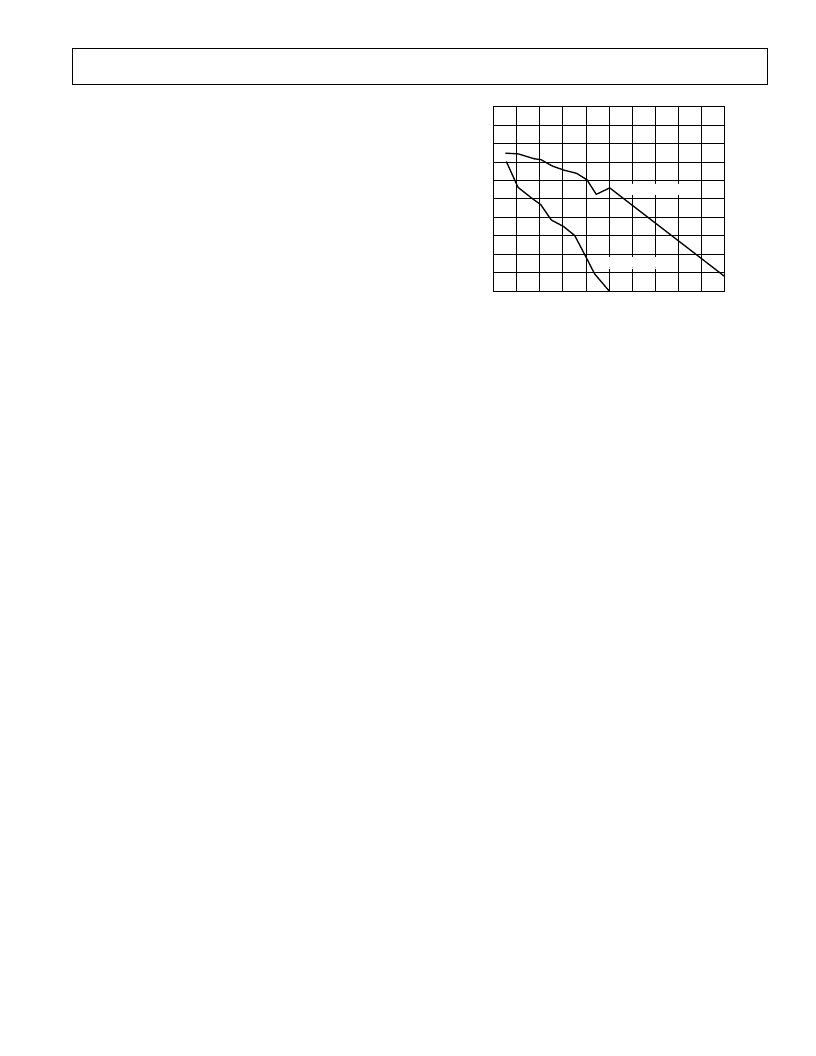

Figure 20. Effective Number of Bits vs. Frequency
