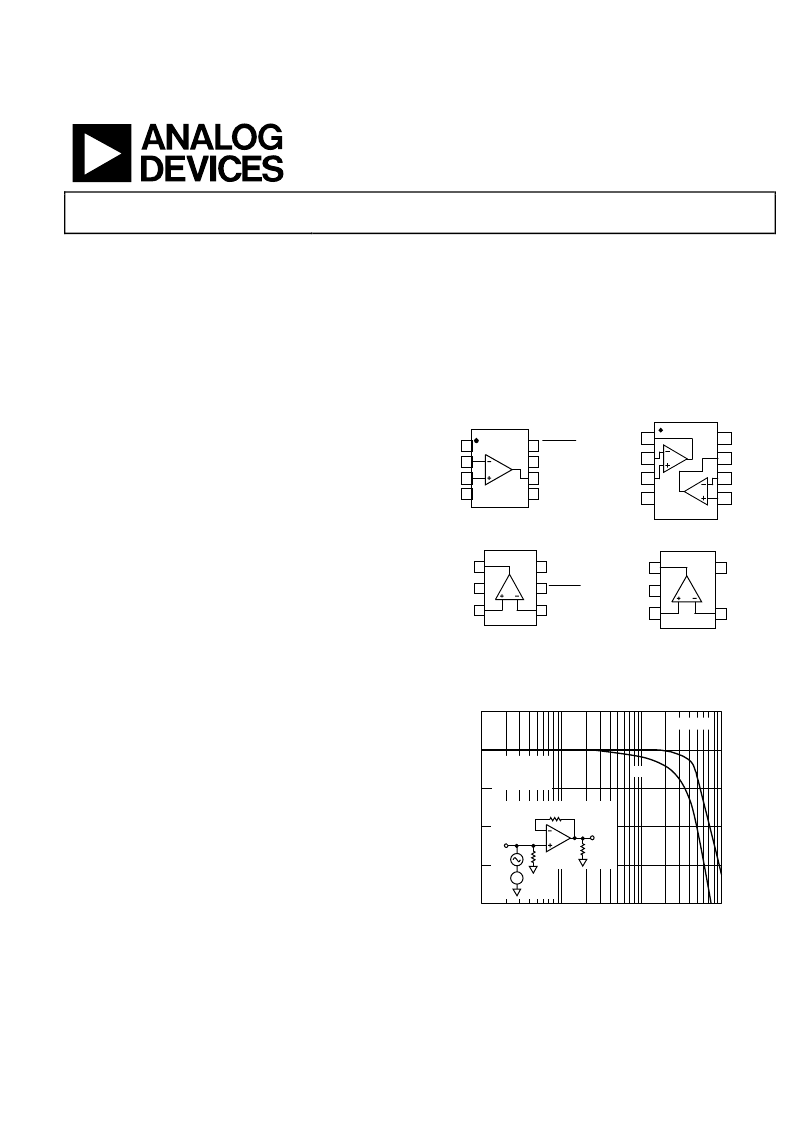

Low Cost, 300 MHz
Rail-to-Rail Amplifiers
AD8061/AD8062/AD8063
FEATURES
Low cost
Single (AD8061), dual (AD8062)
Single with disable (AD8063)
Rail-to-rail output swing
Low offset voltage: 6 mV
High speed
300 MHz, 3 dB bandwidth (G = 1)
650 V/μs slew rate
8.5 nV/√Hz at 5 V
35 ns settling time to 0.1% with 1 V step
Operates on 2.7 V to 8 V supplies
Input voltage range = 0.2 V to +3.2 V with V
S
= 5
Excellent video specs (R
L
= 150 Ω, G = 2)
Gain flatness 0.1 dB to 30 MHz
0.01% differential gain error
0.04° differential phase error
35 ns overload recovery
Low power
6.8 mA/amplifier typical supply current
AD8063 400 μA when disabled
Rev. D
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
2005 Analog Devices, Inc. All rights reserved.
www.analog.com
APPLICATIONS
Imaging
Photodiode preamps
Professional video and cameras
Hand sets
DVDs/CDs
Base stations
Filters
ADC drivers
CONNECTION DIAGRAMS
8
7
6
5
1
2
3
4
NC
–IN
+IN
+V
S
V
OUT
NC
–V
S
AD8061/
AD8063
NC = NO CONNECT
(Not to Scale)
0
DISABLE
V
OUT1
–IN1
+IN1
–V
S
+V
S
V
OUT2
–IN2
+IN2
1
2
3
4
8
7
6
5
(Not to Scale)
AD8062
0
Figure 1. 8-Lead SOIC (R)
Figure 2. 8-Lead SOIC (R)/MSOP (RM)
+IN
+V
S
–V
S
AD8063
1
2
3
6
4
–IN
V
OUT
(Not to Scale)
5
DISABLE
0
+IN
+V
S
–V
S
1
2
3
4
–IN
V
OUT
5
AD8061
(Not to Scale)
0
Figure 3. 6-Lead SOT-23 (RT)
Figure 4. 5-Lead SOT-23 (RT)
GENERAL DESCRIPTION
The AD8061, AD8062, and AD8063 are rail-to-rail output
voltage feedback amplifiers offering ease of use and low cost.
They have bandwidth and slew rate typically found in current
feedback amplifiers. All have a wide input common-mode
voltage range and output voltage swing, making them easy to
use on single supplies as low as 2.7 V.
Despite being low cost, the AD8061, AD8062, and AD8063
provide excellent overall performance. For video applications
their differential gain and phase errors are 0.01% and 0.04° into
a 150 Ω load, along with 0.1 dB flatness out to 30 MHz. Addi-
tionally, they offer wide bandwidth to 300 MHz along with
650 V/μs slew rate.
The AD8061, AD8062, and AD8063 offer a typical low power
of 6.8 mA/amplifier, while being capable of delivering up to
50 mA of load current. The AD8063 has a power-down disable
feature that reduces the supply current to 400 μA. These features
make the AD8063 ideal for portable and battery-powered
applications where size and power are critical.
R
F
= 0
Ω
FREQUENCY (MHz)
3
–12
1
1
N
–6
100
10
0
–3
–9
k
V
O
= 0.2V p-p
R
L
= 1k
Ω
V
BIAS
= 1V
R
F
OUT
IN
V
BIAS
50
Ω
R
L
R
F
= 50
Ω
±
0
Figure 5. Small Signal Response, R
F
= 0 Ω, 50 Ω
