AD8146/AD8147/AD8148
Rev. 0 | Page 17 of 24
–OUT R
+OUT R
–OUT G
+OUT G
–OUT B
+OUT B
V
OCM
WEIGHTING EQUATIONS:
RED V
OCM
=2
SYNC
– H
SYNC
) + V
MIDSUPPLY
GREEN V
OCM
=2
SYNC
) + V
MIDSUPPLY
BLUE V
OCM
=2
SYNC
+ H
SYNC
) + V
MIDSUPPLY
+IN R
–IN R
V
SYNC
H
SYNC
SYNC LEVEL
+IN G
–IN G
+IN B
–IN B
R
1k
1k
AD8147/AD8148
500
500
G
1k
1k
500
500
V
OCM
V
OCM
V
OCM
B
1k
1k
500
500
OPD
×2
0

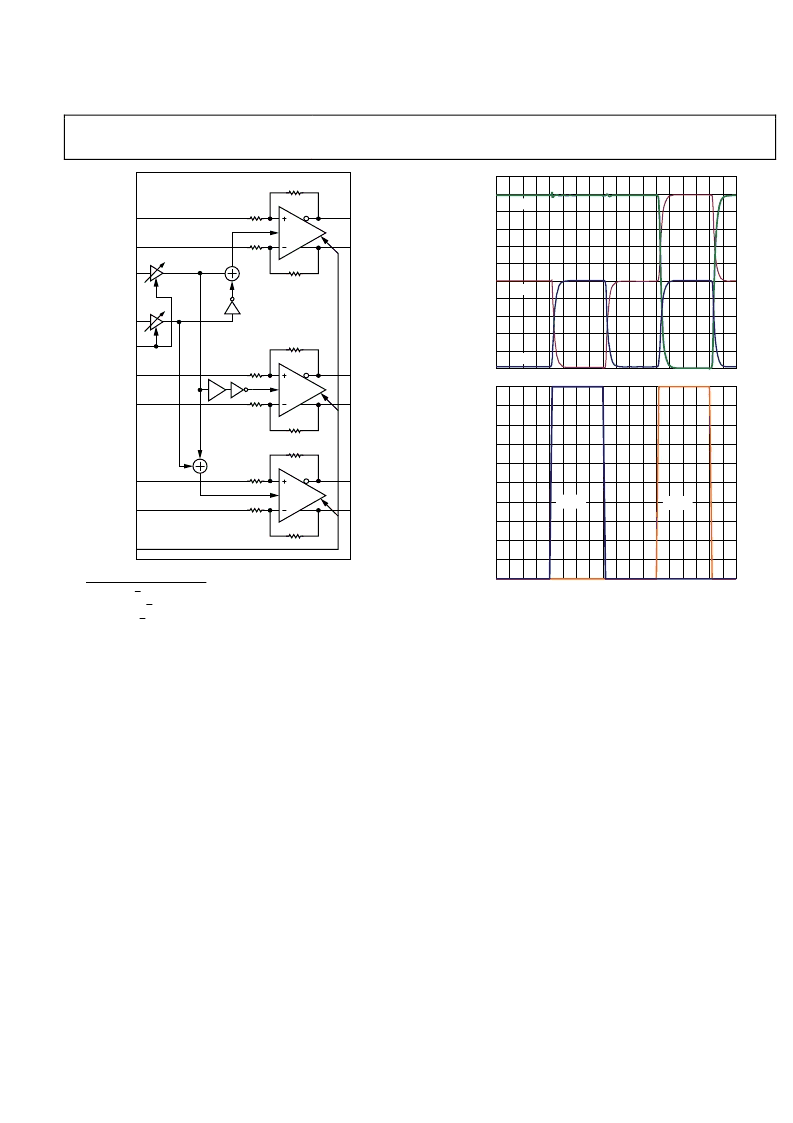

Figure 30. AD8147/AD8148 Sync-On Common-Mode Encoding Scheme
0
0.5
1.0
1.5
2.0
4.0
3.5
4.5
2.5
3.0
5.0
0.99
1.00
1.01
1.03
1.04
1.05
1.02
TIME (μs)
1.06
1.07
H
SYNC
V
SYNC
2.0
2.1
2.2
2.3
2.4
2.9
2.8
3.0
2.5
2.6
2.7
3.1
R
G
B
0
V
V
Figure 31. AD8147 Sync-On Common-Mode Signals in Single 5 V Application
The transmitted common-mode sync signal magnitudes are
scaled by applying a dc voltage to the SYNC LEVEL input,
referenced to GND. The difference between the voltage applied
to the SYNC LEVEL input and GND sets the peak deviation of
the encoded sync signals about the midsupply, common-mode
voltage. For example, with the SYNC LEVEL input set at 500 mV
the deviation of the encoded sync pulses about the nominal
midsupply, common-mode voltage is typically ±500 mV. The
equations in Figure 30 describe how the V
SYNC
and H
SYNC
signals
are encoded on each color’s midsupply common-mode signal.
In these equations, the weights of the V
SYNC
and H
SYNC
signals
are ±1 (+1 for high and 1 for low), and the constant K is equal
to the peak deviation of the encoded sync signals.
Figure 31 shows how the sync signals appear on each common-
mode voltage in a single 5 V supply application when the voltage
applied to the SYNC LEVEL input is 500 mV, which is the
typical setting for most applications.
