Precision, Dual-Channel
Difference Amplifier
Preliminary Technical Data
AD8270
FEATURES
With no external resistors:
Difference Amplifier: Gains: 0.5, 1, 2
Inverting Amplifier: Gains: 0.5, 1, 2
Noninverting Amplifier: Gains: 1.5, 2, 3
Set reference voltage at 0, +Vs/2, or +Vs
Excellent AC Specifications
10 MHz bandwidth
30V/μs slew rate
Low Distortion
-90 dBc @ 100 kHz, 20Vpp, 600
load
High Accuracy DC Performance
0.05% gain accuracy
10 ppm gain drift
400 uV offset voltage
80 dB CMRR
Two channels in small 4 mm × 4 mm LFCSP
Supply current: 2.5 mA per channel
Supply range: ±2.5 V to ±18 V
APPLICATIONS
Instrumentation Amplifier Building Block
Level Translator
Automatic Test Equipment
High Performance Audio
Sin/Cos Encoders
GENERAL DESCRIPTION
Rev. PrA
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
2007 Analog Devices, Inc. All rights reserved.
www.analog.com
The AD8270 is a low distortion, dual-channel amplifier with
internal gain setting resistors. With no external components, it
can be configured as a high performance difference amplifier
(G=0.5, 1, or 2), inverting amplifier (G=0.5, 1, or 2) or non-
inverting amplifier (G=1.5, 2, or 3).
FUNCTIONAL BLOCK DIAGRAM
AD8270
1
2
3
4
12
11
10
9
5
6
7
8
13
14
15
16
–IN1
–IN1
+IN1
+IN1
R
R
+
O
O
–
–IN2
–IN2
+IN2
+IN2
R
R
10k
10k
10k
10k
10k
10k
10k
10k
10k
10k
20k
20k
20k
20k

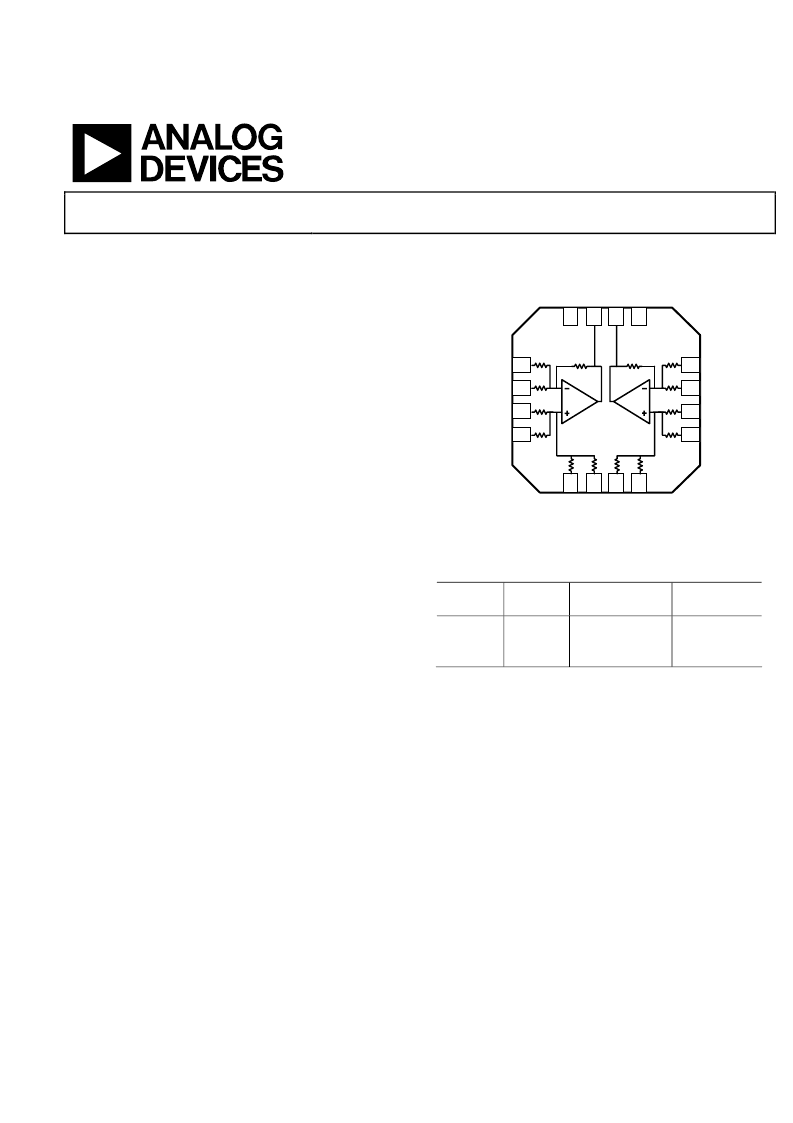

Figure 1. AD8270 Dual Difference Amplifier
Table 1. Difference Amplifiers by Category
Low
Distortion
AD8270
AD8273
AMP03
High
Voltage
AD628
AD629
AD8212
Single Supply
Uni-directional
AD8202
AD8203
Single Supply
Bi-directional
AD8205
AD8206
AD8210
The AD8270 is the first dual difference amplifier in the small 4
mm × 4mm LFCSP. It requires the same board area as a typical
single difference amplifier. The smaller package allows a 2X
increase in channel density and a lower cost per channel, all
with no compromise in performance.
The AD8270 operates on both single and dual supplies and only
requires 2.5 mA maximum supply current for both amplifiers. It
is specified over the industrial temperature range of 40°C to
+85°C and is fully RoHS compliant.
