AD8341
Rev. 0 | Page 15 of 20
1RM
1AVG
A
SPAN 10MHz
1MHz/
CENTER 1.96Hz
–20
–12
–40
–50
–60
–70
–80
–90
–100
–112
MARKER 1 [T1 ]
–18.47dBm
1.95999900GHz
1
RBW 30kHz
VBW 100kHz
SWT 500ms
RF ATT 0dB
UNIT dBm
REF LVL
–12dBm
0
–30
0.3dB OFFSET
1 [T1]
1.95––4.06dBm
–77.64dBm
CH PWR
C11
C11
C0
C0
CU1
CU1

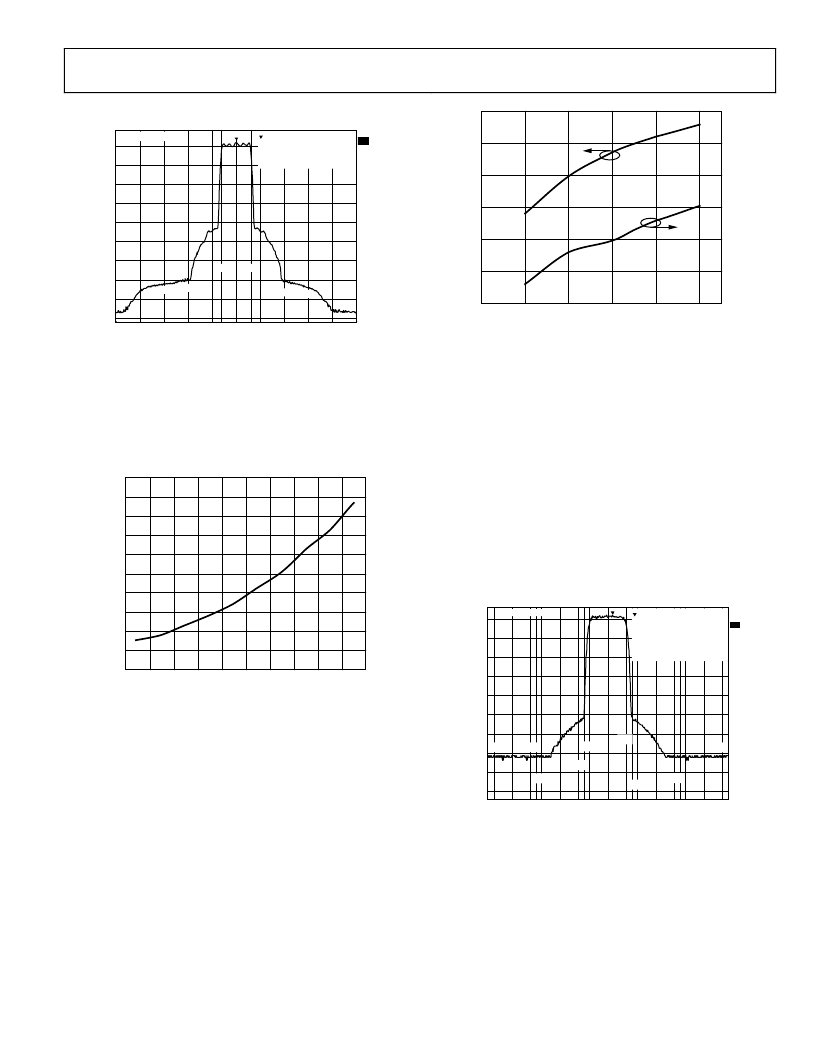

Figure 35. Output Spectrum, 1960 MHz, Single-Carrier CDMA2000
Test Model at 4 dBm, V
BBI
= V
BBQ
= 0.353 V, Adjacent Channel Power
Measured at ±2.25 MHz Carrier Offset in 1 MHz BW Input Signal Filtered
Using a Cavity Tuned Filter (Pass Band = 6.8 MHz)
Holding the differential I and Q control voltages steady at
0.353 V, input power was swept. Figure 36 shows variation in
spurious content, again measured at ±2.25 MHz carrier offset in
a 1 MHz bandwidth, as defined by the 3GPP2 specification.
0
–70
–90
–88
–86
–84
–82
–80
–78
–76
–74
–72
A
–20
–18
–16
–14
–12
–10
–8
–6
–4
–2
0
OUTPUT POWER (dBm)
Figure 36. Adjacent Channel Power vs. Output Power,
CDMA2000 Single Carrier @ 1960 MHz; ACP Measured at
±2.25 MHz Carrier Offset (1 MHz BW); V
BBI
= V
BBQ
= 0.353 V
With a fixed input power of 2.4 dBm, the output power was
again swept by exercising the I and Q inputs. V
BBI
and V
BBQ
were
kept equal and were swept from 100 mV to 500 mV. The result-
ing output power and ACP are shown in Figure 37.
0
0
–30
–25
–20
–15
–10
–5
O
0
0.1
0.2
0.3
0.4
0.5
IQ CONTROL VOLTAGE
–60
–65
–70
–75
–80
–85
–90
A
Figure 37. Output Power and ACP vs. I and Q Control Voltages,
CDMA2000 Test Model, V
BBI
= V
BBQ
, ACP Measured at
±2.25 MHz Carrier Offset in 1 MHz BW
Figure 37 shows that for a fixed input power, the ACP (measured in
dBm) tracks the output power as the gain is changed.
WCDMA APPLICATION
Figure 38 shows a plot of the output spectrum of the AD8341
transmitting a single-carrier WCDMA signal (Test Model 1-64
at 2140 MHz). The carrier power is approximately 9 dBm. The
differential I and Q control voltages are both equal to 0.353 V,
that is, the vector is sitting on the unit circle at 45°. At this
power level, an adjacent channel power ratio of 61 dBc is
achieved. The alternate channel power ratio of 72 dBc is
dominated by the noise floor of the AD8341.
1RM
SPAN 25MHz
2.5MHz/
CENTER 2.14GHz
–30
–24
–50
–60
–70
–80
–90
–100
–110
–120
–124
OFFSET 1dB
0
–40
A
MARKER 1 [T1 ]
–28.39dBm
2.14050000GHz
RBW 30kHz
VBW 300kHz
SWT 1s
RF ATT 0dB
UNIT dBm
REF LVL
–24dBm
1 [T1]
2.14––8.95dBm
–60.78dB
CH PWR
1
C12
C12
C11
C11
C0
C0
CU1
CU1
CU2
Figure 38. AD8341 Single-Carrier WCDMA Spectrum at 2140 MHz
Figure 39 shows how ACPR and noise vary with varying input
power (differential I and Q control voltages are held at 0.353 V).
At high power levels, both adjacent and alternate channel power
ratios increase sharply. As output power drops, adjacent and
alternate channel power ratios both reach minimums before the
measurement becomes dominated by the noise floor of the
AD8341. At this point, adjacent and alternate channel power
ratios become approximately equal.
