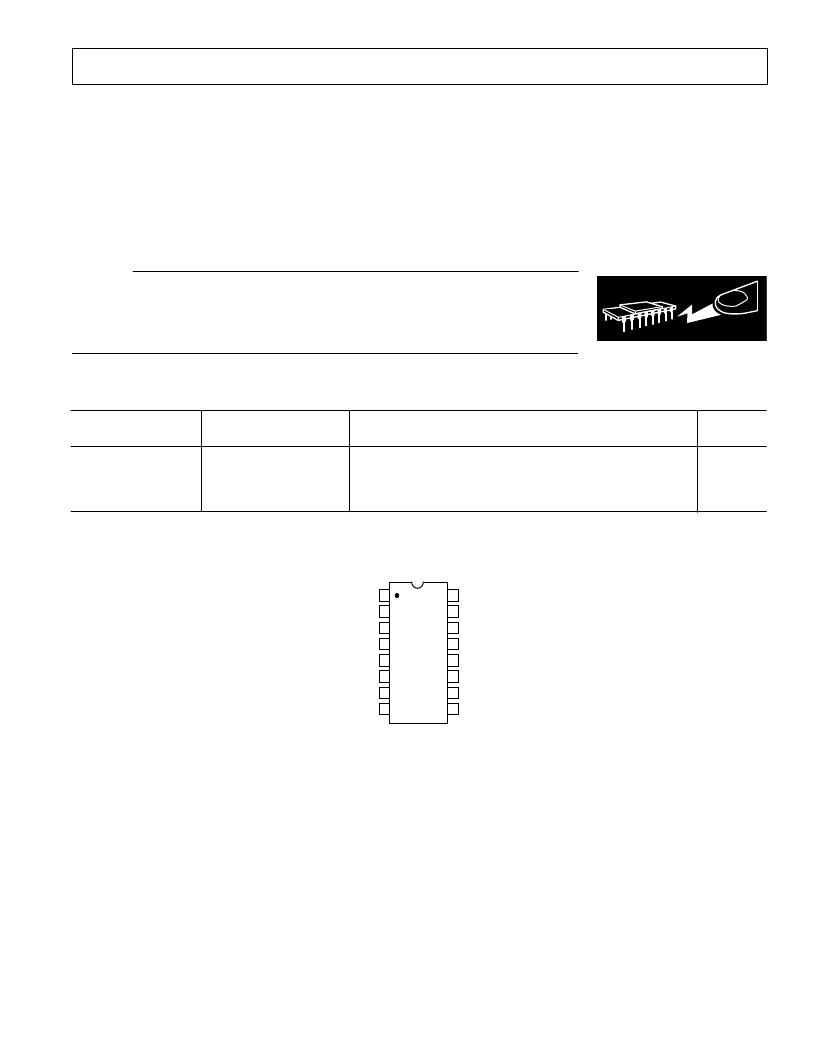

REV. 0
AD8346
–3–
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD8346 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage VPS1, VPS2 . . . . . . . . . . . . . . . . . . . . . .5.5 V
Input Power LOIP, LOIN (re. 50
) . . . . . . . . . . . . +10 dBm
Min Input Voltage IBBP, IBBN, QBBP, QBBN . . . . . . . . 0 V
Max Input Voltage IBBP, IBBN, QBBP, QBBN . . . . . . .2.5 V
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . 500 mW
θ
JA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
°
C/W
Operating Temperature Range . . . . . . . . . . . –40
°
C to +85
°
C
Storage Temperature Range . . . . . . . . . . . . –65
°
C to +150
°
C
Lead Temperature Range (Soldering 60 sec) . . . . . . . .+300
°
C
ORDERING GUIDE
Package
Option
Model
Temperature Range
–40
°
C to +85
°
C
Package Description
AD8346ARU
AD8346ARU-REEL
AD8346ARU-REEL7
AD8346-EVAL
Tube (16-Lead TSSOP) Thin Shrink Small Outline Package
13" Tape and Reel
7" Tape and Reel
Evaluation Board
RU-16
PIN CONFIGURATION
TOP VIEW
(Not to Scale)
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
IBBP
QBBP
AD8346
IBBN
QBBN
COM1
COM4
COM1
COM4
LOIN
VPS2
LOIP
VOUT
VPS1
COM3
ENBL
COM2
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may effect device reliability.
