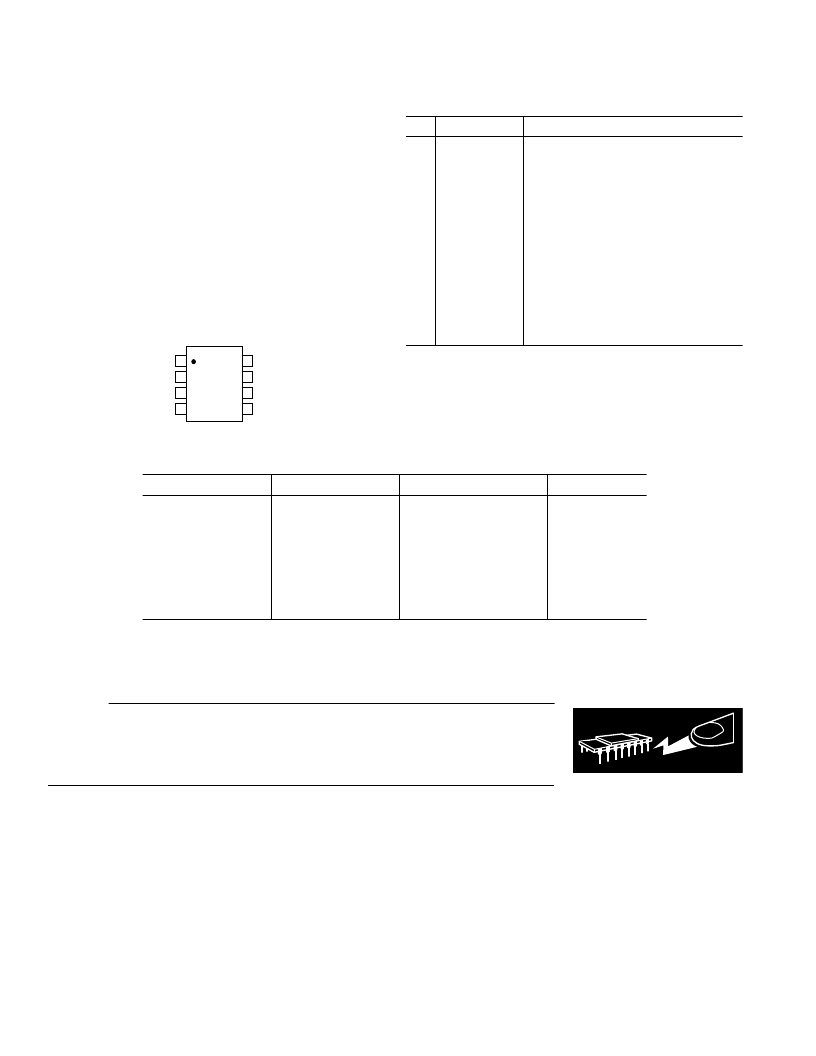

REV. 0
AD8350
–4–
C AUT ION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD8350 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. T herefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
WARNNG
ESD SENSITIVE DEVICE
ORDE RING GUIDE
Model
T emperature Range
Package Description
Package Option
AD8350AR15
AD8350AR15-REEL
1
AD8350AR15-REEL7
2
AD8350AR15-EVAL
AD8350AR20
AD8350AR20-REEL
1
AD8350AR20-REEL7
2
AD8350AR20-EVAL
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
8-Lead SOIC
8-Lead SOIC
8-Lead SOIC
Evaluation Board (15 dB)
8-Lead SOIC
8-Lead SOIC
8-Lead SOIC
Evaluation Board (20 dB)
SO-8
SO-8
SO-8
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
SO-8
SO-8
SO-8
NOT ES
1
13" Reels of 2500 each.
2
7" Reels of 750 each.
ABSOLUT E MAX IMUM RAT INGS*
Supply Voltage, V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . +11 V
Input Power Differential . . . . . . . . . . . . . . . . . . . . . . . +8 dBm
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . .400 mW
θ
JA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
°
C/W
Maximum Junction T emperature . . . . . . . . . . . . . . . . +125
°
C
Operating T emperature Range . . . . . . . . . . . .–40
°
C to +85
°
C
Storage T emperature Range . . . . . . . . . . . . .–65
°
C to +150
°
C
Lead T emperature Range (Soldering 60 sec) . . . . . . . . +300
°
C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. T his is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may effect device reliability.
PIN CONFIGURAT ION
TOP VIEW
(Not to Scale)
8
7
6
5
1
2
3
4
IN+
ENBL
V
CC
OUT+
IN–
GND
GND
OUT–
AD8350
PIN FUNCT ION DE SCRIPT IONS
Pin
Function
Description
1, 8
IN+, IN–
Differential Inputs. IN+ and IN–
should be ac-coupled (pins have a dc
bias of midsupply). Differential input
impedance is 200
.
Power-up Pin. A high level (5 V) en-
ables the device; a low level (0 V) puts
device in sleep mode.
Positive Supply Voltage. +5 V to +10 V.
Differential Outputs. OUT + and
OUT – should be ac-coupled (pins have
a dc bias of midsupply). Differential
input impedance is 200
.
Common External Ground Reference.
2
ENBL
3
4, 5
V
CC
OUT +, OUT –
6, 7
GND
