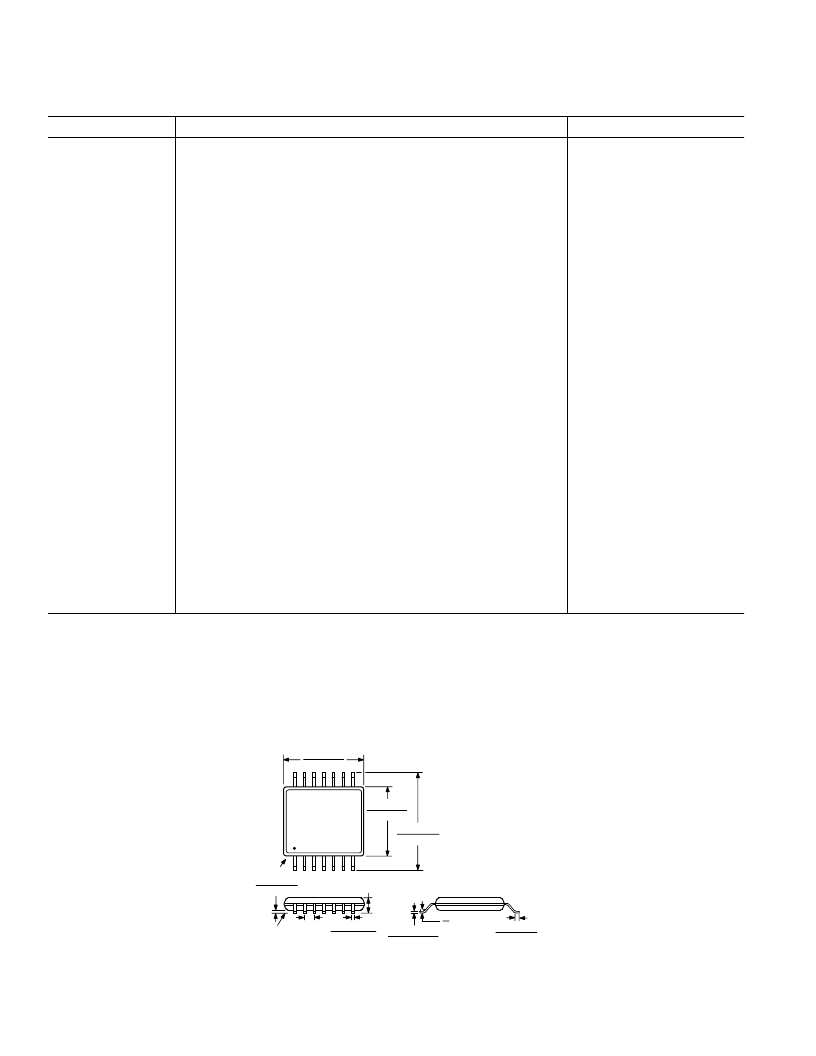

REV. 0
–16–
P
C
AD8367
Table IV. Evaluation Board Configuration Options
Component
Function
Default Condition
TP1, TP2
TP3, TP4
SW1
Supply and Ground Vector Pins
Mode and Gain Vector Pins
VGA/AGC Select: Used to select VGA (position A) or AGC
(position B) mode of operation. SW2 must be set for position A for
AGC mode of operation.
MODE Select: Used to select positive or negative VGA slope.
Set to position B for an increasing gain with V
GAIN
, position A for
decreasing gain law.
Device Enable: When LK1 is installed, the ENBL pin is connected
to the positive supply and the AD8367 is in operating mode.
Input Interface: R1 and R2 are used to provide an L-pad impedance-
transforming network. The broadband matching network transforms
a 50
source to match a 200
load with 11.5 dB of insertion loss.
Output Interface: R3 and R4 are used to transform a 50
load ter-
mination to look like a 200
load with 11.5 dB of insertion loss.
The AC coupling capacitor, C4, can be increased to obtain a lower
high-pass corner frequency.
Power Supply Decoupling: The nominal supply decoupling consists
of a 1
F capacitor to ground, a 4.7
series resistor, and a 0.1
capacitor to ground. The same de-coupling network should be used on
both VPSI and VPSO supply lines.
Internal Supply Decoupling: Capacitor C5 provides mid-supply
decoupling.
Filter Capacitor: HPFL capacitor, sets the high pass corner frequency.
Not Applicable
Not Applicable
SW1 A
SW2
SW2 B
LK1
SW3 PWUP
R1, R2
R1 57.6
(Size 0603)
R2 174
(Size 0603)
R3, R4, C4
R3 57.6
(Size 0603)
R4 174
(Size 0603)
C4 0.1
F (Size 0603)
C1, C2, C3, R5, R6
C1 1
R5 R6 4.7
(Size 0805)
C2 C3 0.1
F (Size 0603)
F
F (Size 0603)
C5
C5 10 nF (Size 0603)
C
HPFL
C
HPFL
0.1
R
HP
0
(Size 0603)
C
AGC
= 0.1
F (Size 0805)
C
AGC
AGC Filter Capacitor: Capacitor, C
AGC
, sets closed loop AGC
response time.
Mode Pullup Resistor
F (Size 0805)
R7
R7 10 k
(Size 0805)
14-Lead (TSSOP)
(RU-14)
14
8
7
1
0.256 (6.50)
0.246 (6.25)
0.177 (4.50)
0.169 (4.30)
PIN 1
0.006 (0.15)
0.002 (0.05)
0.201 (5.10)
0.193 (4.90)
SEATING
PLANE
0.0118 (0.30)
0.0075 (0.19)
0.0256
(0.65)
BSC
0.0433 (1.10)
MAX
0.0079 (0.20)
0.0035 (0.090)
0.028 (0.70)
0.020 (0.50)
8
0
OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
