AD8383
PCB DESIGN FOR GOOD THERMAL PERFORMANCE
The total maximum power dissipation of the AD8383 is partly
dependent on load. In a 6-channel 60 Hz XGA system running
at a 65 MHz clock rate, the total maximum power dissipation is
1.08 W at an LCD panel input capacitance of 150 pF.
Rev. 0 | Page 10 of 16
At the maximum specified clock rate of 100 Ms/s, the total
maximum power dissipation can exceed 2 W for large capacitive
loads, as shown in Table 4.
Although the maximum safe operating junction temperature is
higher, the AD8383 is 100% tested at a junction temperature of
125°C. Consequently, the maximum guaranteed operating
junction temperature is 125°C. To limit the maximum junction
temperature at or below the guaranteed maximum, the package,
in conjunction with the PCB, must effectively conduct heat
away from the junction.
The AD8383’s LFCSP package is designed to provide superior
thermal characteristics, partly achieved by an exposed die
paddle on the bottom surface of the package. In order to take
full advantage of this feature, the exposed paddle must be in
direct thermal contact with the PCB, which then serves as a
heat sink.
A thermally effective PCB must incorporate a thermal pad and
a thermal via structure. The thermal pad provides a solderable
contact surface on the top surface of the PCB. The thermal via
structure provides a thermal path to the inner and bottom
layers of the PCB to remove heat.
THERMAL PAD DESIGN
Thermal performance of the AD8383 varies logarithmically
with the contact area between the exposed thermal paddle and
the thermal pad on the top layer of the PCB. See Figure 11.
The θ
JA
(of the AD8383 mounted on a standard JEDEC PCB) is
reduced by approximately 40% as the contact area increases
from 0% (no thermal pad) to 50%. It approaches its specified
value as the contact area (on the JEDEC standard PCB)
approaches 100%.
In order to minimize thermal performance degradation of
production PCBs, the contact area between the thermal pad and
the PCB should be maximized. Therefore, the size of the
thermal pad should match the exposed 5.25 mm × 5.25 mm
paddle size. However, if the PCB design rules require a pad-to-
pad clearance of more than 0.3 mm, the size of the thermal pad
may be reduced to 5 mm × 5 mm. Additionally, a second
thermal pad of the same size should be placed on the bottom
side of the PCB. At least one thermal pad should be in direct
thermal (and electrical) contact with the AVCC plane.
25
30
35
40
45
50
θ
J
CONTACT AREA (%)
25
0
50
75
100
0

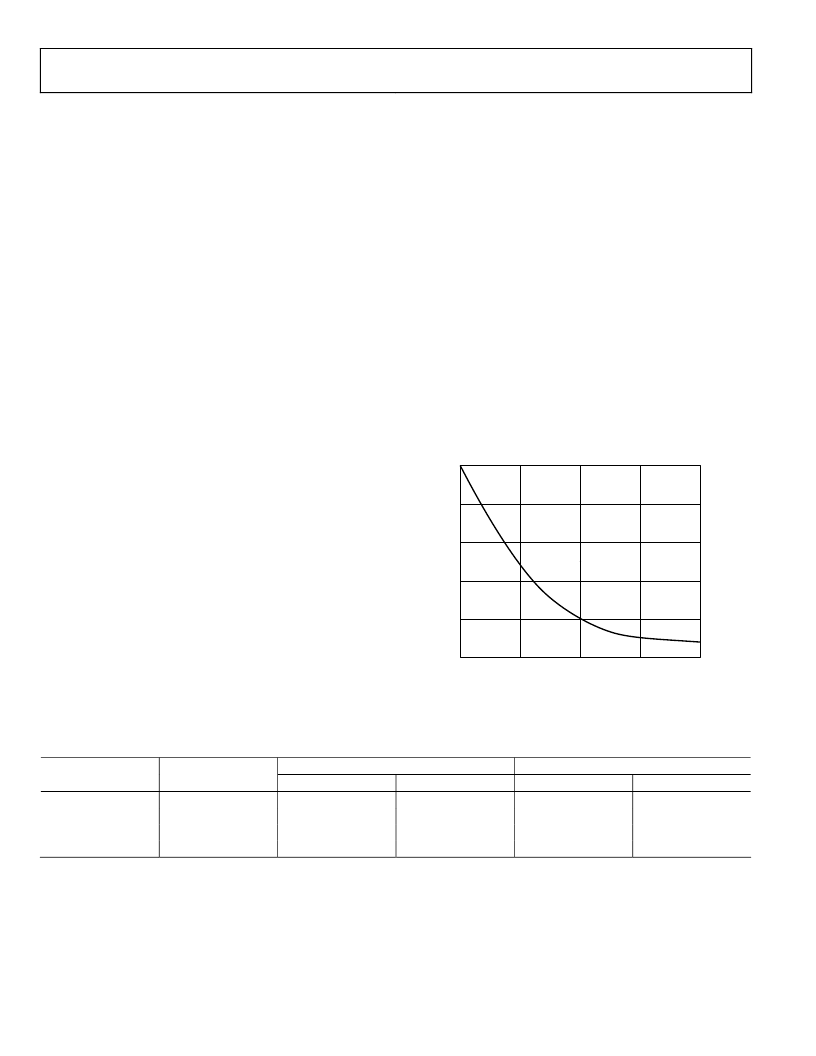

Figure 11. Thermal Performance vs. Contact Area (on a JEDEC PCB)
Table 4. Power Dissipation vs. Load Capacitance and VFS at 100 Ms/s Clock Rate
C
LOAD
(pF)
P
QUIESCENT
(W)
150
0.7
200
0.7
250
0.7
300
0.7
VFS = 5 V
VFS = 4 V
P
DYNAMIC
(W)
0.72
0.96
1.20
1.44
P
TOTAL
(W)
1.42
1.66
1.90
2.14
P
DYNAMIC
(W)
0.58
0.77
0.96
1.15
P
TOTAL
(W)
1.28
1.47
1.66
1.85
