REV. 0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties which may result from its
use. No license is granted by implication or otherwise under any patent or patent
rights of Analog Devices.
AD8551/52/54
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700
World Wide Web Site:http://www.analog.com
Fax: 617/326-8703
Analog Devices, Inc., 1997
-
1 -
Rev. 0.2 05/06/97
a
Zero-Drift, Single-Supply,
Rail-to-Rail Input/Output
Operational Amplifier
AD8551/52/54
Preliminary
FEATURES
Low Offset Voltage: 5 μV
Input Offset Drift: 0.03 μV/
°C
Rail-to-Rail Input and Output Swing
5 V Single-Supply Operation
High Gain, CMRR, PSRR: 120 dB
Ultra Low Input Bias Current: 20 pA
Low Supply Current: 650 μA/op amp
Overload Recovery Time: 2 ms
No External Components Required
APPLICATIONS
Automotive Sensors
Pressure and Position Sensors
Strain Gage Amplifiers
Medical Instrumentation
Thermocouple Amplifiers
GENERAL DESCRIPTION
This new family of amplifiers has
ultra-low offset, drift
and
bias current
. The AD8551, AD8552 and AD8534 are single,
dual, and quad amplifiers featuring
rail-to-rail input and
output
swings. All are guaranteed to operate from 2.7 to
5
volts single supply
.
The AD855x family provides the benefits previously found only
in expensive auto-zeroing or chopper-stabilized amplifiers.
Using Analog Devices’ new topology these new zero-drift
amplifiers combine low cost, with high accuracy. (No external
capacitance is required.)
With an offset voltage of only 5μV and drift less than
0.03μV/°C, the AD8551 is perfectly suited for applications
where error sources cannot be tolerated. Position and pressure
sensors, medical equipment, and strain gage amplifiers benefit
greatly from nearly zero drift over their operating temperature
range. Many more systems require the rail-to-rail input and
output swings provided by the AD855x family.
The AD8551/52/54 family is specified for the extended
industrial (-40° to +125°C) temperature range. The AD8551
single and AD8552 dual amplifiers are available in 8-pin
plastic DIP and SO surface mount packages. The AD8554
quad is available in the 14-pin DIP, and narrow 14-pin
packages.

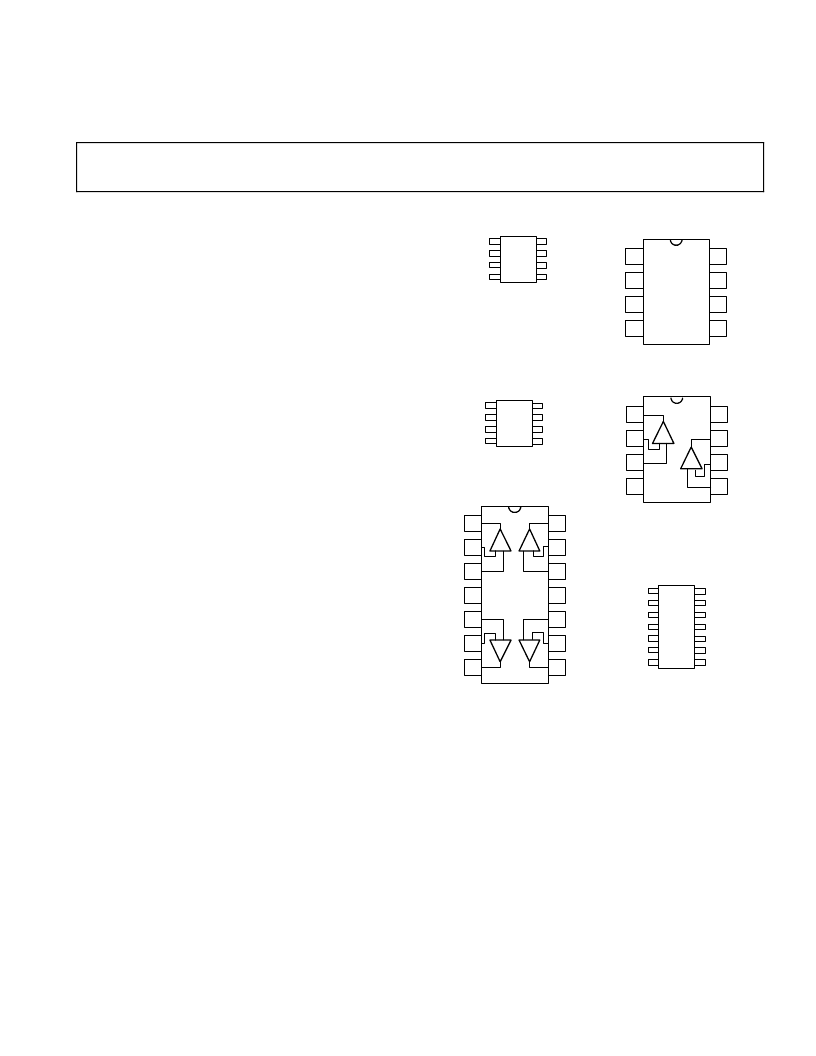

OUT A
-IN A
+IN A
V-
V+
OUT B
-IN B
+IN B
1
2
3
4
5
6
7
14
13
12
11
10
9
8
- +
-
+
- +
-
AD8554
- +
-
+
1
2
3
4
8
7
6
5
V+
OUT B
-IN B
+IN B
OUT A
-IN A
+IN A
V-
OUT A
-IN A
+IN A
V+
V-
OUT D
-IN D
+IN D
OUT C
+IN C
-IN C
+IN B
-IN B
OUT B
8-Lead Epoxy DIP
(N Suffix)
14-Lead
Narrow-Body SO
(N Suffix)
14-Lead Epoxy DIP
(N Suffix)
8-Lead SO
(R Suffix)
AD8552
AD8554
AD8552
Note: Pin orientation is equivalent for each
package variation
NULL
-IN A
+IN A
V-
NC
V+
OUT A
NULL
AD8551
8-Lead SO
(R Suffix)
AD8551
1
2
3
4
8
7
6
5
8-Lead Epoxy DIP
(N Suffix)
NC
V+
OUT A
NULL
NULL
-IN A
+IN A
V-
