AD8603/AD8607/AD8609
BATTERY-POWERED APPLICATIONS
The AD8603/AD8607/AD8609 are ideal for battery-powered
applications. The parts are tested at 5 V, 3.3 V, 2.7 V, and 1.8 V
and are suitable for various applications whether in single or
dual supply.
network at the output to reduce the noise. The signal bandwidth
can be calculated by πR2C2 and the closed-loop bandwidth is
the intersection point of the open-loop gain and the noise gain.
The circuit shown in Figure 47 has a closed-loop bandwidth of
58 kHz and a signal bandwidth of 16 Hz. Increasing C2 to 50 pF
yields a closed-loop bandwidth of 65 kHz, but only 3.2 Hz of
signal bandwidth can be achieved.
In addition to their low offset voltage and low input bias, the
AD8603/AD8607/AD8609 have a very low supply current of
40 μA, making the parts an excellent choice for portable
electronics. The TSOT package allows the AD8603 to be used
on smaller board spaces.
PHOTODIODES
Photodiodes have a wide range of applications from bar code
scanners to precision light meters and CAT scanners. The very
low noise and low input bias current of the AD8603/AD8607/
AD8609 make the parts very attractive amplifiers for I-V
conversion applications.
Figure 47
capacitor helps the circuit maintain stability. The signal
bandwidth can be increased at the expense of an increase in the
total noise; a low-pass filter can be implemented by a simple RC

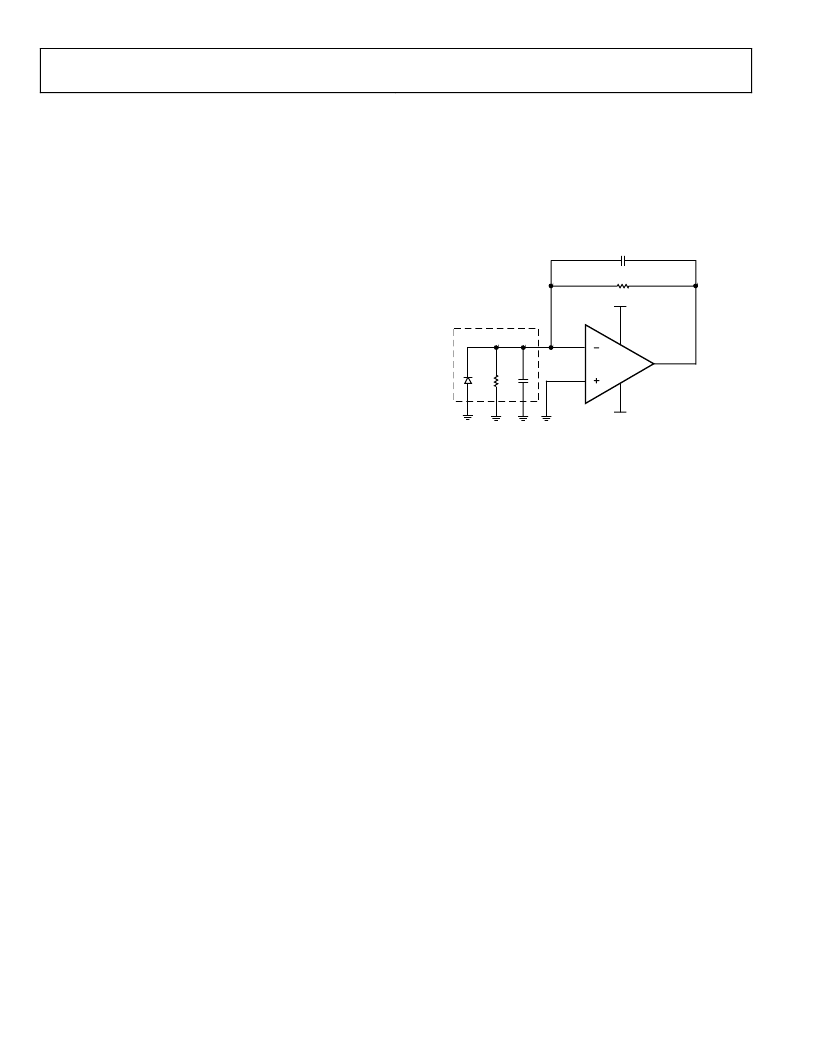

Figure 47. Photodiode Circuit
VEE
VCC
C2 10pF
R2 1000M
R
1
AD8603
C
1
0
shows a simple photodiode circuit. The feedback
Rev. A | Page 14 of 16
