PRELIMINARY TECHNICAL DATA
Precision Very Low Noise
Low Input Bias Current
Operational Amplifiers
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
AD8671/AD8672/AD8674 Rev 0.2 2/21/02
One Technology Way, PO Box 9106, Norwood, MA 02062-9106,
USA
Tel: 781/329-4700
Fax: 781/326-8703
www.analog.com
Analog Devices, Inc., 1997
P
P
r
r
e
e
l
l
i
i
m
m
i
i
n
n
a
a
r
r
y
y Technical Data
AD8671/AD8672/AD8674
FEATURES
Low Noise: 3nV/
Hz
Wide Bandwidth: 10MHz
Low Input Bias Current: 10nA max.
Low Offset Voltage: 75
m
V max.
High open loop gain: 135dB
Low Supply Current: 3 mA/Amp
Dual supply operation: ±5V to ±15V
Unity Gain Stable
No Phase Reversal
APPLICATIONS
PLL filters
Instrumentation
Sensors and Controls
Professional quality audio
GENERAL DESCRIPTION
The AD8671, AD8672 and AD8674 are precision
single, dual and quad amplifiers featuring very low
noise, very low offset voltage and drift, low input bias
current, 10Mhz bandwidth and low power
consumption. Outputs are stable with capacitive loads
of over 100pF. Supply current is less than 3 mA per
amplifier at 30V.
Applications for these amplifiers include high quality
PLL filters, instrumentation--thermocouple, RTD,
strain-bridge and other sensor signal conditioning--
precision filters and professional quality audio.
The AD8671, AD8672 and AD8674 are specified
over the extended industrial (-40° to +125°C)
temperature range. The AD8671, single, is available
in the 8-lead MSOP and 8-lead SOIC packages.
The AD8672, dual, is available in the 8-lead MSOP
and 8-lead SOIC packages. The AD8674, quad, is
available in 14-lead TSSOP and narrow 14-lead SO
packages. Surface mount devices in TSSOP and
MSOP packages are available in tape and reel only.

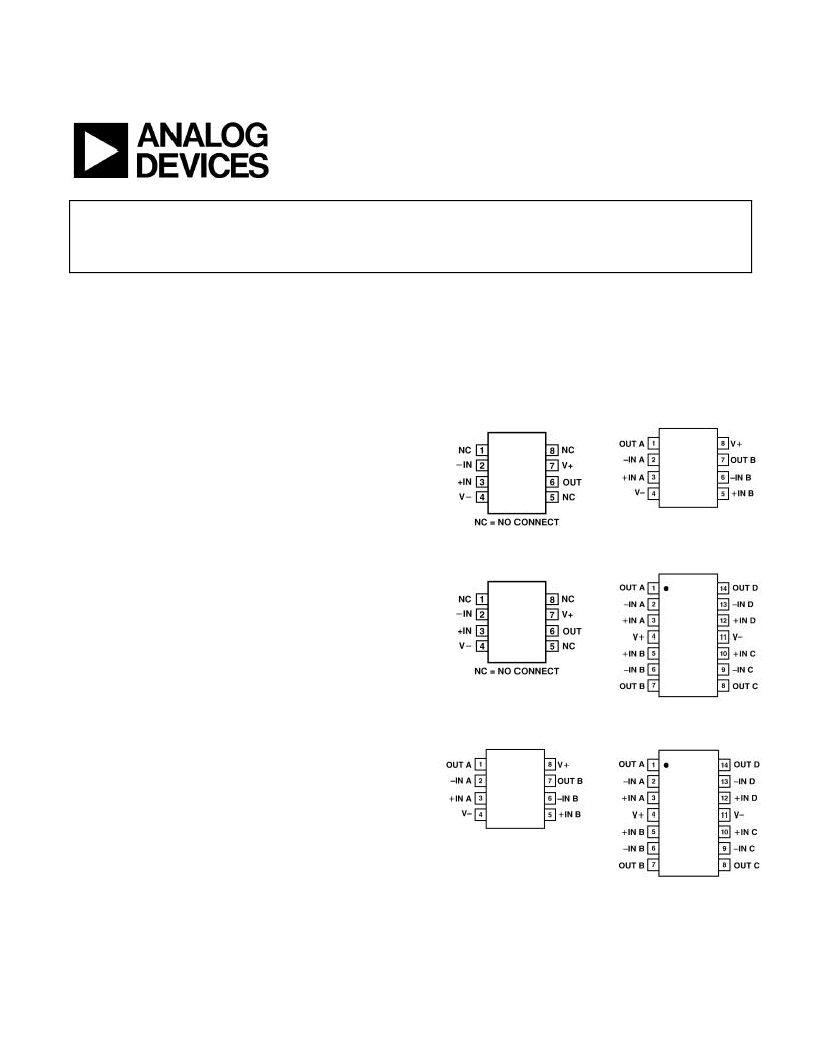

PIN CONFIGURATIONS
8-Lead MSOP
(RM-8)
8-Lead SO
(R-8)
8-Lead SO
(R-8)
14-Lead TSSOP
(RU-14)
8-Lead MSOP
(RM-8)
14-Lead SO
(R-14)
AD8671
AD8671
AD8672
AD8672
AD8674
AD8674
