| 型號： | AD8692ARMZ-R2 |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | 運動控制電子 |
| 英文描述： | Low Cost, High Performance, CMOS Rail-to-Rail Output Operational Amplifier |
| 中文描述： | DUAL OP-AMP, 3000 uV OFFSET-MAX, 0.36 MHz BAND WIDTH, PDSO8 |
| 封裝： | ROHS COMPLIANT, MO-187AA, MSOP-8 |
| 文件頁數： | 1/12頁 |
| 文件大?。?/td> | 271K |
| 代理商： | AD8692ARMZ-R2 |
Low Cost, High Performance, CMOS
Rail-to-Rail Output Operational Amplifier
AD8692
FEATURES
Offset voltage: 400 μV typ
Low offset voltage drift: 6 μV/°C maximum
Very low input bias currents: 1 pA maximum
Low noise: 8 nV/
√
Hz
Low
d
istortion: 0.0006%
Wide bandwidth: 10 MHz
Unity gain stable
Single-supply operation: 2.7 V to 6 V
APPLICATIONS
Photodiode amplification
Battery-powered instrumentation
Medical instruments
Multipole filters
Sensors
Portable audio devices
GENERAL DESCRIPTION
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.326.8703
2004 Analog Devices, Inc. All rights reserved.
www.analog.com

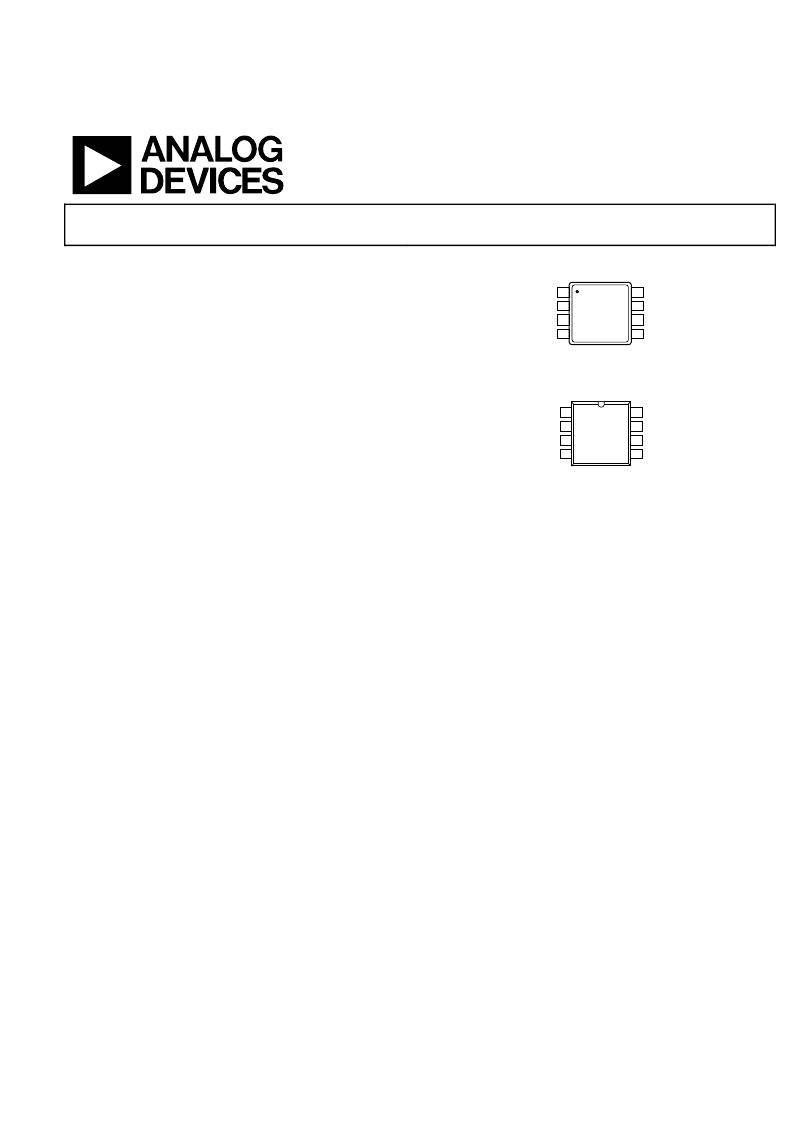

PIN CONFIGURATIONS
OUT A
1
–IN A
2
+IN A
3
V–
4
V+
8
OUT B
7
–IN B
6
+IN B
5
AD8692
TOP VIEW
(Not to Scale)
0
Figure 1. 8-Lead MSOP Pin Configuration
OUT A
1
–IN A
2
+IN A
3
V–
4
V+
8
OUT B
7
–IN B
6
+IN B
5
AD8692
TOP VIEW
(Not to Scale)
0
Figure 2. 8-Lead SOIC Pin Configuration
The AD8692 is a low cost, dual rail-to-rail output, single-supply
amplifier featuring low offset voltage, low input voltage and
current noise, and wide signal bandwidth. The combination of
low offset, low noise, very low input bias currents, and high
speed makes this amplifier useful in a wide variety of applica-
tions. Filters, integrators, photodiode amplifiers, and high
impedance sensors all benefit from the combination of
performance features. Audio and other ac applications benefit
from the wide bandwidth and low distortion.
Applications for this amplifier include PA controls, laser diode
control loops, portable and loop-powered instrumentation,
audio amplification for portable devices, and ASIC input and
output amplifiers.
The AD8692 is specified over the extended industrial tempera-
ture range of 40°C to +125°C. The AD8692 is available in the
micro-SOIC and 8-lead narrow SOIC surface-mount packages.
