| 型號： | AD9958/PCBZ |
| 廠商： | Analog Devices Inc |
| 文件頁數： | 1/44頁 |
| 文件大小： | 0K |
| 描述： | BOARD EVALUATION FOR AD9958 |
| 產品培訓模塊： | Direct Digital Synthesis Tutorial Series (1 of 7): Introduction Direct Digital Synthesizer Tutorial Series (7 of 7): DDS in Action Direct Digital Synthesis Tutorial Series (3 of 7): Angle to Amplitude Converter Direct Digital Synthesis Tutorial Series (6 of 7): SINC Envelope Correction Direct Digital Synthesis Tutorial Series (4 of 7): Digital-to-Analog Converter Direct Digital Synthesis Tutorial Series (2 of 7): The Accumulator |
| 設計資源： | Low Jitter Sampling Clock Generator for High Performance ADCs Using AD9958/9858 and AD9515 (CN0109) Phase Coherent FSK Modulator (CN0186) AD9958/59 Eval Brd Schematics AD9958/59 Eval Brd Gerber Files AD9958 Eval Brd BOM |
| 標準包裝： | 1 |
| 系列： | AgileRF™ |
| 主要目的： | 計時，直接數字合成（DDS） |
| 嵌入式： | 否 |
| 已用 IC / 零件： | AD9958 |
| 主要屬性： | 10 位數模轉換器，32 位調節字寬 |
| 次要屬性： | 500MHz 2 通道圖形用戶界面 |
| 已供物品： | 板，線纜，軟件 |
| 產品目錄頁面： | 552 (CN2011-ZH PDF) |
| 相關產品： | AD9958BCPZ-REEL7-ND - IC DDS DUAL 10BIT DAC 56LFCSP AD9958BCPZ-ND - IC DDS DUAL 500MSPS DAC 56LFCSP |
當前第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁第25頁第26頁第27頁第28頁第29頁第30頁第31頁第32頁第33頁第34頁第35頁第36頁第37頁第38頁第39頁第40頁第41頁第42頁第43頁第44頁

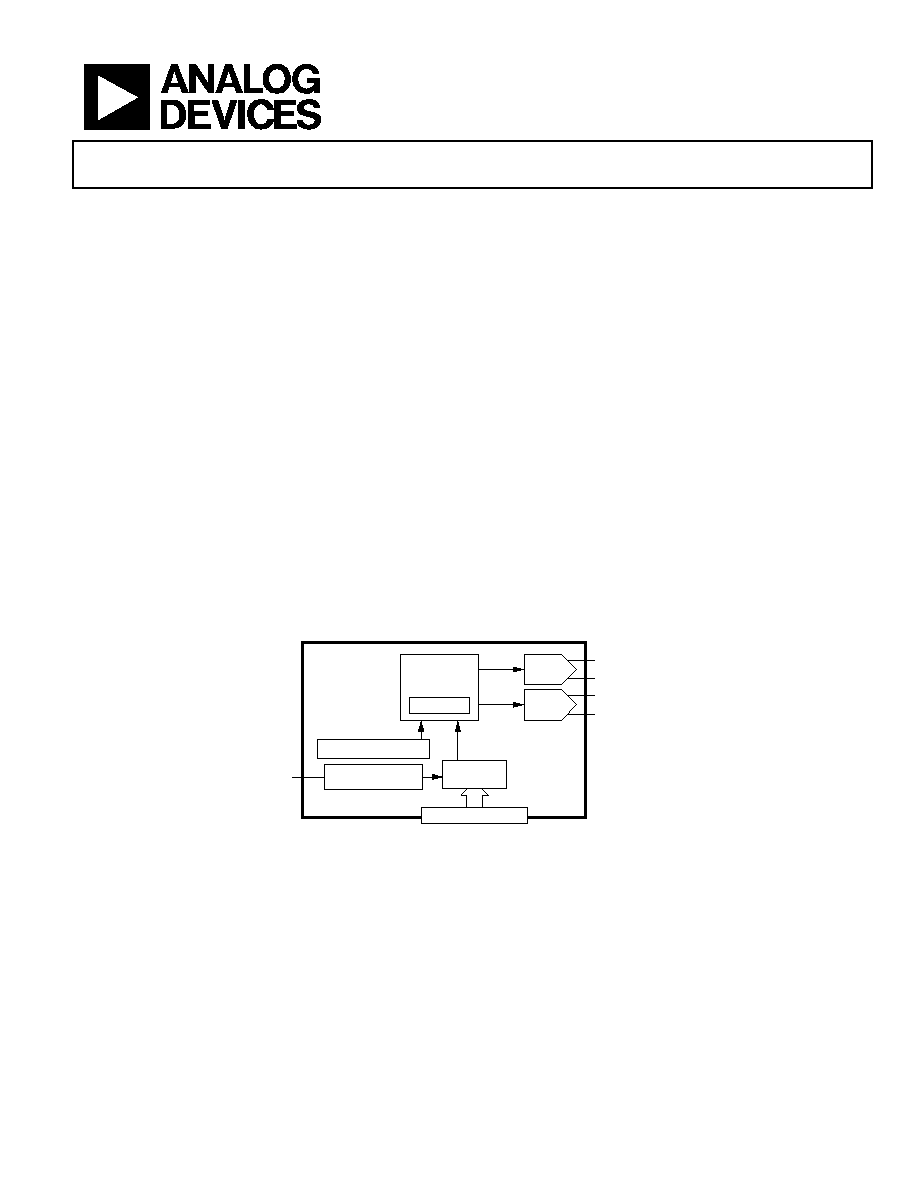

2-Channel, 500 MSPS DDS
with 10-Bit DACs
Data Sheet
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother
rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
2005–2013 Analog Devices, Inc. All rights reserved.
FEATURES
2 synchronized DDS channels @ 500 MSPS
Independent frequency/phase/amplitude control between
channels
Matched latencies for frequency/phase/amplitude changes
Excellent channel-to-channel isolation (>72 dB)
Linear frequency/phase/amplitude sweeping capability
Up to 16 levels of frequency/phase/amplitude modulation
(pin-selectable)
2 integrated 10-bit digital-to-analog converters (DACs)
Individually programmable DAC full-scale currents
0.12 Hz or better frequency tuning resolution
14-bit phase offset resolution
10-bit output amplitude scaling resolution
Serial I/O port interface (SPI) with 800 Mbps data throughput
Software-/hardware-controlled power-down
Dual supply operation (1.8 V DDS core/3.3 V serial I/O)
Multiple device synchronization
Selectable 4× to 20× REFCLK multiplier (PLL)
Selectable REFCLK crystal oscillator
56-lead LFCSP
APPLICATIONS
Agile local oscillators
Phased array radars/sonars
Instrumentation
Synchronized clocking
RF source for AOTF
Single-side band suppressed carriers
Quadrature communications
FUNCTIONAL BLOCK DIAGRAM
Figure 1.
RECONSTRUCTED
SINE WAVE
10-BIT
DAC
RECONSTRUCTED
SINE WAVE
10-BIT
DAC
(2)
500MSPS
DDS CORES
TIMING AND
CONTROL
USER INTERFACE
MODULATION CONTROL
REF CLOCK
INPUT CIRCUITRY
SYSTEM
CLOCK
SOURCE
AD9958
05252-
000
