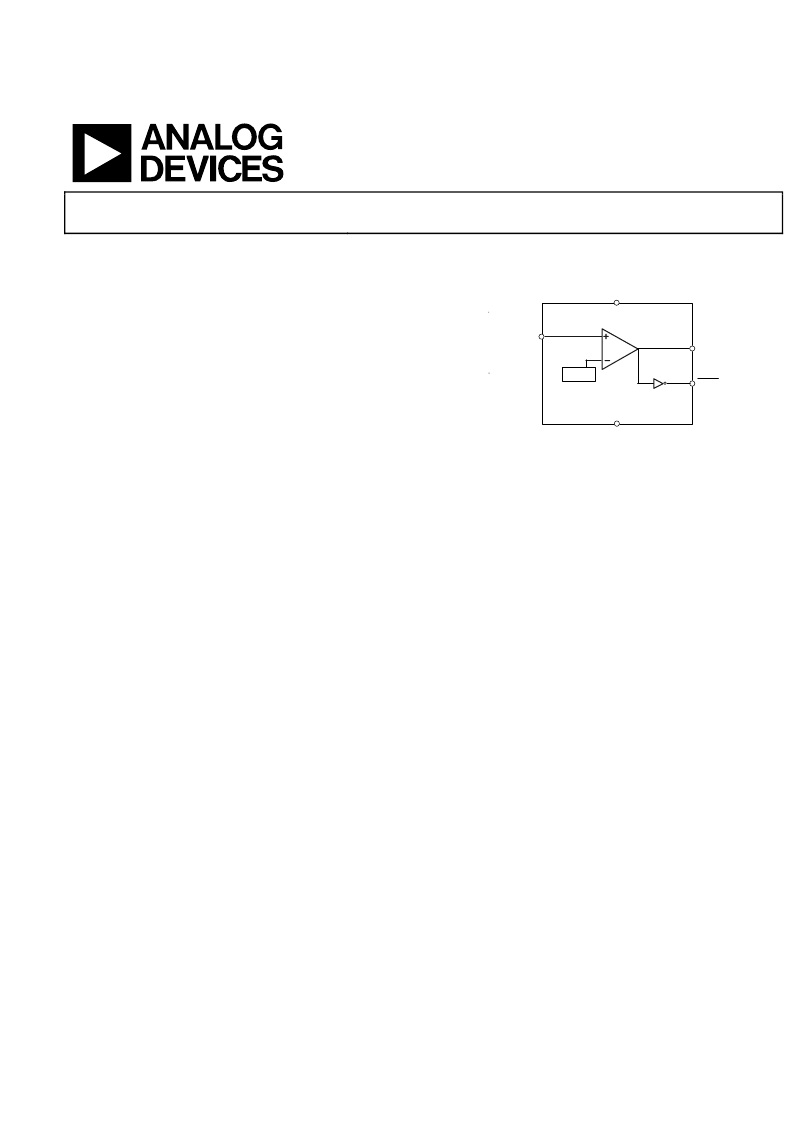

Single Comparator with 400mV Reference
and Dual Polarity Outputs
Preliminary Technical Data
ADCMP361
FEATURES
Low Quiescent Current: 6.5
μ
A Typ
Supply Range: 1.7V to 5.5V
400mV Reference ±0.8% Accuracy Over Temperature
Input Range Includes Ground
Internal Hysteresis: 6.5mV Typ
Low Input Bias Current: ±10nA Max
40mA Typical Output Sink Current
Supports Wired-AND Connections
Both inverting and noninverting outputs
Small SOT-23 Package
APPLICATIONS
Battery-Powered System Monitoring
Threshold Detectors
Relay Driving
Optoisolator Driving
Industrial Control Systems
Handheld Instruments
GENERAL DESCRIPTION
Rev. PrB
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
2006 Analog Devices, Inc. All rights reserved.
www.analog.com
The ADCMP361 is a single low power, low voltage comparator
with a 400mV reference in the 5-lead SOT-23 package.
Operating within a supply range of 1.7V to 5.5V, the device
only draw 6.5
μ
A typical, making it ideal for low voltage system
monitoring and portable applications. Hysteresis is included in
the comparators to insure stable output operation. The
comparator has only one input available externally, the other
input is connected internally to the reference. The comparator
has both an inverting and a noninverting output. The output
stage sinking capability guaranteed greater than 5mA over
temperature.
Available in commercial, industrial and automotive
temperature ranges.
FUNCTIONAL BLOCK DIAGRAM
IN
V
CC
OUT
ADCMP361
400mV
GND
OUT
Figure 1.
