| 型號： | ADCMP603BCPZ-WP |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | 運動控制電子 |
| 英文描述： | Rail-to-Rail, Very Fast, 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| 中文描述： | COMPARATOR, 5000 uV OFFSET-MAX, 5000 ns RESPONSE TIME, QCC12 |
| 封裝： | 3 X 3 MM, LEAD FREE, MO-220VEED-1, LFCSP-12 |
| 文件頁數： | 1/16頁 |
| 文件大小： | 267K |
| 代理商： | ADCMP603BCPZ-WP |
Rail-to-Rail, Very Fast, 2.5 V to 5.5 V,
Single-Supply TTL/CMOS Comparator
ADCMP603
FEATURES

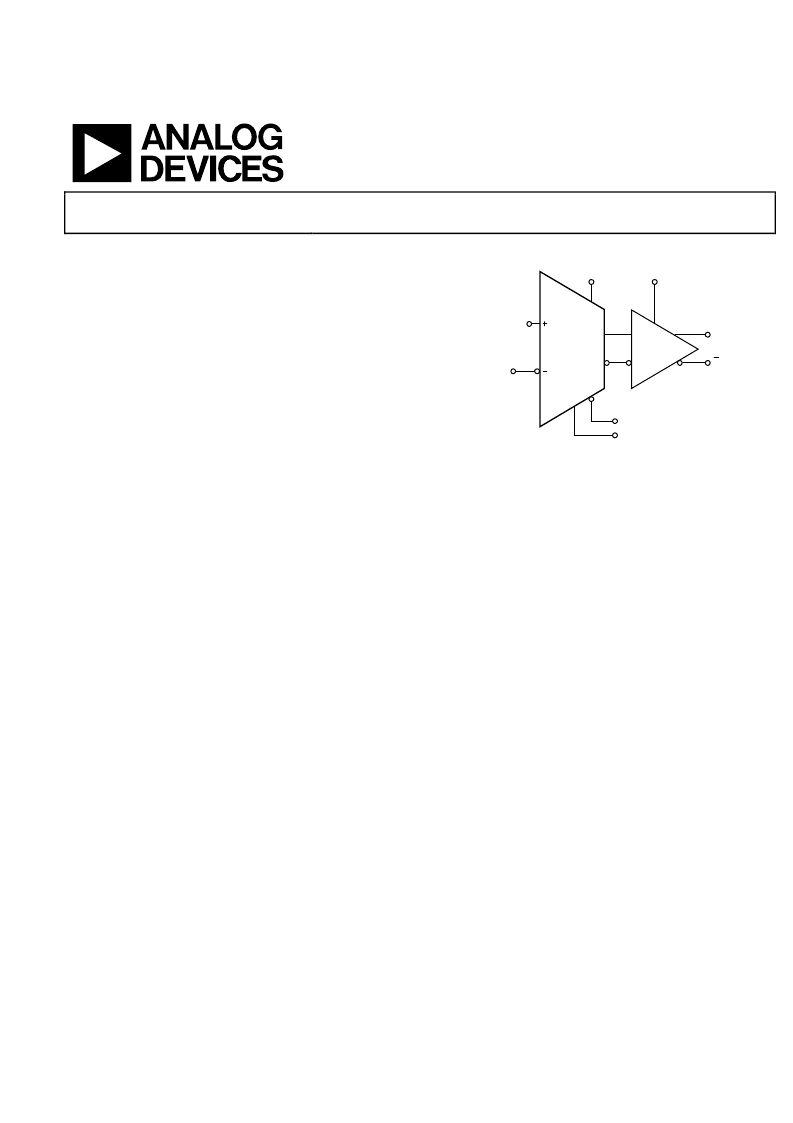

FUNCTIONAL BLOCK DIAGRAM
V
CCI
V
P
NONINVERTING
INPUT
V
N
INVERTING
INPUT
S
DN
INPUT
Q OUTPUT
Q OUTPUT
V
CCO
LE/HYS INPUT
0
ADCMP603
TTL
Fully specified rail to rail at V = 2.5 V to 5.5 V
Input common-mode voltage from 0.2 V to V + 0.2 V
Low glitch CMOS-/TTL-compatible output stage
Complementary outputs
3.5 ns propagation delay
12 mW at 3.3 V
Shutdown pin
Single-pin control for programmable hysteresis and latch
Power supply rejection > 50 dB
40°C to +125°C operation
CC
CC
APPLICATIONS
Figure 1.
High speed instrumentation
Clock and data signal restoration
Logic level shifting or translation
Pulse spectroscopy
High speed line receivers
Threshold detection
Peak and zero-crossing detectors
High speed trigger circuitry
Pulse-width modulators
Current-/voltage-controlled oscillators
Automatic test equipment (ATE)
GENERAL DESCRIPTION
The ADCMP603 is a very fast comparator fabricated on
XFCB2, an Analog Devices, Inc. proprietary process. This
comparator is exceptionally versatile and easy to use. Features
include an input range from V
EE
complementary TTL-/CMOS-compatible output drivers, latch
inputs with adjustable hysteresis and a shutdown input.
The device offers 3.5 ns propagation delay with 10 mV
overdrive on 4 mA typical supply current.
A flexible power supply scheme allows the device to operate
with a single +2.5 V positive supply and a 0.5 V to +2.8 V
input signal range up to a +5.5 V positive supply with a 0.5 V
to +5.8 V input signal range. Split input/output supplies with no
sequencing restrictions support a wide input signal range while
still allowing independent output swing control and power
savings.
The device passes 4.5 kV HBM ESD testing and the absolute
maximum ratings include current limits for all pins.
The complementary TTL-/CMOS-compatible output stage is
designed to drive up to 5 pF with full timing specs and to
degrade in a graceful and linear fashion as additional
capacitance is added. The comparator input stage offers robust
protection against large input overdrive, and the outputs do not
phase reverse when the valid input signal range is exceeded.
Latch and programmable hysteresis features are also provided
with a unique single-pin control option.
The ADCMP603 is available in a 12-lead LFCSP package.
0.5 V to V
CC
+ 0.2 V, low noise
Rev. 0
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
2006 Analog Devices, Inc. All rights reserved.
www.analog.com
