參數資料
| 型號： | ADD8710ARUZ-REEL |
| 廠商： | ANALOG DEVICES INC |
| 元件分類： | 運動控制電子 |
| 英文描述： | 10 - CHANNEL GAMMA BUFFER WITH V-COM DRIVER |
| 中文描述： | BUFFER AMPLIFIER, PDSO28 |
| 封裝： | ROHS COMPLIANT, MO-153AE, TSSOP-28 |
| 文件頁數： | 1/12頁 |
| 文件大?。?/td> | 248K |
| 代理商： | ADD8710ARUZ-REEL |

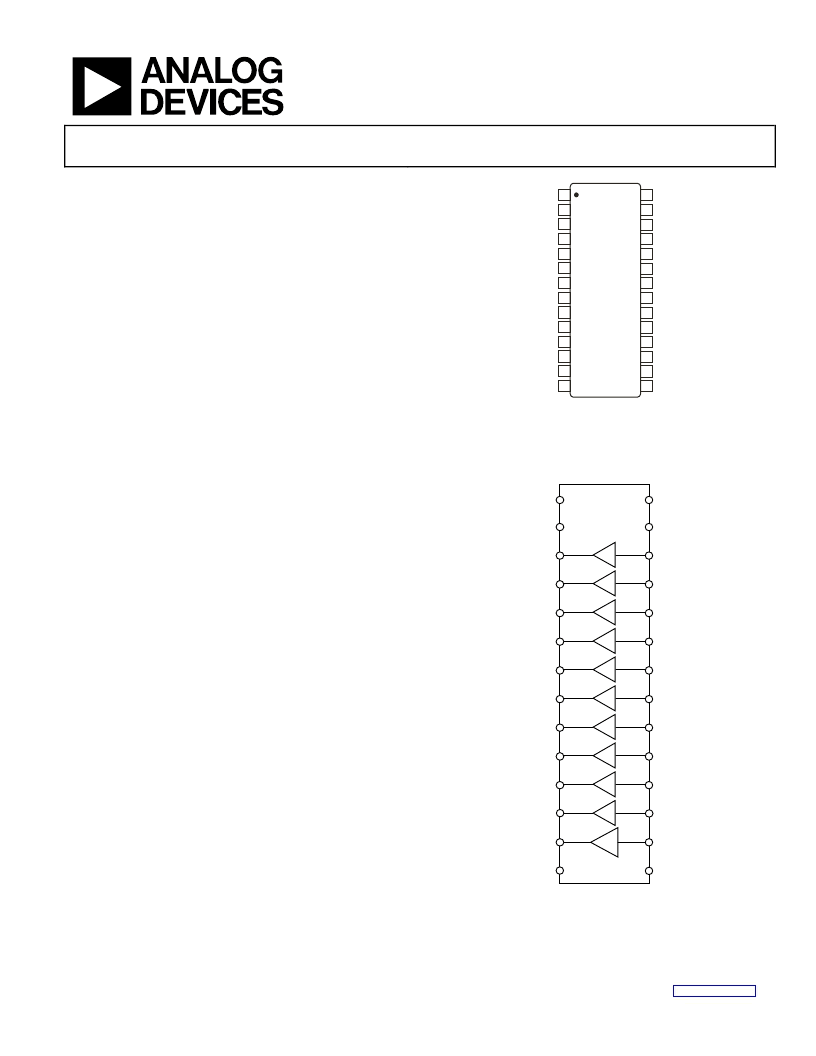

10-Channel Gamma Buffer
with V
COM
Driver
ADD8710
FEATURES
Single-supply operation: 4.5 V to 16.5 V
Upper/lower buffers swing to V
S
/GND
Gamma continuous output current: >10 mA
V
COM
peak output current: 250 mA
Offset voltage: 12 mV
Slew rate: 8 V/μs
Unity gain stable with large capacitive loads
Supply current: 700 μA per amplifier
Compact 28-lead TSSOP
Pb-free package
Drop-in replacement for BUF11702
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.326.8703
APPLICATIONS TFT LCD monitor panels
TFT LCD notebook panels
GENERAL DESCRIPTION
The ADD8710 is a low cost, 10-channel gamma buffer with a
V
COM
driver that operates from a single supply. The part is
designed for high resolution TFT LCD panels, and is built on an
advanced, high voltage CBCMOS process.
The gamma buffers have a high slew rate, minimum 10 mA
output current, and a high capacitive load drive capability. The
V
COM
buffer is capable of delivering 250 mA of peak current,
and can also drive large capacitive loads. The ADD8710 offers
wide supply range and offset voltages below 12 mV.
The ADD8710 is specified over the
40°C to +85°C
temperature range and is available in a Pb-free 28-lead
TSSOP package.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
V
S
NC
GND
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
OUT10
OUTCOM
28
27
26
25
24
23
22
21
20
19
18
17
16
15
ADD8710
GND
NC
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
IN9
IN10
INCOM
V
S
0
NC = NO CONNECT
Figure 1. 28-Lead TSSOP (RU Suffix)
FUNCTIONAL BLOCK DIAGRAM
1
ADD8710
V
S
GND
NC
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
OUT10
OUTCOM
GND
NC
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
IN9
IN10
INCOM
V
S
0
2
3
4
5
6
7
8
9
10
V
COM
Figure 2.
