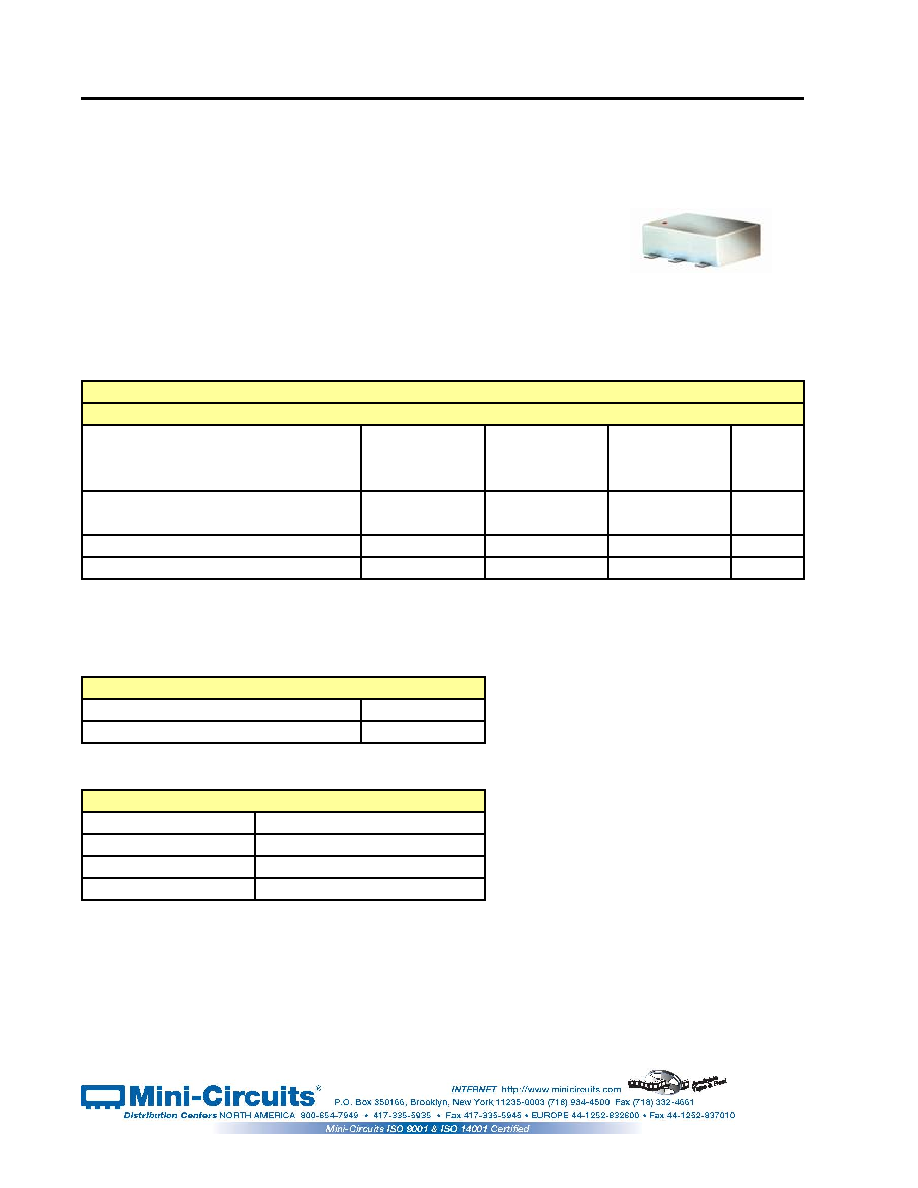

Frequency Mixer
ADE-ED6969/1
Parameter
Min.
Typ.
Max.
Units
Frequency
LO (fL to fU)
300
1300
MHz
RF (fL to fU)
300
1300
MHz
IF
0
750
MHz
Conversion Loss
mid band
6.1
dB
Total Range
6.4
dB
LO-RF Isolation
36
dB
LO-IF Isolation
39
dB
-40°C to 85°C
-55°C to 100°C
LO
RF
IF
GROUND
MAXIMUM RATINGS
Operating Temperature
Storage Temperature
PIN CONNECTIONS
6
3
2
1, 4, 5
ELECTRICAL SPECIFICATIONS 50 @ +25°C
Note: mid band = [2fL to fU/2]
Engineering Development Model
Level 7 (LO Power +7 dBm)
Important Note
This model has been designed, built and tested in our engineering
department. Performance data represents model capability.
At present it is a non-catalog model. On request, we can supply a
final specification sheet, part number and price/delivery information.
Please click "Back", and then click "Contact Us" for Applications support.
CASE STYLE : CD542
REV. X1
ADE-ED6969/1
060619
Page 1 of 1
