ADS -929

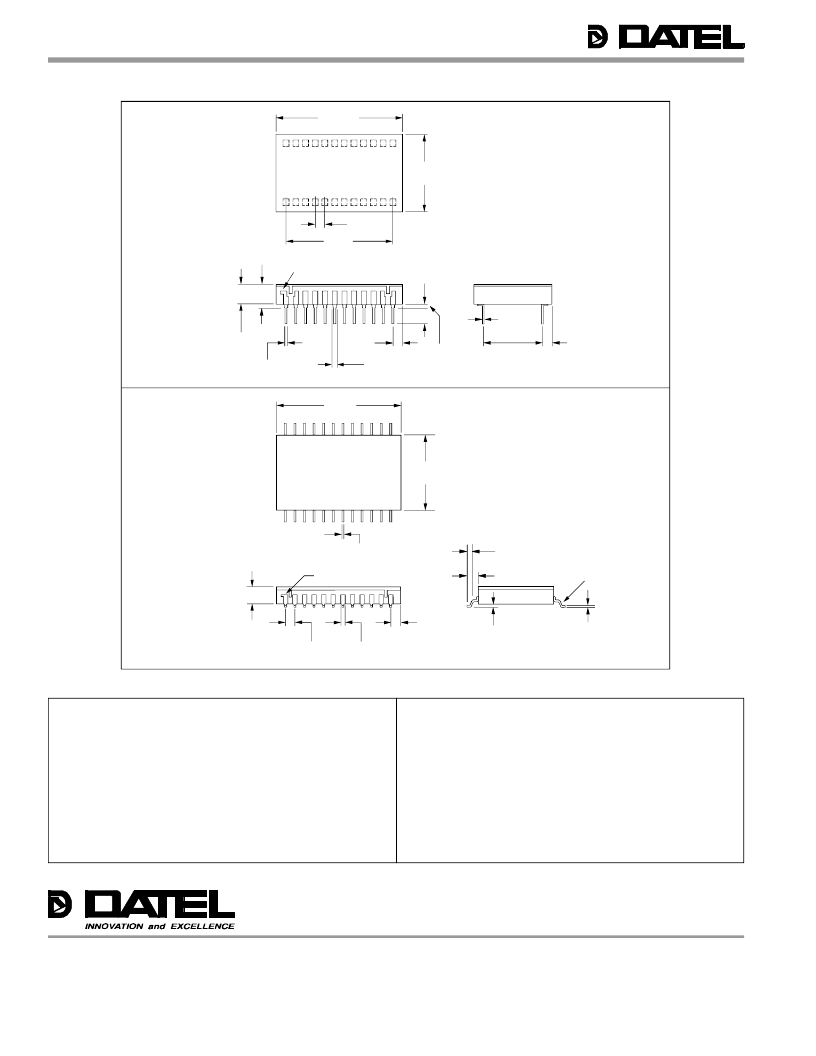

MECHANICAL DIMENSIONS
INCHES (mm)
ORDERING INFORMATION
MODEL
NUMBER
ADS-929MC
ADS-929MM
ADS-929/883
ADS-929GC
ADS-929GM
ADS-919MC
ADS-919MM
ADS-919GC
ADS-919GM
OPERATING
TEMP. RANGE
0 to +70°C
–55 to +125°C
–55 to +125°C
0 to +70°C
–55 to +125°C
0 to +70°C
–55 to +125°C
0 to +70°C
–55 to +125°C
ANALOG
INPUT
Bipolar (±5V)
Bipolar (±5V)
Bipolar (±5V)
Bipolar (±5V)
Bipolar (±5V)
Unipolar (0 to +10V)*
Unipolar (0 to +10V)*
Unipolar (0 to +10V)*
Unipolar (0 to +10V)*
0.200 MAX.
(5.080)
0.235 MAX.
(5.969)
0.600 ±0.010
(15.240)
0.80 MAX.
(20.32)
0.100 TYP.
(2.540)
0.100
(2.540)
0.018 ±0.002
(0.457)
0.100
(2.540)
0.040
(1.016)
1.31 MAX.
(33.27)
1
12
13
24
1.100
(27.940)
0.190 MAX.
(4.826)
0.010
(0.254)
+0.002
–0.001
SEATING
PLANE
0.025
(0.635)
Dimension Tolerances
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
Lead Material:
Kovar alloy
Lead Finish:
50 microinches (minimum) gold plating
over 100 microinches (nominal) nickel plating
PIN 1 INDEX
ACCESSORIES
ADS-B919/929
HS-24
Evaluation Board (without ADS-929)
Heat Sinks for all ADS-919/929 DDIP models
Receptacles for PC board mounting can be ordered through
AMP Inc. Part #3-331272-8 (Component Lead Socket), 24 required.
For MIL-STD-883 product specifications, contact DATEL.
* For information, see ADS-919 data sheet.
0.80 MAX.
(20.32)
0.015
(0.381)
MAX. radius
for any pin
1.31 MAX.
(33.02)
0.100 TYP.
(2.540)
0.100
(2.540)
0.190 MAX.
(4.826)
0.040
(1.016)
0.020 TYP.
(0.508)
(1.524)
0.020
(0.508)
24
13
12
1
PIN 1
INDEX
0.130 TYP.
(3.302)
Dimension Tolerances
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
Lead Material:
Kovar alloy
Lead Finish:
50 microinches (minimum) gold plating
over 100 microinches (nominal) nickel plating
0.060 TYP.
0.010 TYP.
(0.254)
24-Pin DDIP
Versions
ADS-929MC
ADS-929MM
ADS-929/883
ADS-919MC
ADS-919MM
24-Pin
Surface Mount
Versions
ADS-929GC
ADS-929GM
ADS-919GC
ADS-919GM
