| 型號： | ADS953 |
| 廠商： | Electronic Theatre Controls, Inc. |
| 元件分類： | 串行ADC |
| 英文描述： | 18-Bit, 1MHz, Low-Distortion Sampling A/D Converters |
| 中文描述： | 18位，1MHz的，低失真的采樣A / D轉換器 |
| 文件頁數： | 6/6頁 |
| 文件大小： | 141K |
| 代理商： | ADS953 |
DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356
Internet: www.datel.com E-mail: sales@datel.com
DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do
not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
A SUBSIDIARY OF C&D TECHNOLOGIES
DATEL (UK) LTD.
Tadley, England Tel: (01256)-880444
Internet: www.datel-europe.com E-mail: datel.ltd@datel.com
DATEL S.A.R.L.
Montigny Le Bretonneux, France Tel: 01-34-60-01-01
Internet: www.datel-europe.com E-mail: datel.sarl@datel.com
DATEL GmbH
München, Germany Tel: 89-544334-0
Internet: www.datel-europe.com E-mail: datel.gmbh@datel.com
DATEL KK
Tokyo, Japan Tel: 3-3779-1031, Osaka Tel: 6-6354-2025
Internet: www.datel-co.jp E-mail: salestko@datel.co.jp, salesosa@datel.co.jp
DATEL China
Shanghai, China Tel: 011-86-51317131
E-mail: davidx@datel.com
ISO 9001 REGISTERED
ADS-953
DS-0541 3/05

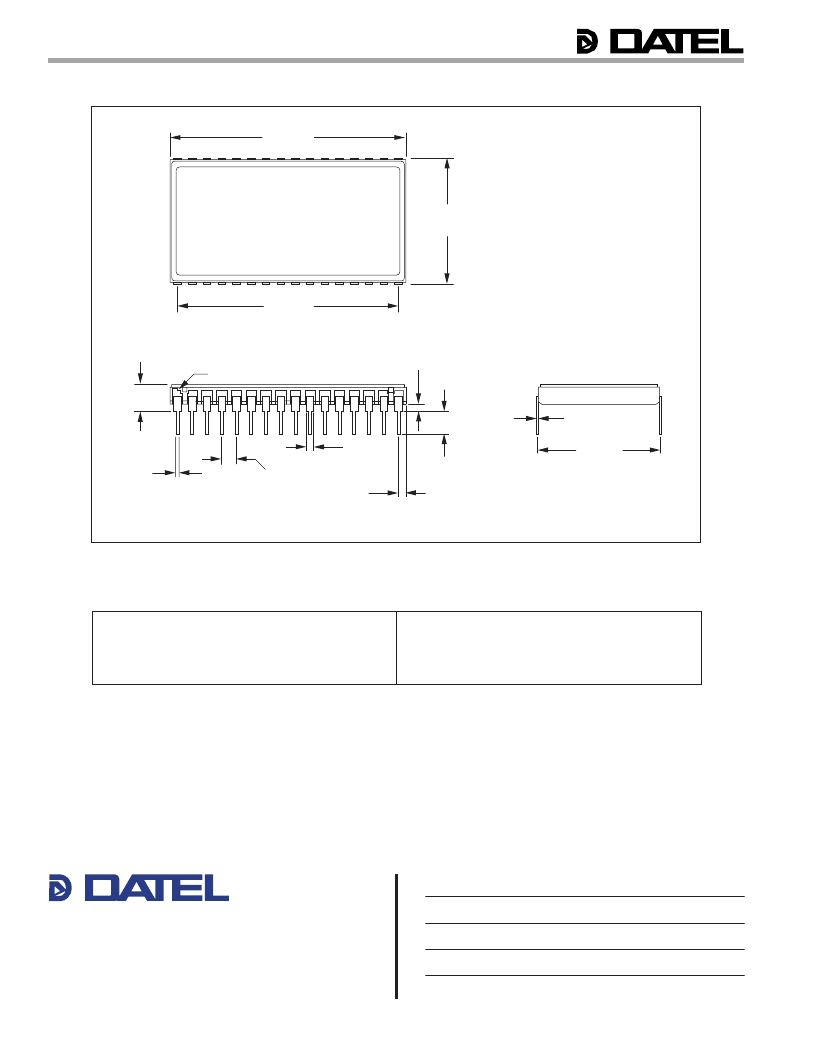

MECHANICAL DIMENSIONS
INCHES (mm)
ORDERING INFORMATION
OPERATING 32-PIN
MODEL NUMBER TEMP. RANGE PACKAGE
ADS-953MC
0 to +70°C TDIP
ADS-953ME
–40 to +110°C TDIP
ACCESSORIES
ADS-B951 *
Evaluation Board (without ADS-951)
Receptacles for PC board mounting can be ordered through AMP, Inc., Part # 3-331272-8
(Component Lead Socket), 32 required. For availability of MIL-STD-883 product, contact DATEL.
1.62 MAX.
(41.15)
0.92 MAX.
(23.37)
0.018 TYP.
(0.46)
1.50 TYP
(38.10)
0.100 TYP.
(2.54)
0.05 TYP.
(1.27)
0.175 TYP
(4.45)
0.05 TYP.
(1.27)
0.220 TYP.
(6.86)
0.90 TYP.
(22.86)
0.010 TYP.
(0.254)
Dimension Tolerances
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
Lead Material:
Kovar Alloy
Lead Finish:
50 microinches (minimum)
gold plating over 100 microinches
(nominal) nickel plating
PIN 1 INDEX
0.05 TYP.
(1.27)
SEATING PLANE
* NOTE
The ADS-951 evalution board is used for the AD-953, as the ADS-951 and ADS-953, share a common pinout
