REV. 0
–16–
ADT7460
Temperature Measurement Registers
Reg. 0x25
Remote 1 Temperature
= 0x80 default
Reg. 0x26
Local Temperature
= 0x80 default
Reg. 0x27
Remote 2 Temperature
= 0x80 default
Reg. 0x77
Extended Resolution 2
= 0x00 default
<7:6> TDM2
= Remote 2 Temperature LSBs
<5:4> LTMP
= Local Temperature LSBs
<3:2> TDM1
= Remote 1 Temperature LSBs
Temperature Measurement Limit Registers
Associated with each temperature measurement channel are
high and low limit registers. Exceeding the programmed high or
low limit causes the appropriate Status bit to be set. Exceeding
either limit can also generate
SMBALERT
interrupts.
Reg. 0x4E
Remote 1 Temp Low Limit
= 0x81 default
Reg. 0x4F
Remote 1 Temp High Limit
= 0x7F default
Reg. 0x50
Local Temp Low Limit
= 0x81 default
Reg. 0x51
Local Temp High Limit
= 0x7F default
Reg. 0x52
Remote 2 Temp Low Limit
= 0x81 default
Reg. 0x53
Remote 2 Temp High Limit
= 0x7F default
Reading Temperature from the ADT7460
It is important to note that temperature can be read from the
ADT7460 as an 8-bit value (with 1
°
C resolution), or as a 10-bit
value (with 0.25
°
C resolution). If only 1
°
C resolution is
required, the temperature readings can be read back at any time
and in no particular order.
If the 10-bit measurement is required, this involves a 2-register
read for each measurement. The Extended Resolution Register
(Reg. 0x77) should be read first. This causes all temperature
reading registers to be frozen until all temperature reading regis-
ters have been read from. This prevents an MSB reading from
being updated while its two LSBs are being read, and vice versa.
ADDITIONAL ADC FUNCTIONS FOR TEMPERATURE
MEASUREMENT
A number of other functions are available on the ADT7460 to
offer the systems designer increased flexibility:
Turn Off Averaging
For each temperature measurement read from a value register,
16 readings have actually been made internally and the results
averaged before being placed into the value register. Some-
times it may be necessary to take a very fast measurement,
e.g., of CPU temperature. Setting Bit 4 of Configuration Reg-
ister 2 (Reg. 0x73) turns averaging off. This takes a reading
every 15.5 ms. Each remote temperature measurement takes 4 ms
and the local temperature measurement takes 1.4 ms.
Single-Channel ADC Conversions
Setting Bit 6 of Configuration Register 2 (Reg. 0x73) places the
ADT7460 into single-channel ADC Conversion Mode. In this
mode, the ADT7460 can be made to read a single temperature
channel only. The appropriate ADC channel is selected by writing
to Bits <7:5> of TACH1 Minimum High Byte Register (0x55).
Bits <7:5> Reg 0x55
101
110
111
Channel Selected
Remote 1 Temp
Local Temp
Remote 2 Temp
Configuration Register 2 (Reg. 0x73)
<4> = 1
Averaging Off
<6> = 1
Single-Channel Convert Mode
TACH1 Minimum High Byte (Reg. 0x55)
<7:5>
Selects ADC Channel for Single-Channel Convert Mode
Overtemperature Events
Overtemperature events on any of the temperature channels can
be detected and dealt with automatically in Automatic Fan
Speed Control Mode. Registers 0x6A–0x6C
are the
THERM
limits. When a temperature exceeds its
THERM
limit, all fans
will run at 100% duty cycle. The fans will stay running at 100%
until the temperature drops below
THERM
– Hysteresis (this
can be disabled by setting the Boost bit in Configuration
Register 3, Bit 2, Register 0x78). The hysteresis value for that
THERM
limit is the value programmed into Registers 0x6D,
0x6E (Hysteresis registers). The default hysteresis value is 4
°
C.
FANS
THERM
LIMIT
TEMP
100%
HYSTERESIS = ( C)

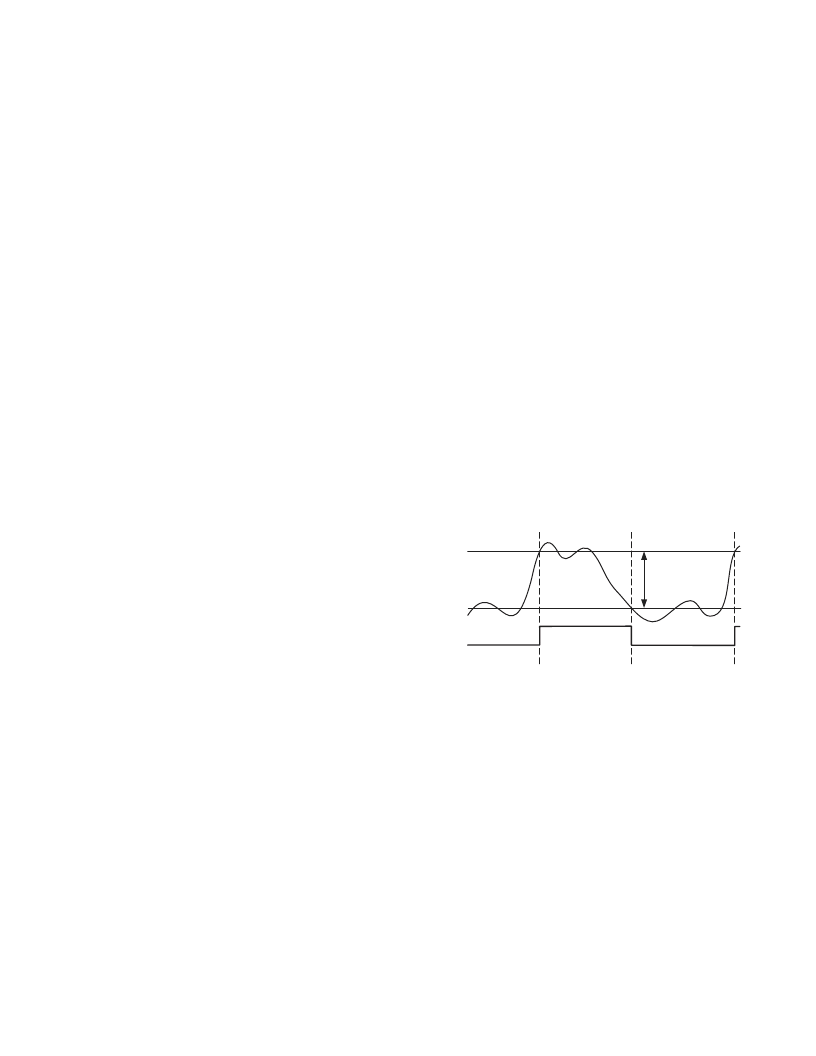

Figure 16.
THERM
Limit Operation
