| 型號： | AP9412AGP |
| 廠商： | ADVANCED POWER ELECTRONICS CORP |
| 元件分類： | JFETs |
| 英文描述： | 68 A, 30 V, 0.006 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB |
| 封裝： | ROHS COMPLIANT, TO-220, 3 PIN |
| 文件頁數： | 1/4頁 |
| 文件大小： | 61K |
| 代理商： | AP9412AGP |
Advanced Power
N-CHANNEL ENHANCEMENT MODE
Electronics Corp.
POWER MOSFET
▼ Lower Gate Charge
BVDSS
30V
▼ Simple Drive Requirement
RDS(ON)
6mΩ
▼ Fast Switching Characteristic
ID
68A
Description
Absolute Maximum Ratings
Symbol
Units
VDS
V
VGS
V
ID@TC=25℃
A
ID@TC=100℃
A
IDM
A
PD@TC=25℃
W
TSTG
℃
TJ
℃
Symbol
Value
Units
Rthj-c
Maximum Thermal Resistance, Junction-case
2.8
℃/W
Rthj-a
Maximum Thermal Resistance, Junction-ambient
62
℃/W
Data and specifications subject to change without notice

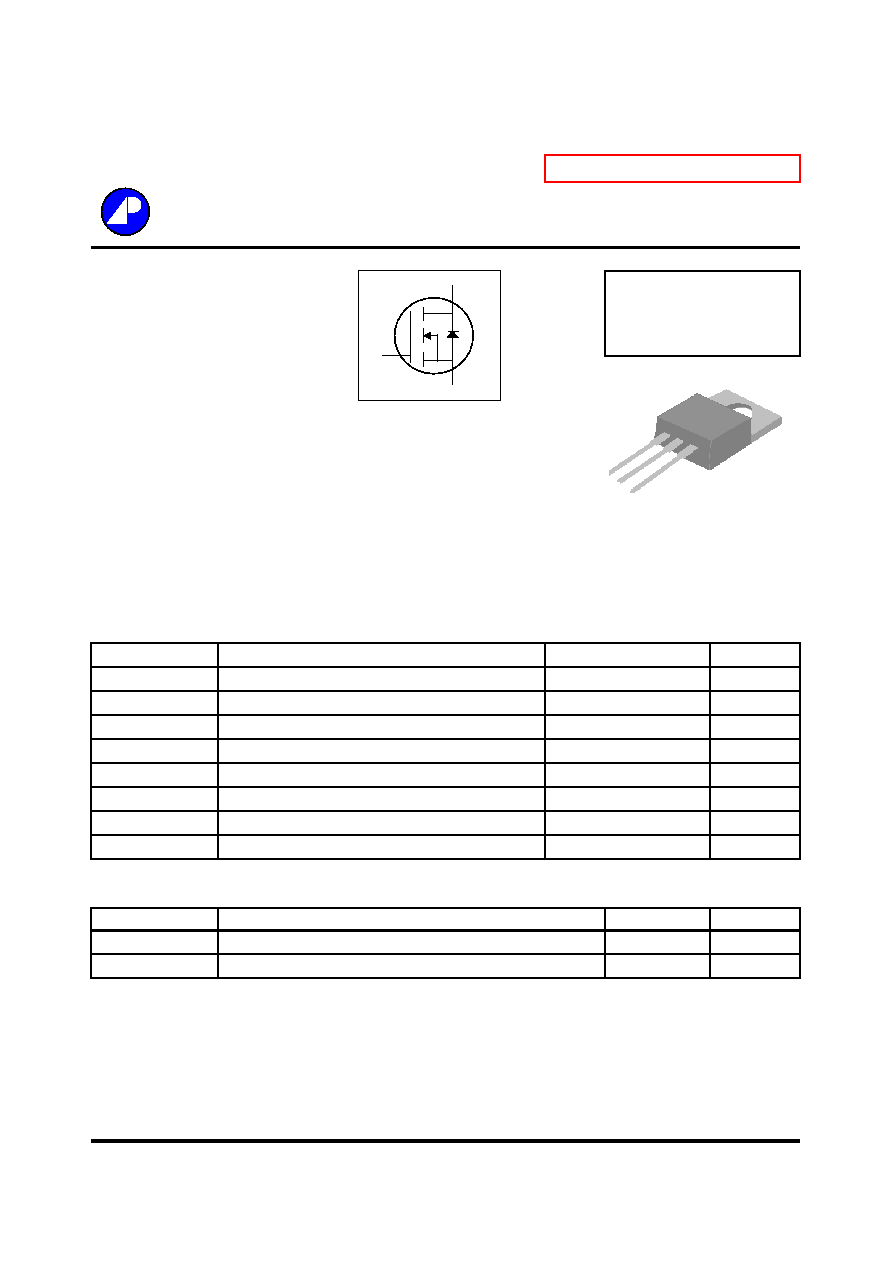

AP9412AGP
RoHS-compliant Product
Parameter
Rating
Drain-Source Voltage
30
Gate-Source Voltage
±20
Continuous Drain Current, VGS @ 10V
68
Operating Junction Temperature Range
-55 to 150
Continuous Drain Current, VGS @ 10V
43
Pulsed Drain Current
1
250
Storage Temperature Range
Total Power Dissipation
44.6
-55 to 150
200805141
Thermal Data
Parameter
1
G
D
S
Advanced Power MOSFETs from APEC provide the designer with
the best combination of fast switching, ruggedized device design,
low on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
power applications and suited for low voltage applications such as
DC/DC converters.
G
D
S
TO-220(P)
