參數資料
| 型號： | AP9962AGP |
| 廠商： | ADVANCED POWER ELECTRONICS CORP |
| 元件分類： | JFETs |
| 英文描述： | 32 A, 40 V, 0.02 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB |
| 封裝： | ROHS COMPLIANT, TO-220, 3 PIN |
| 文件頁數： | 1/5頁 |
| 文件大小： | 143K |
| 代理商： | AP9962AGP |

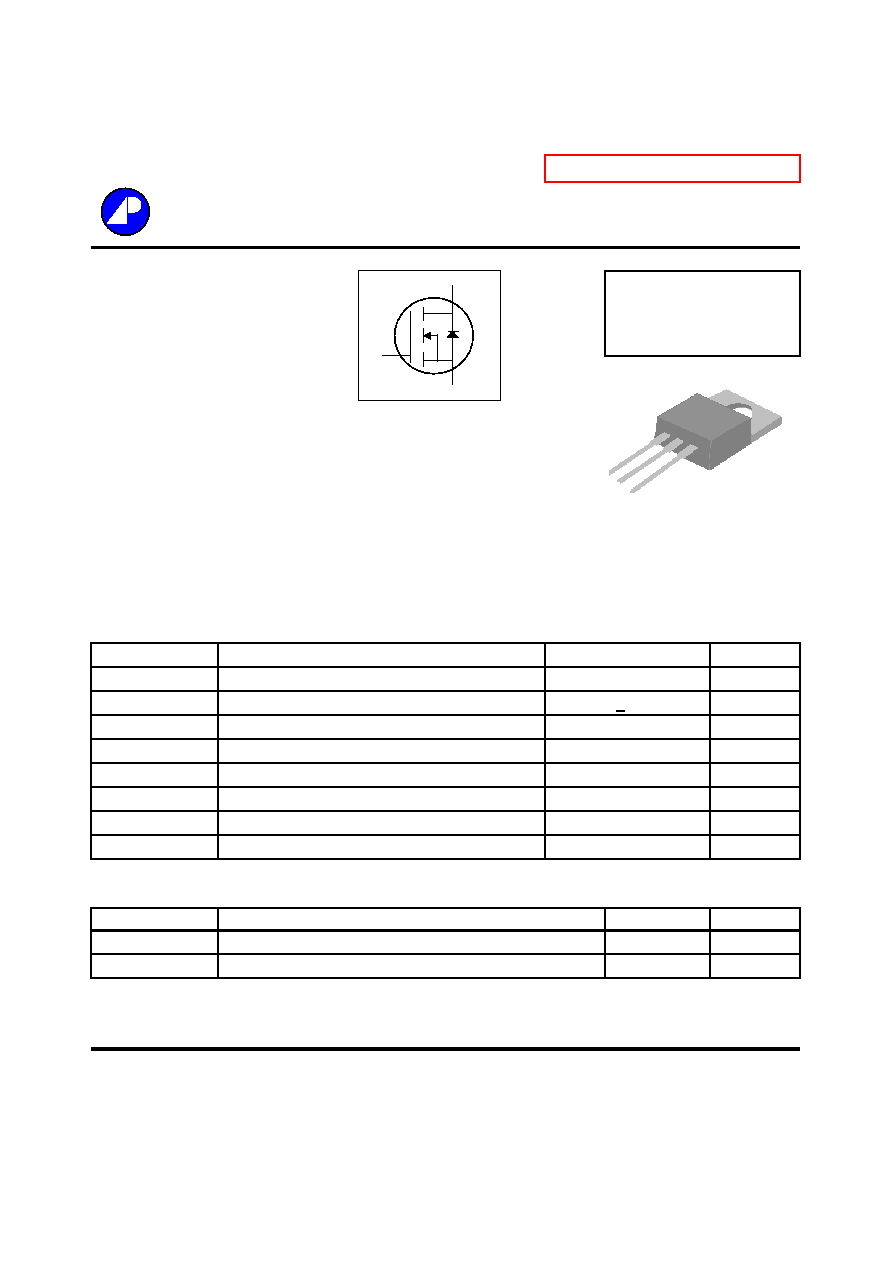

Advanced Power
N-CHANNEL ENHANCEMENT MODE
Electronics Corp.
POWER MOSFET
▼ Lower Gate Charge
BVDSS
40V
▼ Simple Drive Requirement
RDS(ON)
20mΩ
▼ Fast Switching Characteristic
ID
32A
Description
Absolute Maximum Ratings
Symbol
Units
VDS
V
VGS
V
ID@TC=25℃
A
ID@TC=100℃
A
IDM
A
PD@TC=25℃
W
TSTG
℃
TJ
℃
Symbol
Value
Units
Rthj-c
Maximum Thermal Resistance, Junction-case
4.5
℃
/W
Rthj-a
Maximum Thermal Resistance, Junction-ambient
62
℃
/W
Data and specifications subject to change without notice
200810282
Thermal Data
Parameter
1
Operating Junction Temperature Range
-55 to 150
Continuous Drain Current, VGS @ 10V
20
Pulsed Drain Current
1
120
Storage Temperature Range
Total Power Dissipation
27.8
-55 to 150
Gate-Source Voltage
+20
Continuous Drain Current, VGS @ 10V
32
Parameter
Rating
Drain-Source Voltage
40
AP9962AGP
RoHS-compliant Product
G
D
S
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220 package is widely preferred for commercial-industrial
power applications and suited for low voltage applications such as
DC/DC converters.
G
D
S
TO-220(P)
