- 您現在的位置：買賣IC網 > Datasheet目錄9 > APHCM2012CGCK-F01 (Kingbright Corp)LED 2X1.25MM LOPRO 570NM GRN SMD Datasheet資料下載
參數資料
| 型號： | APHCM2012CGCK-F01 |
| 廠商： | Kingbright Corp |
| 文件頁數： | 5/5頁 |
| 文件大小： | 229K |
| 描述： | LED 2X1.25MM LOPRO 570NM GRN SMD |
| 產品目錄繪圖： | APHCM2012 Series Top APHCM2012 Series Side APHCM2012 Series |
| 標準包裝： | 1 |
| 顏色： | 綠 |
| Millicandela 等級： | 40mcd |
| 正向電壓： | 2.1V |
| 電流 - 測試： | 20mA |
| 波長 - 主： | 570nm |
| 波長 - 峰值： | 574nm |
| 視角： | 110° |
| 透鏡類型： | 透明 |
| 透鏡樣式/尺寸： | 矩形，帶平頂，1.3mm x 1.25mm |
| 封裝/外殼： | 0805（2012 公制） |
| 尺寸/尺寸： | 2.00mm L x 1.25mm W |
| 高度： | 0.40mm |
| 安裝類型： | 表面貼裝 |
| 包裝： | 標準包裝 |
| 產品目錄頁面： | 2889 (CN2011-ZH PDF) |
| 其它名稱： | 754-1094-6 |
SPEC NO: DSAF1341 REV NO: V.6B DATE: DEC/05/2013 PAGE: 5 OF 5
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Q.M.Chen ERP: 1203003839
Terms and conditions for the usage of this document
1.The information included in this document reflects representative usage scenarios and is intended
for technical reference only.
2.The part number, type, and specifications mentioned in this document are subject to future change
and improvement without notice. Before production usage customer should refer to the latest
datasheet for the updated specifications.
3.When using the products referenced in this document, please make sure the product is being
operated within the environmental and electrical limits specified in the datasheet. If customer usage
exceeds the specified limits, Kingbright will not be responsible for any subsequent issues.
4.The information in this document applies to typical usage in consumer electronics applications.
If customer's application has special reliability requirements or have life-threatening liabilities,
such as automotive or medical usage, please consult with Kingbright representative for further
assistance.
5.The contents and information of this document may not be reproduced or re-transmitted without
permission by Kingbright.
6.All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes

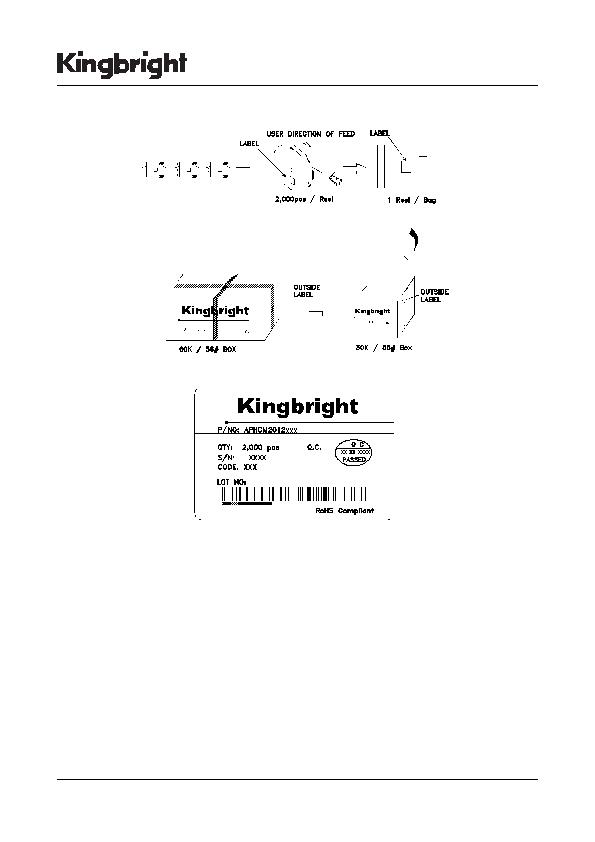

PACKING & LABEL SPECIFICATIONS APHCM2012CGCK-F01
