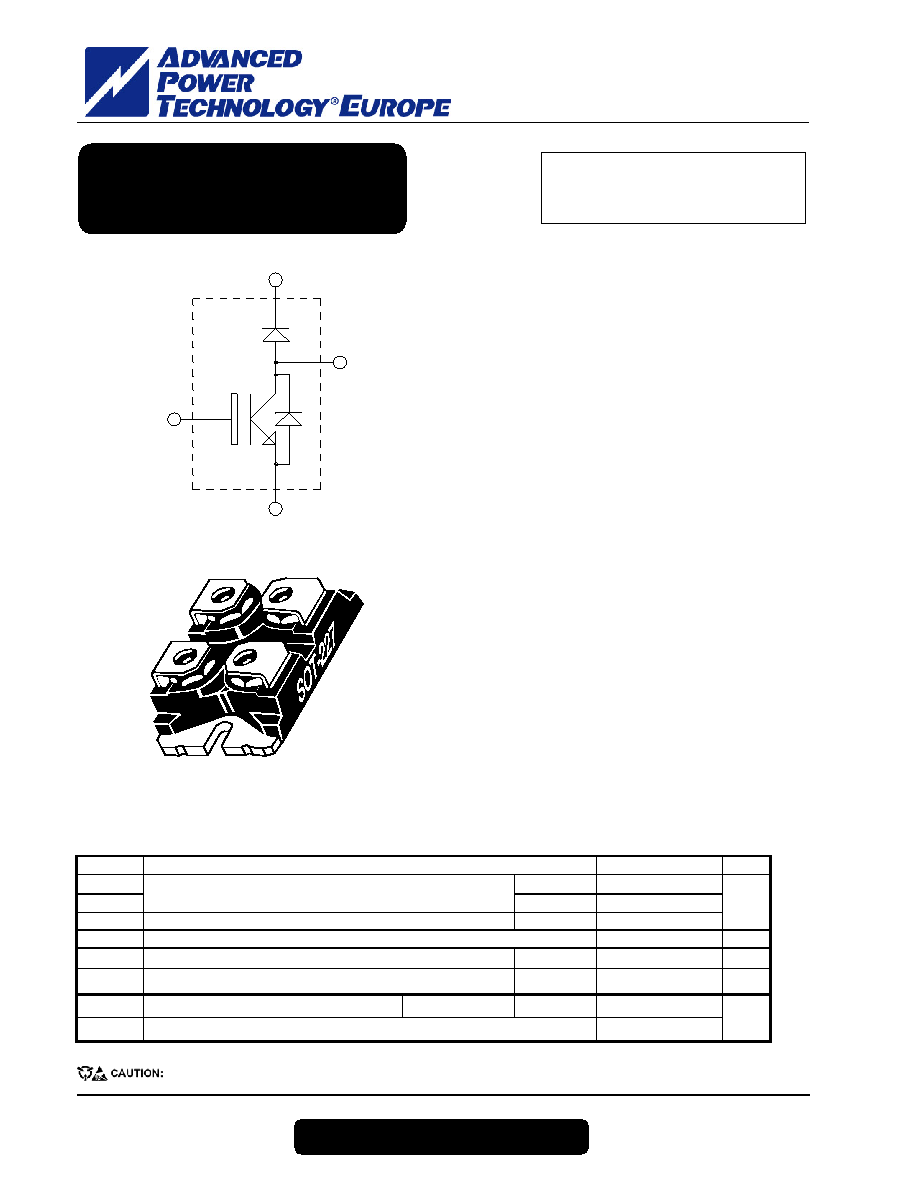

APT40GU60JU2
A
PT
40G
U
60J
U
2–
R
ev
0
A
pr
il,
2004
APT website – http://www.advancedpower.com
1- 9
ISOTOP
Absolute maximum ratings
Symbol
Parameter
Max ratings
Unit
VCES
Collector - Emitter Breakdown Voltage
600
V
IC1
TC = 25°C
86
IC2
Continuous Collector Current
TC = 110°C
40
ICM
Pulsed Collector Current
TC = 25°C
160
A
VGE
Gate – Emitter Voltage
±20
V
PD
Maximum Power Dissipation
TC = 25°C
284
W
SSOA
Switching Safe Operating Area
TJ =150°C
160A @ 600V
IFAV
Maximum Average Forward Current
Duty cycle=0.5
TC = 80°C
30
IFRMS
RMS Forward Current (Square wave, 50% duty)
39
A
These Devices are sensitive to Electrostatic Discharge. Proper Handing Procedures Should Be Followed.
K
E
C
G
VCES = 600V
IC = 40A @ Tc = 110°C
Application
AC and DC motor control
Switched Mode Power Supplies
Power Factor Correction
Brake switch
Features
Power MOS 7 Punch Through (PT) IGBT
-
Low conduction loss
-
Ultra fast tail current shutoff
-
Low gate charge
-
Switching frequency capability in the 200kHz
range
-
Soft recovery parallel diodes
-
Low diode VF
ISOTOP Package (SOT-227)
Very low stray inductance
High level of integration
Benefits
Outstanding performance at high frequency operation
Stable temperature behavior
Very rugged
Direct mounting to heatsink (isolated package)
Low junction to case thermal resistance
ISOTOP Boost chopper
PT IGBT
K
C
G
E
