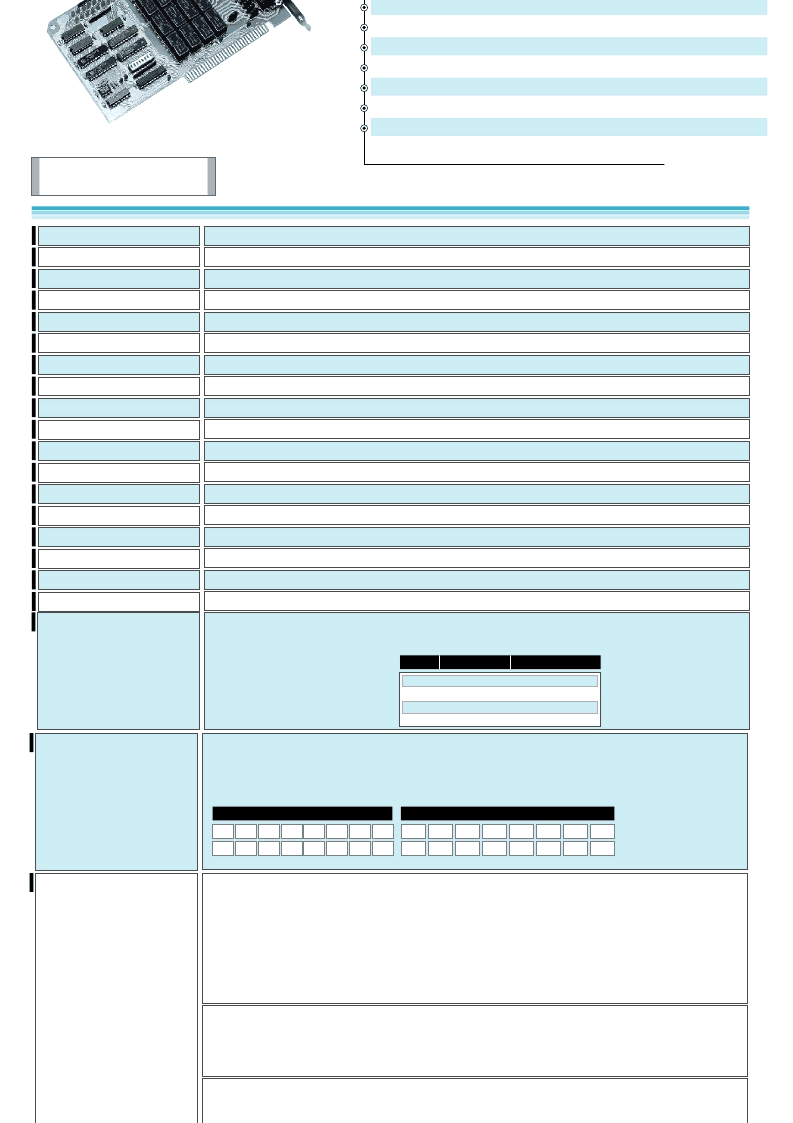

Specifications
Output status read back
16 LED indicator for each channel
Connector: 37-pin D-type (ext. AR-B9007)
Isolation: 2100VDC isolation acrosser open contacts
1400VDC isolation between coil and contacts
For IBM PC/XT/AT personal computers and compatible
Dimensions: 175mm x 108mm
General
The registers of the AR-B2103 are located as follows:
Base +0 Relay Port 1(write) Relay Port 1(read)
Base +1 Relay Port 2(write) Relay Port 2(read)
Base +2 Not Used Not Used
Base +3 Not Used Not Used
Number of Outputs
Max Switching Power
Max Switching Current
Contact Rating
Bounce Time
12 Form A (SPST) and 4 Form C (SPDT) relays
Resistive load - AC 250VA, DC 120W, Inductive load - AC 125VA, DC 60W
4A
Resistive load - AC 125V, 1.0A or DC 30V, 3A, Inductive load - AC 125V, 0.6A or DC 30V, 2A
100 milli ohms maximum (Initial value)
8mS maximum at the rated voltage
8mS maximum at the rated voltage
8mS maximum
100 million. (Ref. 10VDC, 10ma)
140Vrms, 180VDC
0.2W
16 LED
Max Switching Voltage
250VAC, 220VDC
Contact Resistance
Release Time
Operate Time
Isolation
Contact and coil - 1500Vrms, 2100VDC, Contact to contact - 1000Vrms, 1400VDC
Life Expectancy
Varistor Voltage
Varistor power
Active Indicators
I/O Address
Applications
Power Consumption
Dimensions
175mm x 108mm
Base port switch selectable from 000H to 3FCH with increments of 4
+5VDC@100mA max. (All relays On), +12VDC@300mA max. (All relays On)
Control switching, Analog multiplexing, Motor starter control, Alarm control, Lighting control
Registers
The AR-B2103 occupies 4 consecutive addresses in the PC I/O space of which only two actually used. The base or
starting address is selected during the installation procedure.
BASE +
When the output is energized, the status LED indicator will light up to indicate an active input.
The registers of the AR-B2103 are located as follows:
D7
CH8
D6
CH7
D5
CH6
D4
CH5
D3
CH4
D2
CH3
D1
CH2
D0
CH1
BASE +
D7
CH16
D6
CH15
D5
CH14
D4
CH13
D3
CH12
D2
CH11
D1
CH10
D0
CH9
Note that all port are 8 bit (one byte) wide and require byte oriented write operations rather than work operations.
All relays in a port are updated simultaneously. Writing a low (0) to a relay within a port deactivates the relay.
Writing a high (1) to a relay activates it.
Programming
Registers
No driver is supplied with the AR-B2103 since the program is very simple and can be accomplished most efficiently
using direct I/O instructions, in whatever application language is used (i.e., Basic, C, Assembly, Pascal, etc.). For
example, assume that one wishes to turn on relay channel 7. Also assume the AR-B2103 board has been set to base
address 992(3E0 hex). To turn on relay channel 7, one simply writes 01000000 to base address 992. Likewise to turn
on channel 10, 12 and 14 one writes 42 decimal (00101010 binary or 2A hex) to I/O address 993(3 E1 hex).The
following example is the BASIC language but it can be easily been translated to other languages. Example:
Assume the AR-B2103 is installed at base address 992(3E0 hex).
To turn on the channel 1 and 10, write as follows:
1000BASE_PORT = &H3E0: REM Base I/O addresses
1010 OUT BASE_PORT, 1: REM Turns channel 1 ON
1020 OUT BASE_PORT+1,2: REM Turns channel 10 ON
To control the desired relays but make no effect to other relays, write as follows:
2000 BASE_PORT = &H3E0 : REM Base I/O addresses
2010 PORT1 = (INP (BASE_PORT) OR1): REM Read back port 1 status and set bit of channel 1
