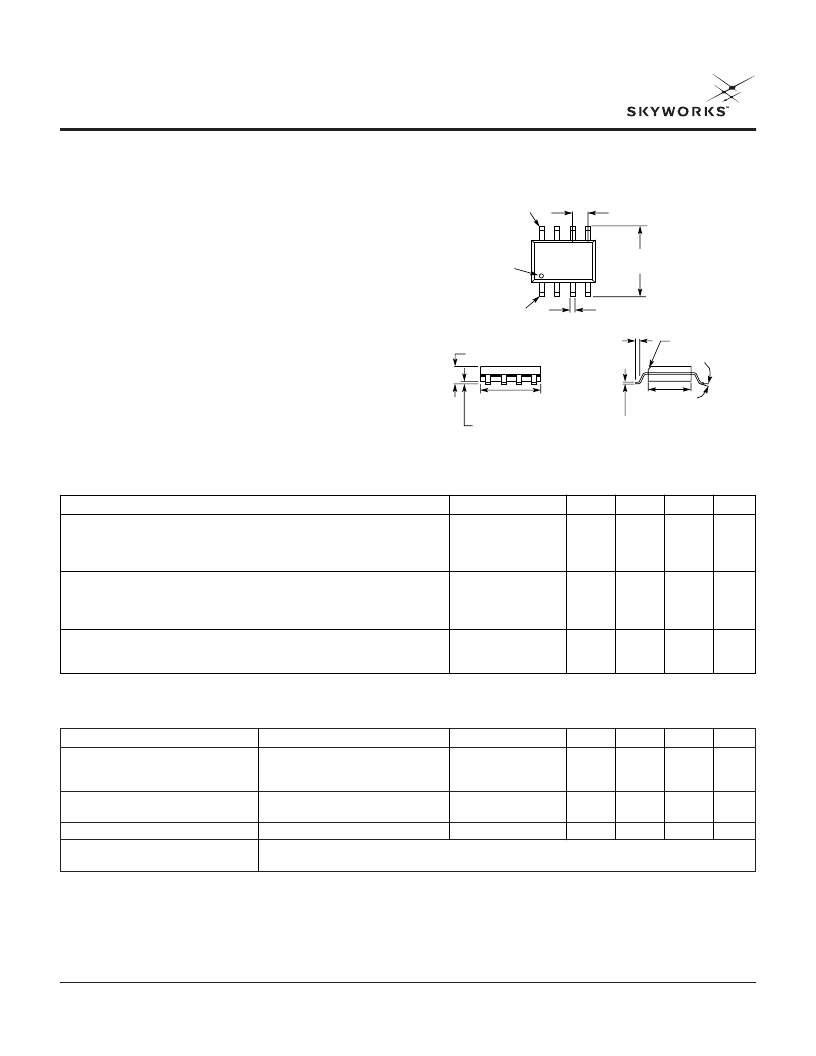

GaAs IC SPDT Low Loss Switch
Reflective DC–2.5 GHz
Features
■
Low Insertion Loss (0.5 dB @ 0.9 GHz)
■
High Isolation (35 dB @ 0.9 GHz)
■
Low Power T/R Switch
■
Low Cost SOIC-8 Plastic Package
SOIC-8
AS002R2-12
0.049
(1.24 mm)
0.016
(0.41 mm)
0.016 MAX.
(0.41 mm) x
45 CHAMFER
PIN 1
0.197 (5.00 mm)
0.189 (4.80 mm)
0.010 (0.25 mm)
0.004 (0.10 mm)
0.068
(1.73 mm) MAX.
0.010 (0.25 mm)
0.007 (0.17 mm)
0.158 (4.00 mm)
0.150 (3.80 mm)
8
MAX.
0.020 (0.51 mm) MAX.
0.244 (6.20 mm)
0.228 (5.80 mm)
0.050 (1.27 mm) BSC
PIN 8
PIN 1
INDICATOR
Description
The AS002R2-12 is a low loss IC FET SPDT reflective
general purpose switch in a plastic SOIC-8 package for
commercial low cost, low power applications.The switch
operates with -5, 0 V or 0, +5 V when “floated” as shown
on the following page.
Parameter
1
Frequency
2
DC–0.5 GHz
DC–1.0 GHz
DC–2.0 GHz
DC–2.5 GHz
DC–0.5 GHz
DC–1.0 GHz
DC–2.0 GHz
DC–2.5 GHz
DC–0.5 GHz
DC–1.0 GHz
DC–2.5 GHz
Min.
Typ.
0.4
0.5
0.7
0.8
42
32
24
20
1.2:1
1.3:1
1.5:1
Max.
0.5
0.6
0.8
0.9
Unit
dB
dB
dB
dB
dB
dB
dB
dB
Insertion Loss
3
Isolation
40
30
22
18
VSWR
4
1.3:1
1.5:1
1.7:1
Electrical Specifications at 25°C (0, -5 V)
Operating Characteristics at 25°C (0, -5 V)
1. All measurements made in a 50
system, unless otherwise specified.
2. DC = 300 kHz.
3. Insertion loss changes by 0.003 dB/°C.
4. Insertion loss state.
5.Video feedthru measured with 1 ns risetime pulse and 500 MHz bandwidth.
