AT5654
4-Channel BTL Motor Driver for CD-ROM
10F-1, No.55, Tung Kuang Road, Hsinchu, Taiwan, R.O.C. Email:
service@aimtron.com.tw
Tel: 886-3-575-3058
http://www.aimtron.com.tw
Fax: 886-3-575-3015 01/12/26
11
Operation notes
(1)
Thermal-shut-down circuit built in. In case
IC chip temperature rise to 175
℃
(typ.),
thermal-shut-down circuit operates and
output current muted. Next time IC chip
temperature falls below 150
℃
(typ.), the
driver blocks start.
(2)
In case stand-by-pin voltage under 0.5V or
opened, quiescent current is muted. stand-by-
pin voltage should be over 2.0V for normal
application.
(3)
Bias-pin (pin 27) should be pulled up more
than 1.2V. In case bias-pin voltage is pulled
down under 0.9V (typ.), output current is
muted.
(4)
Insert the by-pass capacitor between Vcc-pin
and GND-pin of IC as possible as near
(approximatelv 0.1
μ
F).
(5)
Heat dissipation fins are attached to the GND
on the inside of the package. Make sure to
connect these to the external GND.
< Supplement >
Current-feedback driver
Trans conductance (output current/input voltage)
is show as follows.
R
WIRE
= 0.15
Ω
(
±
0.05
Ω
) Au wire

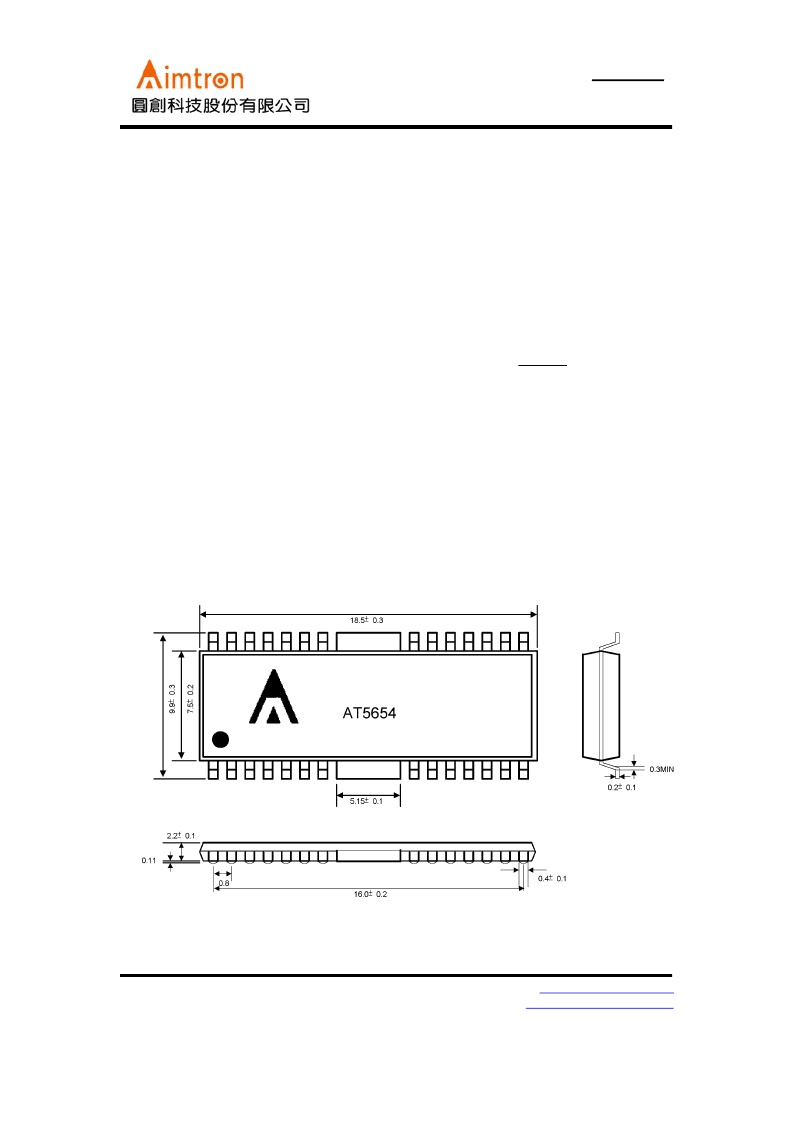

Package Outlines (units:mm): HSOP-28
)
/
(
1
R
V
A
R
g
WIRE
d
m
+
=
