AT5668
Preliminary Product Information
5-Channel Motor Driver for DVD/VCD
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
http://www.aimtron.com.tw
Fax: 886-3-563-0879 Email:
service@aimtron.com.tw
5
Tray Motor Driver

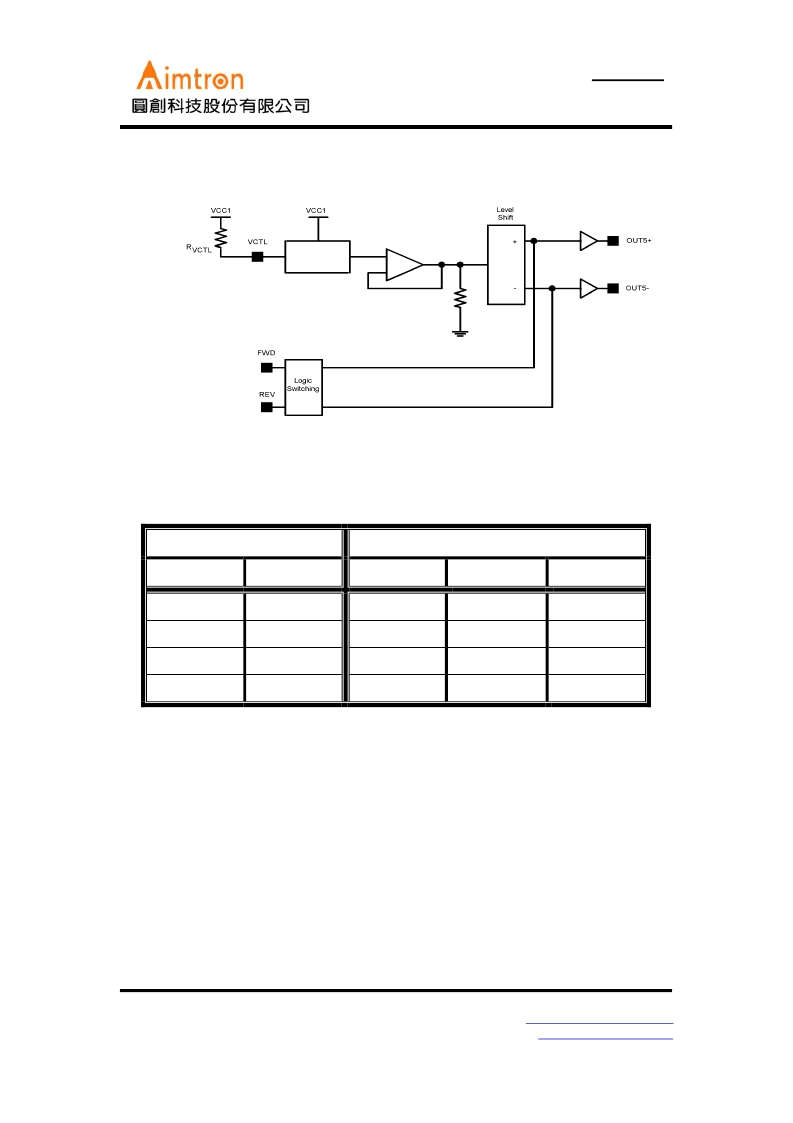

Fig1.
Input
Ouput
FWD
REV
OUT5+
OUT5-
Status
High
High
Low
Low
Break
High
Low
High
Low
Forward
Low
High
Low
High
Reverse
Low
Low
Open
Open
Standby
Tray Motor Speed Control
The amplitude of the output voltage is controlled by VCTL(pin21). If you want to control
differential output voltage of the tray, insert external resistor RVCTL as shown in figure 1.
