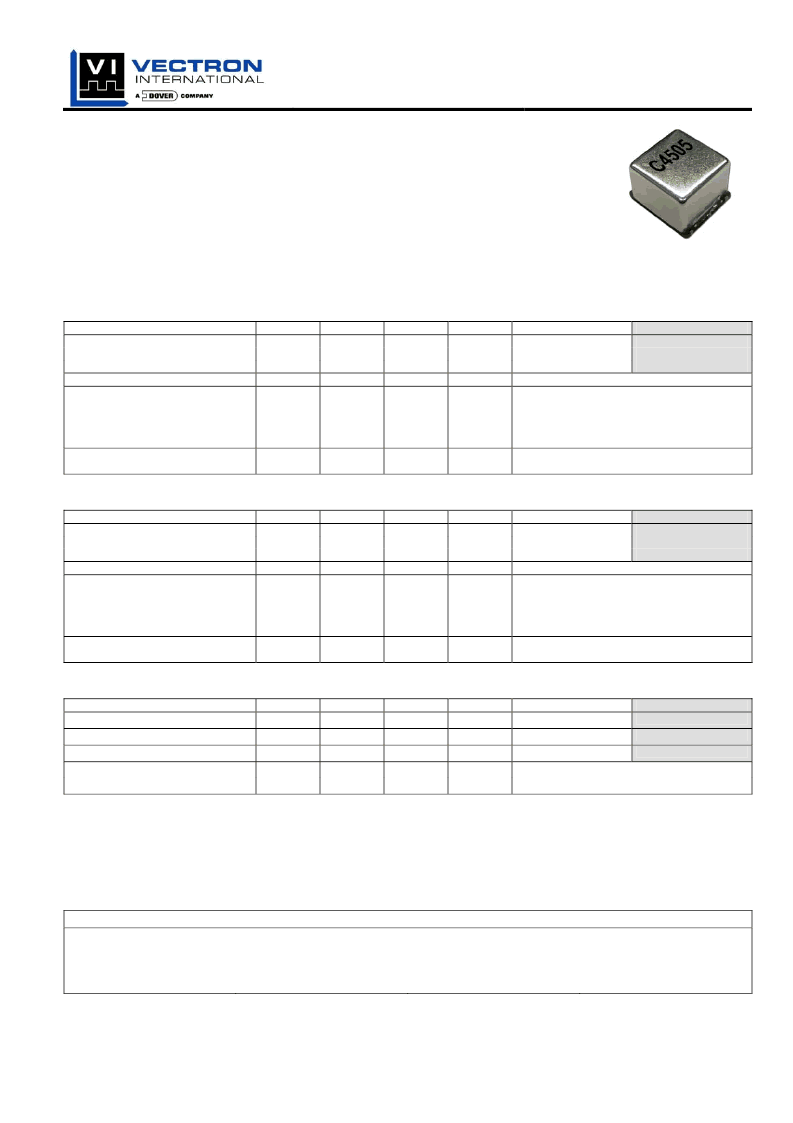

C4505
OCXO
Vectron International
·
www.vectron.com
v.2005-02-11 · page 1 of 4
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
Vectron Asia Pacific Sales Office
Unit 3119 31st Floor, Jin Mao Tower, 88
Century Boulevard, Shanghai,
P.R. China 200120
+86 21 28909740 tel.
+86 21 28909240 fax
Typical Applications
Base Stations
Test Equipment
Synthesizers
Digital Switching
Features
Surface Mount Package
Reflow Process Compatible
AT-Cut and SC-Cut Crystal Options
Compact Package
Previous Vectron Model Numbers
OCO700
Frequency range
6 MHz – 60 MHz
Standard frequencies
8.192; 10; 12, 12.8; 16.384;20; 32.768; 38.88, 61.44MHz
Frequency stabilities
1
[AT Cut Crystal – Standard]
Parameter
vs. operating temperature range
(Referenced to +25°C)
Parameter
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / year
Warm-up Time
Min
-50
-100
-100
Min
-500
-10
-10
-5.0
-250
Typ
Typ
Max.
+50
+100
+100
Max.
+500
+10
+10
+5.0
+250
3
Units
ppb
ppb
ppb
Units
ppb
ppb
ppb
ppb
ppb
minutes
Operating temp range
-20 … +70°C
-20 … +70°C
-40 … +85°C
Ordering Code
D508
D107
F107
Condition
at time of shipment, nominal EFC
V
S
± 5%
Load ± 5%
after 30 days of operation
after 30 days of operation
to
±
100ppb of
final frequency (1 hour reading)
@ +25°C
Frequency stabilities
1
[SC Cut Crystal – Option]
Parameter
vs. operating temperature range
(Referenced to +25°C)
Parameter
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / day
vs aging / year
Warm-up Time
Min
-10
-20
-20
Min
-200
-2.0
-5.0
-1.0
-75
Typ
Typ
Max.
+10
+20
+20
Max.
+200
+2.0
+5.0
+1.0
+75
3
Units
ppb
ppb
ppb
Units
ppb
ppb
ppb
ppb
ppb
minutes
Operating temp range
-20 … +70°C
-20 … +70°C
-40 … +85°C
Ordering Code
D108
D208
F258
Condition
at time of shipment, nominal EFC
V
S
± 5%
Load ± 5%
after 30 days of operation
after 30 days of operation
to
±
10ppb of
final frequency (1 hour reading) @
+25°C
Supply voltage (Vs)
Parameter
Supply voltage [Standard]
Supply voltage [Option]
Supply voltage [Option]
Power consumption
Min
4.75
11.4
3.135
Typ
5
12.0
3.3
Max.
5.25
12.6
3.465
3.0
1.0
Units
VDC
VDC
VDC
Watts
Watts
Condition
Ordering Code
SV050
SV120
SV033
during warm-up
steady state @ +25°C
