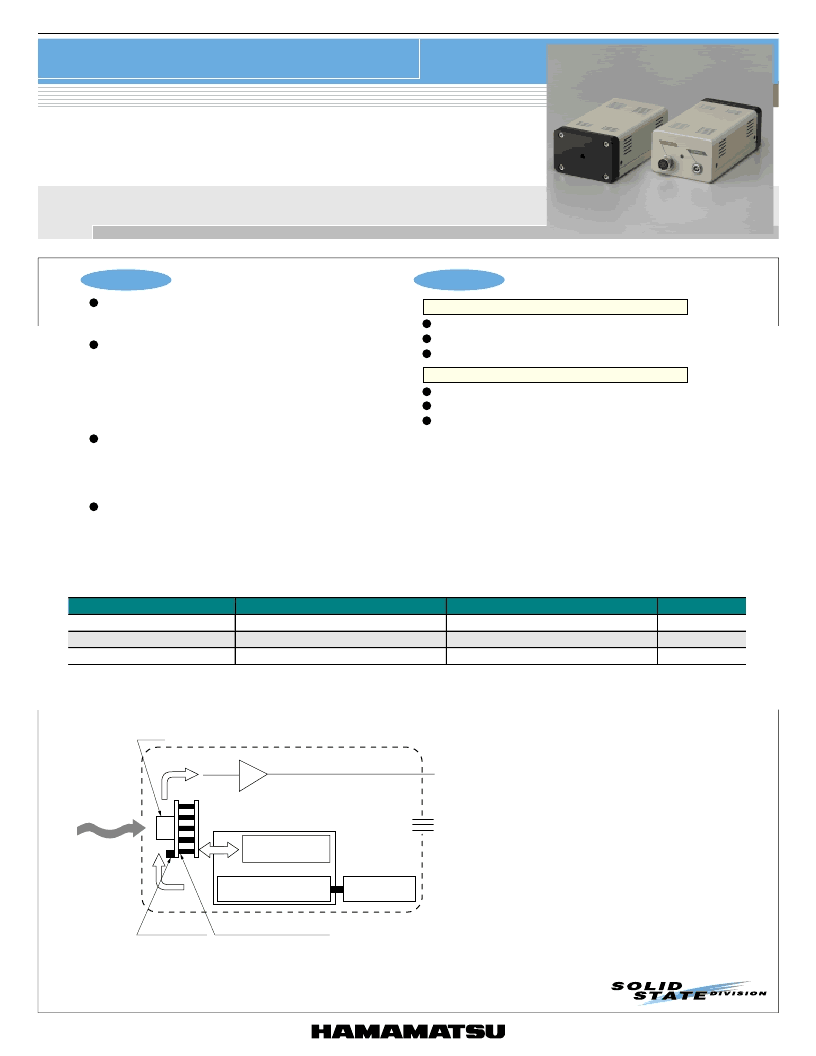

Features
l
Uses high sensitivity APD
Two types of APDs with different active areas
(
φ
0.5 mm,
φ
3.0 mm) are provided.
l
Choice of high sensitivity type and low-light-level detection type
C4777 detects optical signals from 10 kHz to 100 MHz
pulsed light and is suitable for spatial light transmission and
rangefinder applications. C4777-01 provides a high photo-
electric sensitivity of 1.25 × 10
9
V/W and low NEP of 2 fW/Hz
1/2
,
making it excellent for fluorescence measurement and NOx
monitors where low-light-level detection is essential.
l
Built-in temperature control circuit
An APD chip, thermoelectric cooler and thermosensor are
sealed in the same package along with the temperature
control circuit, to keep the APD chip temperature constant
and ensure stable measurements.
l
Simple operation
Operates by just connecting to a DC power supply (+5 V, ±15 V).
Applications
l
Spatial light transmission
l
Optical communication
l
Rangefinder
l
Fluorescence measurement
l
NOx monitor sensor
l
Particle counters
M O D U L E
APD module
C4777 series
APD module integrated with peripheral circuits
C4777
C4777-01
TEMPERATURE
CONTROL CIRCUIT
SIGNAL OUTPUT
POWER SUPPLY
FIRST AMPLIFIER
SIGNAL LIGHT
Si APD
THERMOSENSOR
THERMOELECTRIC COOLER
BIAS CONTROL CIRCUIT
HIGH VOLTAGE
POWER SUPPLY
KACCC0099EA
I
Block diagram
I
!"#$%$
&'
(&
)*
1
