Clock Generator for DVD Stereo System
Cypress Semiconductor Corporation
Document #: 38-07101
3901 North First Street
San Jose
CA 95134
408-943-2600
Rev. **
Revised September 15, 2000
C6007B
Approved Product
Product Features
One Reference outputs
Three 33.8688MHz output
27.00MHz Clock or crystal input
3.3 Volt operation
High drive outputs
16 pin TSSOP package
0 PPM application frequency synthesis error
Product Description
The C6007 is a clock generator solution that
supports DVD Stereo System. It produces a
complete set of clocks needed to support the
entire system. All output clocks are synthesized
from a single 27.00MHz fundamental cut crystal or
input reference clock. The output clocks are
precisely synthesized to meet the systems low
PPM error requirements.

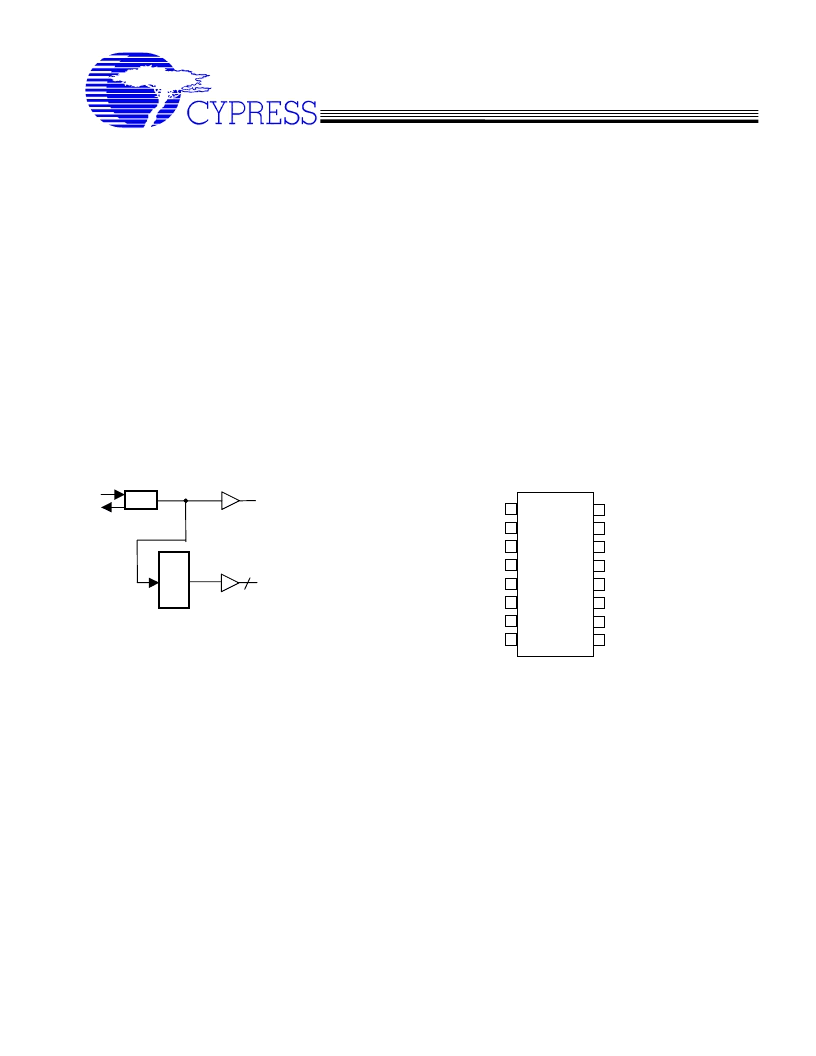

Block Diagram
Pin configuration
VDD
VSS
REFOUT
NC
VDD
VSS
XTI
XTO
NC
NC
NC
33-3Out
VDD
VSS
33-2Out
33-1Out
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
REFOUT
33-1Out
33-2Out
33-3Out
XTI
XTO
PLL
OSC
3
