M O D U L E
Multichannel measurement unit
C6536, M7089
Peripheral devices for NMOS multichannel detector head
To facilitate multichannel measurement and data analysis, Hamamatsu provides a complete line of NMOS multichannel detector head and
peripheral devices including a data processing unit and interface board for connection to a PC.
I

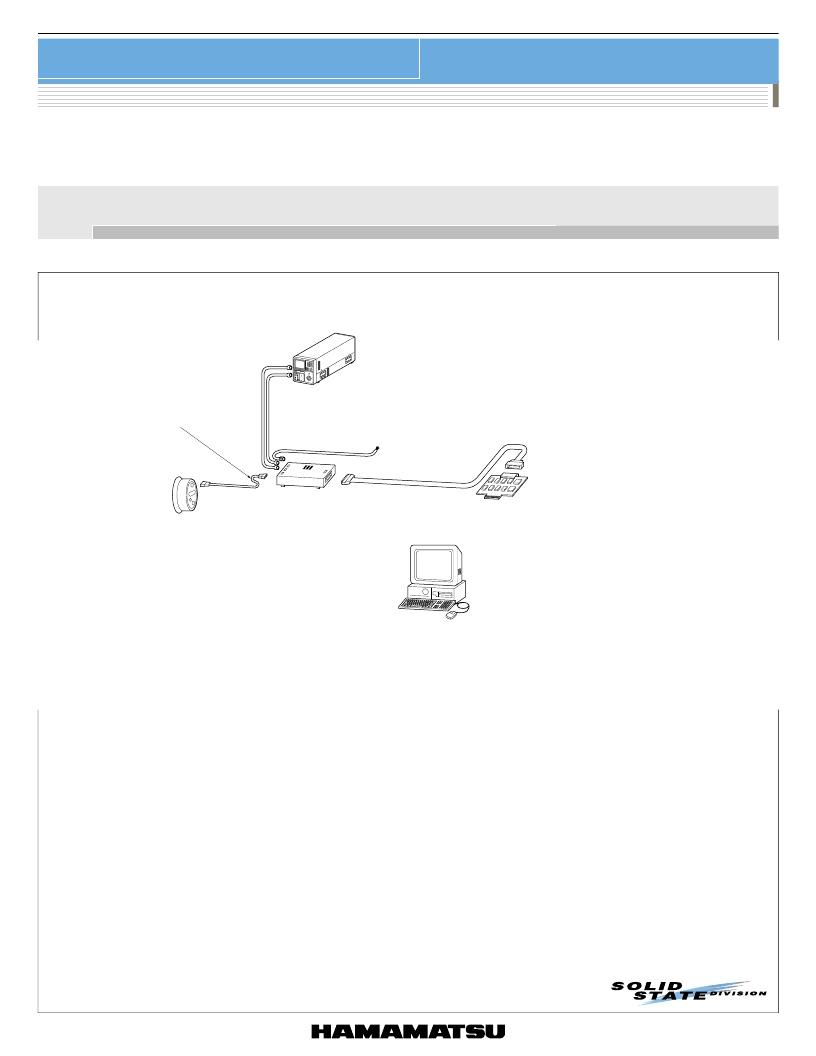

Typical connections of NMOS multichannel detector head to peripheral devices
CABLE FOR IMAGE SENSOR
(CONNECTORIZED
AT BOTH ENDS)
A3017
A3017-01
A3017-02
(1.5 m)
(0.5 m)
(1 m)
SIGNAL CABLE
A3020 (1.5 m, 2 CABLES)
(CONNECTORIZED
AT BOTH ENDS)
POWER SUPPLY CABLE
A3018-01 (1.5 m)
OSCILLOSCOPE
DATA PROCESSING UNIT
C6536
A7094-01
A7094
(2.5 m)
(5 m)
INTERFACE BOARD
M7089
IBM-PC COMPATIBLE
COMPUTER
HAMAMATSU
(CONNECTORIZED
AT BOTH ENDS)
C8892
G
Data processing unit C6536
C6536 converts video signals from an NMOS linear im-
age sensor into 12-bit digital signals. C6536 is comprised
of a 12-bit A/D converter, memory controller and pulse
generator for image sensor.
The output signal from an image sensor is A/D converted
at high speeds and buffered in the internal memory. By
handshaking the internal controller with an external PC,
the data can be transferred in parallel according to the
PC operating speed.
G
Interface board M7089
M7089 is an I/O board specifically designed for interface
with an IBM PC/AT compatible computer. By installing
M7089 into the extension slot of the PC, data can be
easily handled between data processing unit C6536 and
the PC by 12-bit high-speed transfer. This allows analyz-
ing the output of NMOS linear image sensors on the PC
and also controlling the NMOS linear image sensor inte-
gration time from the PC.
KACCC0055E
C
G
Cables
Dedicated cables needed to make connections between
the NMOS multichannel detector head and peripheral units
are available.
1
