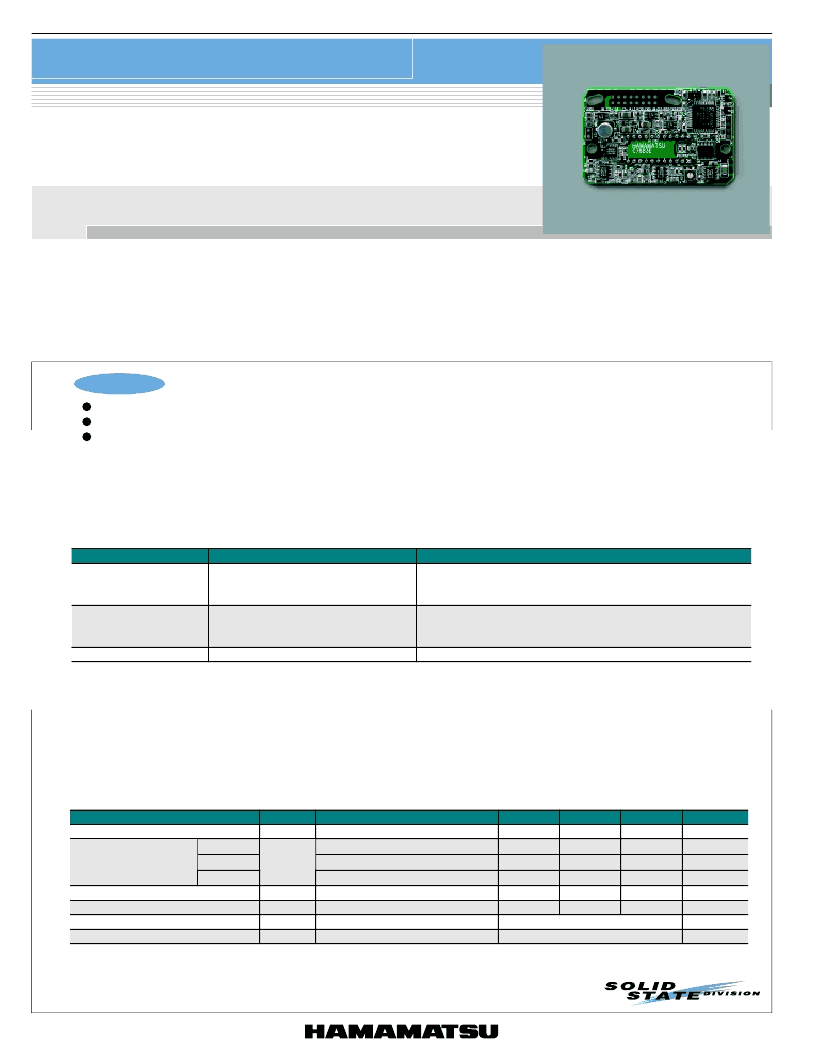

C7883 series is a driver circuit specifically designed for the Hamamatsu current-output type NMOS linear image sensors (S3901 to S3904 series,
S8380/S8381 series). NMOS linear image sensors are self-scanning photodiode arrays integrated with a scanning circuit of N-channel MOS
transistors.
C7883 series supplies start pulses and 2-phase clock pulses necessary for image sensor operation. C7883 series also includes a signal
processing circuit to read out video signals from an image sensor in the current-to-voltage conversion mode.
C7883 series operates by input of a master start pulse, master clock pulse and connection to a power supply (+12 V or +15 V).
C7883-20 is multichannel detector head incorporating driver circuit (C7883) developed for Hamamatsu NMOS linear image sensor. C7883-20 is
designed especially for compactness, having an overall length as short as 40 mm or less. The housing case also provides a shielding effect
against external noise.
Features
l
High-speed operation (compared to C7884)
l
Compact (compared to conventional type C4069)
l
Single power supply (+12 V or +15 V) operation
I M A G E S E N S O R
Driver circuit for NMOS linear image sensor
C7883 series
High-speed driver circuit for current-output type NMOS linear image sensor
C7883
I
Selection guide
Type No.
Product name
Feature
C7883
Driver circuit
High-speed driver circuit for current-output type NMOS linear
image sensors.
Has no input/output connector.
A dedicated pulse generator is pre-mounted on the driver
circuit board.
Has no input/output connector.
C7883 driver circuit board is installed in a shield case.
C7883G
Driver circuit + Pulse generator
C7883-20
Multichannel detector head
Note)
1: Standard input/output connector is FAP-16-07#2 (made by Yamaichi, sold separately). Equivalent connectors are available
from other manufacturers.
2: Custom products with an input/output connector pre-mounted are available on request. Please consult our sales office.
3: When ordering along with a dedicated cable (A8226), C7883 series will be shipped with a mating connector pre-mounted.
4: We welcome custom requests (e.g. 4 MHz high-speed type). Feel free to contact our sales office.
5: When high precision measurements are required, refer to C7884 series data sheet.
6: When using voltage-output type NMOS linear image sensors, refer to C7885 series data sheet.
I
Specifications (Ta=25 °C)
Parameter
Supply voltage
Symbol
+Vs
Condition
Min.
+11.5
-
-
-
-
-
Typ.
+12.0
30
60
30
-
24
0 to +50 *
-10 to +60 *
Max.
+15.5
40
80
40
2
-
Unit
V
mA
mA
mA
MHz
kV/A
°C
°C
C7883
C7883G
C7883-20
+12 V
+12 V
+12 V
Master clock frequency: 8 MHz
Current consumption
+Is
Operation frequency
Gain
Operating temperature
Storage temperature
* No condensation
-
G
Topr
Tstg
1
