Flat panel sensors C7942CA-02 and C7943CA-02 are digital X-ray image sensors newly developed as key devices for non-destructive inspection,
biochemical imaging, X-ray microscopy and other real-time X-ray imaging applications requiring high resolution and high image quality.
Features
l
Non-destructive inspection
l
Digital X-ray photography
Applications
l
C7942CA-02: 2400 × 2400 pixels
C7943CA-02: 1248 × 1248 pixels
l
Digital output (12-bit)
l
High-speed imaging:
C7942CA-02: 2 frames/s (single operation)
9 frames/s (4 × 4 binning)
C7943CA-02: 7 frames/s (single operation)
30 frames/s (4 × 4 binning)
l
Low noise and wide dynamic range
l
Compact package
l
Easy use

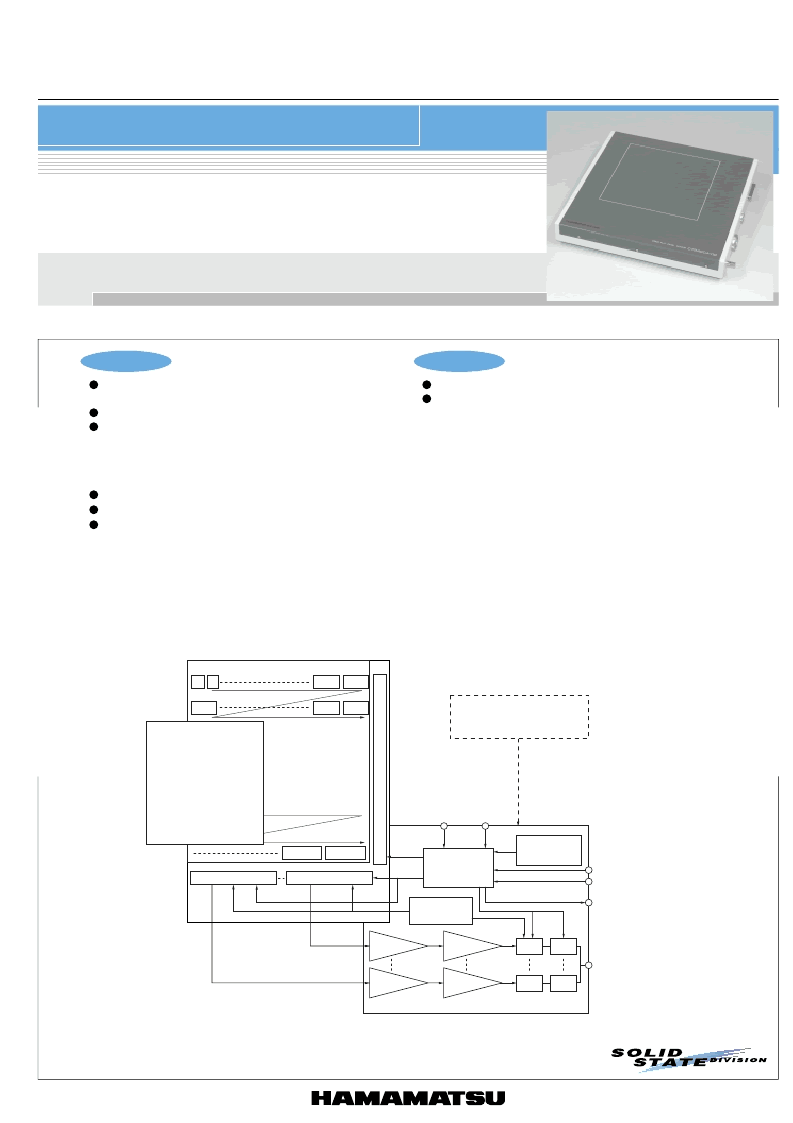

I M A G E S E N S O R
Flat panel sensor
C7942CA-02, C7943CA-02
Acquire digital X-ray image in real time and 170 & 176 mm diagonal size
AMP ARRAY No. 1
V
TIMING
PULSE
GENERATOR
OSCILLATOR
ExtTrgGrb
Vsync
Hsync
Pclk
PIXEL NUMBER
1
2
A/D
IntExt
BINNING
(bin0, bin1)
EXTERNAL POWER SUPPLY
A.vdd, D.vdd, V (±7.5)
(not attached)
AMP ARRAY No. 8
PHOTODIODE
ARRAY
Note: Signals are read out in order of pixel number.
BUFFER
AMP
BUFFER
AMP
PROCESSING
AMP
PROCESSING
AMP
5760000
5759999
2400
2339
4800
4799
2401
SCINTILLATOR
(120
×
120 mm)
BIAS
GENERATOR
ExtTrgLemo
FIFO
A/D
FIFO
VIDEO OUTPUT
(12 BIT DIGITAL)
KACCC0216EB
1
I
Block diagram (C7942CA-02)
C7942CA-02 is a lightweight and compact flat panel sensor consisting of a sensor board and a control board. The sensor board
also has 8 charge-sensitive amplifier arrays each having 300 ch amplifiers with a horizontal shift register. Analog video signals
are amplified as the charge on each video line by 2400 ch charge amplifiers with CDS (Correlated Double Sampling) circuits
added, and are output each of 8 amplifier arrays. The control board converts the analog video signal into a 12-bit digital signal and
outputs it to an external frame grabber through the 12-bit parallel port.
