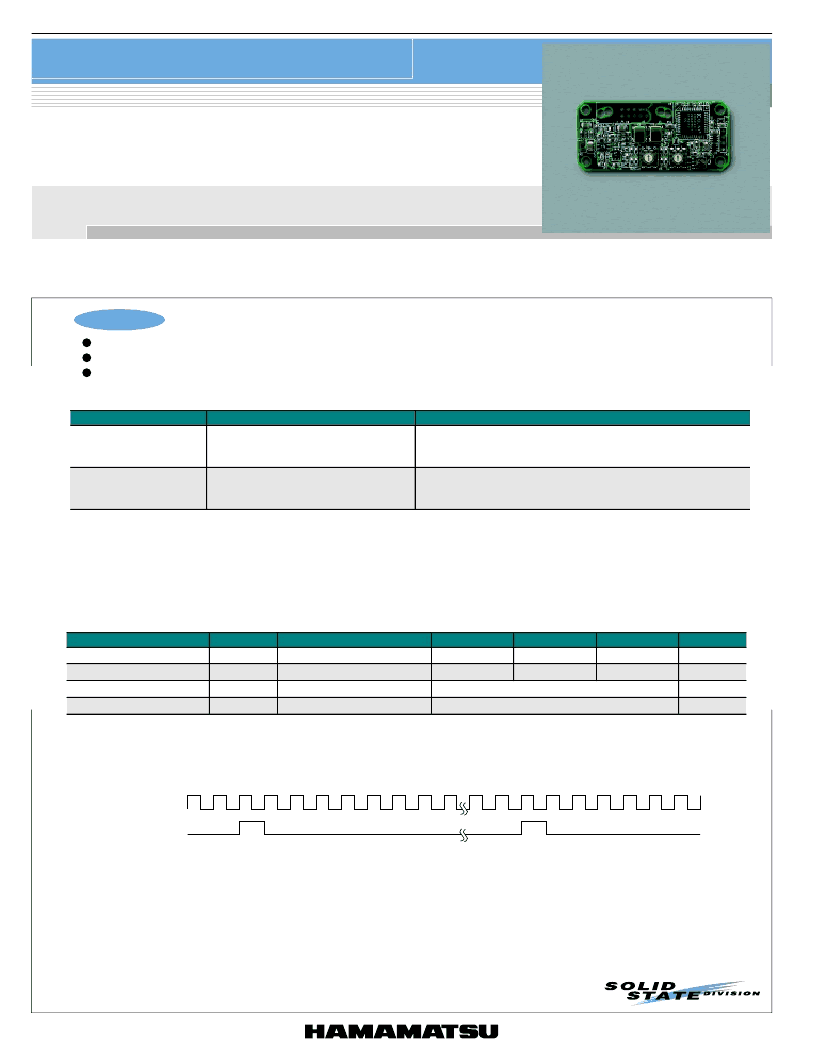

C8225 series is a pulse generator specifically designed for NMOS linear image sensor driver circuits. C8225 series provides the driver circuits
with a master start pulse and master clock pulse which can be preset by rotary switches.
C8225 series uses a quartz oscillator as the reference clock that delivers high-precision master start and clock pulses. When a separate pin connector
and socket are installed on the circuit board, C8225 series can be mounted directly on C7883/C7884/C7885 series image sensor driver circuit board.
Features
l
Directly mountable on C7883/C7884/C7885 series
l
Compact (compared to conventional type C4091)
l
Single power supply (+5 V) operation
I M A G E S E N S O R
Pulse generator for NMOS linear image sensor driver circuit
C8225 series
Pulse generator for NMOS linear image sensor
C8225
I
Selection guide
Type No.
Description
Feature
C8225-01
For C7883/C7884 series
Master start interval: 1 μs to 50 s (1-2-5 sequence)
Master clock frequency: 62.5 kHz to 32 MHz
Has no input/output connector.
Master start interval: 1 μs to 50 s (1-2-5 sequence)
Master clock frequency: 46.875 kHz to 24 MHz
Has no input/output connector.
C8225-02
For C7885 series
Note)
1: Standard input/output connector is FAP-16-07#2 (made by Yamaichi, sold separately). Equivalent connectors are available
from other manufacturers.
2: When mounting C8225 series on a driver circuit, use a 6-pin socket (PM-1 made by MAC8) on the driver circuit and a 6-pin
plug (OY-003 made by MAC8) on C8225 series.
3: Custom products with an input/output connector pre-mounted are available on request. Please consult our sales office.
4: We welcome custom requests. Feel free to contact our sales office.
I
Specifications (Ta=25 °C)
Parameter
Symbol
Condition
Supply voltage
+Vs
Current consumption *
1
+Is
+5 V
Operating temperature
Topr
Storage temperature
Tstg
*1: Current consumption depends on the clock frequency.
*2: No condensation
MASTER CLOCK CLK
MASTER START Start
KACCC0126EA
Min.
+4.5
-
Typ.
+5.0
-
Max.
+5.5
50
Unit
V
mA
°C
°C
0 to +50 *
2
-10 to +60 *
2
I
Timing chart
1
