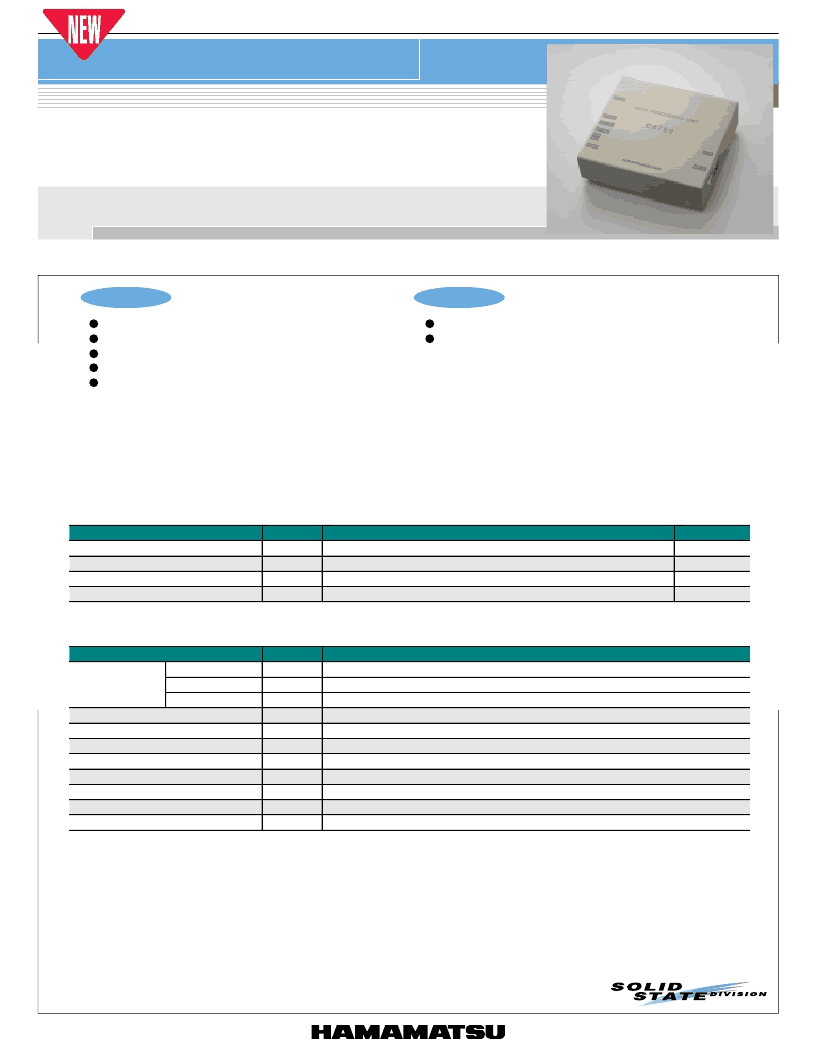

C8799
Data processing unit with USB interface
M O D U L E
Data processing unit for NMOS linear image sensor
Features
Applications
l
Built-in 12-bit A/D converter
l
Adjustable data rate (5 MHz Max.)
l
Internal memory: 1 mega-word
l
Interface of computer: USB 1.1
l
Simultaneous measurements using multiple units
l
Spectrophotometry
l
Position measurement
C8799 is a data processing unit that converts video signals from an NMOS image sensor driver circuit into digital signals and transfers them to a PC.
The USB interface allows easy connection to a PC for high-speed data communications at 12 Mbps.
1
I
Absolute maximum ratings (Ta=25 °C)
Parameter
Digital power supply
Analog power supply
Operating temperature
Storage temperature
*1: No condensation
Symbol
V
D
V
A
Topr
Tstg
Value
+7
±18
0 to +50 *
1
0 to +60 *
1
Unit
V
V
°C
°C
I
Specifications
Parameter
Remark
*
2
*
2
Specification
+5 V, 200 mA
+15 V, 150 mA
+5 V
+15 V
-15 V
Supply voltage
-15 V, 0 mA (for image sensor driver circuit supply)
0 to 10 V
Positive logic
16 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125 kHz, 62.5 kHz
12 bit
5 MHz (Max.)
1 mega-word
USB 1.1
Windows 98, Windows 2000, Windows XP
Video input signal
Control output signal (START)
Synchronized output signal (CLK)
A/D resolution
Data rate
Internal memory
Interface of computer
Compatible OS
*2: Tentative data
*3: C8799-01 compatible with 0 to 5 V supply is also available.
*4: Pulse width and interval are adjustable.
*5: Setting is selectable.
*6: Data rate equals the CLK frequency divided by the number of CLK pulses generated in an NMOS driver circuit for forming pixels.
*7: Correct operation on OS (operating system) has been verified, but please note that operation has not been verified on all PC
models.
*
3
*
4
*
5
*
6
*
7
