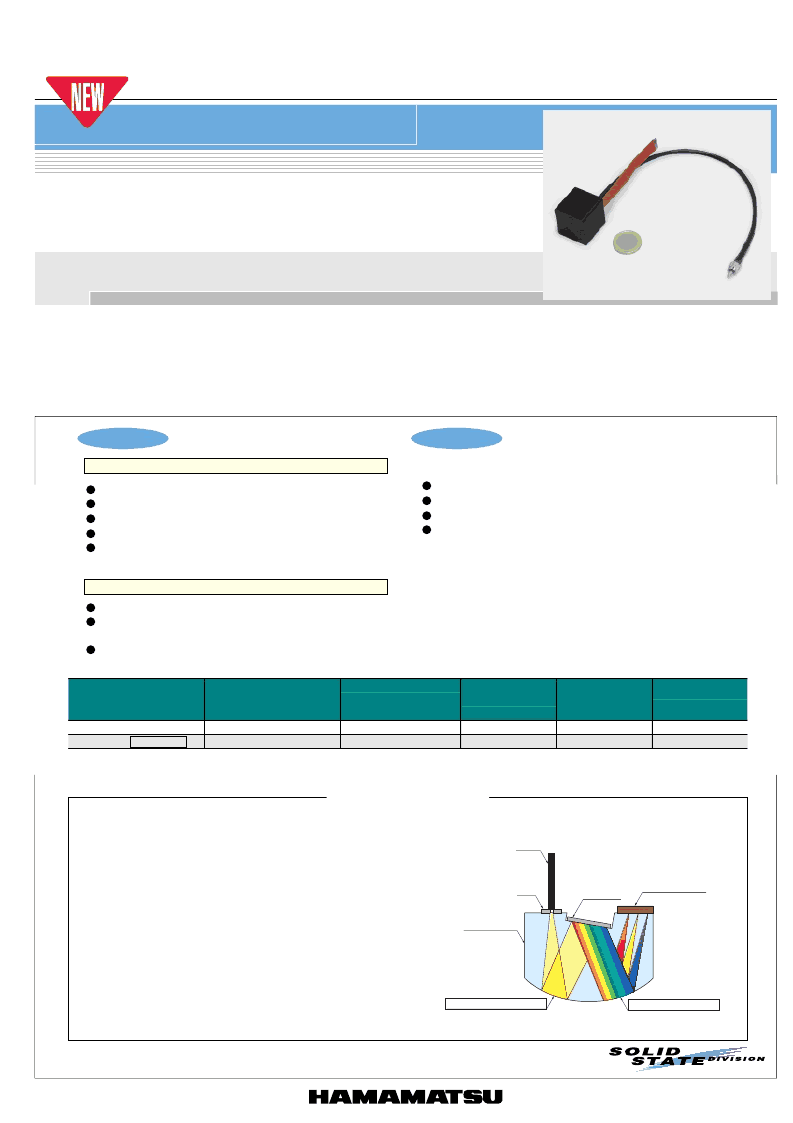

M O D U L E
Mini-spectrometer RC series
C9407MA, C9409MA
Compact and low cost, OEM model (C9409MA)
PRELIMINARY DATA
Jan. 2007
HAMAMATSU mini-spectrometer RC series is a compact polychromator integrated with a reflection grating and a CMOS linear image
sensor. Two models are available: a mini-spectrometer module (C9407MA) equipped with a driver circuit, and a mini-spectrometer head
(C9409MA) for OEM applications, which contains an optical system and an image sensor in a tiny case measuring only 28 × 28 × 28 mm.
Light guided into the mini-spectrometer head is dispersed into to a spectrum which is then photoelectrically converted and output as video
signals. The mini-spectrometer module has a USB port that connects to a PC for spectrum data collection.
The mini-spectrometer module comes supplied with free sample software that allows setting measurement conditions, acquiring and
saving data, and displaying graphs. Driver software and DLL are also supplied as accessory items to allow the users to configure their own
measurement software.
Features
Applications
l
Installation into measurement equipment
l
Chemical measurement
l
Visible light source testing
l
Color measurement, etc.
l
OEM model
l
Integrating optical system and image sensor into a
compact case: 28 × 28 × 28 mm
l
Low cost
C9409MA (Head)
l
Integrating spectrometer head and drive circuit
l
Spectral measurement using PC
l
No external power supply required: USB bus power
l
A/D conversion: 16-bit
l
Wavelength conversion factor *
1
is recorded in
internal memory.
C9407MA (Module)
1
I
Selection guide
Product No.
Product type
Spectral response
range
(nm)
340 to 780
340 to 780
Spectral
Resolution
(nm)
9
9
Interface
Light input
method
C9407MA
C9409MA
*1: A conversion factor for converting the image sensor pixel number into a wavelength is recorded in the module. Calculation
factor for converting the A/D converted count into the input light intensity is not provided.
RC-VIS-MOS (Module)
RC-VIS-MOS (Head)
USB1.1
-
fiber
fiber
Structure of C9409MA
C9409MA is offered in small size, low-cost units achieved by
integrating optical components into a glass body. The reflec-
tive grating mounted on the glass body is a plastic-molded
replica grating.
GRATING
IMAGE SENSOR
FOCUSING FUNCTION
COLLIMATING FUNCTION
GLASS BODY
FIBER
SLIT
KACCC0348EB
I
Optical component layout
C9409MA
OEM model
