參數資料
| 型號： | CA2842C |
| 廠商： | MOTOROLA INC |
| 元件分類： | 衰減器 |
| 英文描述： | 22 dB 10-400 MHz 1.2 WATTS WIDEBAND LINEAR AMPLIFIER |
| 中文描述： | 10 MHz - 400 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER |
| 文件頁數： | 1/4頁 |
| 文件大小： | 126K |
| 代理商： | CA2842C |

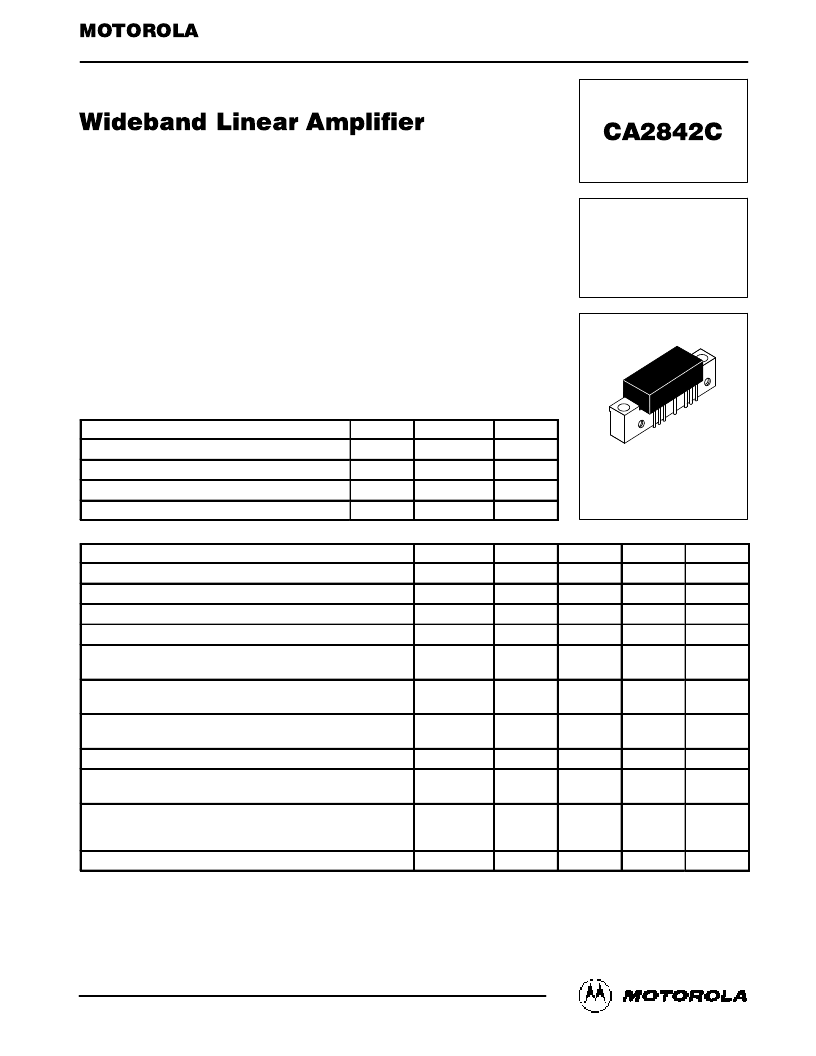

1
CA2842C
MOTOROLA RF DEVICE DATA
Motorola, Inc. 1994
The RF Line
. . . designed for amplifier applications in 50 to 100 ohm systems requiring wide
bandwidth, low noise and low distortion. This hybrid provides excellent gain
stability with temperature and linear amplification as a result of the push–pull
circuit design.
Specified Characteristics at VCC = 24 V, TC = 25
°
C:
Frequency Range — 10–400 MHz
Output Power — 1580 mW Typ @ 1 dB Compression, f = 200 MHz,
VCC = 28 V
Power Gain — 22 dB Typ @ f = 100 MHz
PEP — 650 mW Min @ –32 dB IMD
Noise Figure — 4 dB Typ @ f = 100 MHz
ITO — 46 dBm @ f = 300 MHz
All Gold Metallization for Improved Reliability
Unconditional Stability Under All Load Conditions
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
DC Supply Voltage
VCC
Pin
TC
Tstg
28
Vdc
RF Power Input
+14
dBm
Operating Case Temperature Range
–20 to +100
°
C
Storage Temperature Range
–40 to +100
°
C
ELECTRICAL CHARACTERISTICS
(TC = 25
°
C, VCC = 24 V, 50
system unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
Frequency Range
BW
10
—
400
MHz
Gain Flatness (f = 10–400 MHz)
—
—
±
0.5
±
1
dB
Power Gain (f = 100 MHz)
PG
NF
21
22
23
dB
Noise Figure, Broadband (f = 100 MHz)
—
4
5
dB
Power Output — 1 dB Compression
(f = 10–200 MHz, VCC = 28 V)
Po1 dB
1260
1580
—
mW
Power Output — 1 dB Compression
(f = 200–400 MHz, VCC = 28 V)
Po1 dB
630
—
—
mW
Third Order Intercept
(See Figure 10, f1 = 10–400 MHz, See Fig. 10)
ITO
42
44
—
dBm
Input/Output VSWR
(f = 10–400 MHz)
VSWR
—
1.3:1
1.5:1
—
Second Harmonic Distortion
(Po = 100 mW, f2H = 300 MHz)
dso
—
—
–50
dB
Peak Envelope Power
(Two Tone Distortion Test — See Figure 10)
(f = 200 MHz @ –32 dB IMD)
PEP
650
1000
—
mW
Supply Current
ICC
200
230
250
mA
Order this document
by CA2842C/D
SEMICONDUCTOR TECHNICAL DATA
22 dB
10–400 MHz
1.2 WATTS
WIDEBAND
LINEAR AMPLIFIER
CASE 714F–03, STYLE 1
[CA (POS. SUPPLY)]
