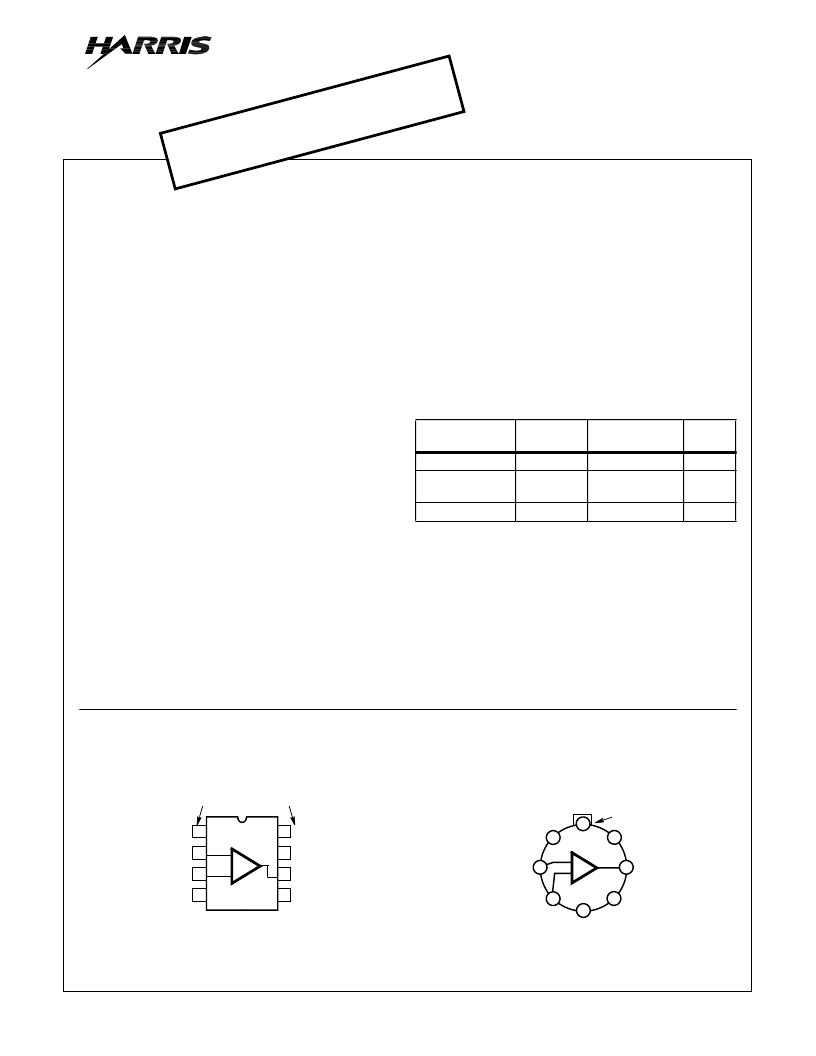

3-1
Semiconductor
January 1999
CA3100
38MHz, Operational Amplifier
Features
High Open Loop Gain at Video
Frequencies . . . . . . . . . . . . . . . . . . 42dB (Typ) at 1MHz
Unity Gain
Crossover Frequency (f
T
) . . . . . . . . . . . . . 38MHz (Typ)
Full Power Bandwidth
V
O
= 18V
P-P
. . . . . . . . . . . . . . . . . . . . . . . 1.2MHz (Typ)
Slew Rate
- 20dB Amplifier . . . . . . . . . . . . . . . . . . . . 70V/
μ
s (Typ)
- Unity Gain Amplifier. . . . . . . . . . . . . . . . 25V/
μ
s (Typ)
Settling Time . . . . . . . . . . . . . . . . . . . . . . . . 0.6
μ
s (Typ)
Output Current. . . . . . . . . . . . . . . . . . . . . .
±
15mA (Min)
Single Capacitor Compensation
Offset Null Terminals
Applications
Video Amplifiers
Fast Peak Detectors
Meter Driver Amplifiers
High Frequency Feedback Amplifiers
Video Pre-Drivers
Oscillators
Multivibrators
Voltage Controlled Oscillator
Fast Comparators
Description
The CA3100 is a large signal wideband, high speed
operational amplifier which has a unity gain cross over
frequency (f
T
) of approximately 38MHz and an open loop,
3dB corner frequency of approximately 110kHz. It can
operate at a total supply voltage of from 14V to 36V (
±
7V to
±
18V when using split supplies) and can provide at least
18V
P-P
and 30mA
P-P
at the output when operating from
±
15V supplies. The CA3100 can be compensated with a
single external capacitor and has DC offset adjust terminals
for those applications requiring offset null. (See Figure 1).
The CA3100 circuit contains both bipolar and PMOS transis-
tors on a single monolithic chip.
Pinouts
Part Number Information
PART NUMBER
(BRAND)
TEMP.
RANGE (
o
C)
PACKAGE
PKG.
NO.
CA3100E
-40 to 85
8 Ld PDIP
E8.3
CA3100M
(3100)
-40 to 85
8 Ld SOIC
M8.15
CA3100T
-55 to 125
8 Pin Metal Can
T8.C
CA3100
(PDIP, SOIC)
TOP VIEW
CA3100
(METAL CAN)
TOP VIEW
1
2
3
4
8
7
6
5
OFFSET
NULL
INV.
INPUT
NON-INV.
INPUT
V-
V+
OUTPUT
OFFSET
NULL
PHASE COMPENSATION
-
+
V+
2
4
V-
6
1
3
7
5
8
-
+
PHASE
COMP
TAB
OUTPUT
OFFSET
NULL
NON-INV.
INPUT
INV.
INPUT
PHASE
COMP AND
OFFSET NULL
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
Copyright
Harris Corporation 1999
File Number
625.4
[ /Title
(CA31
00)
/Sub-
ject
(38MH
z,
Opera-
tional
Ampli-
fier)
/Autho
r ()
/Key-
words
(Har-
ris
Semi-
con-
ductor,
single,
opera-
tional
ampli-
fier, op
amp,
gen-
eral
pur-
pose,
indus-
trial
mili-
tary
HA-2525
POSOBSOLETE PRODUCT
