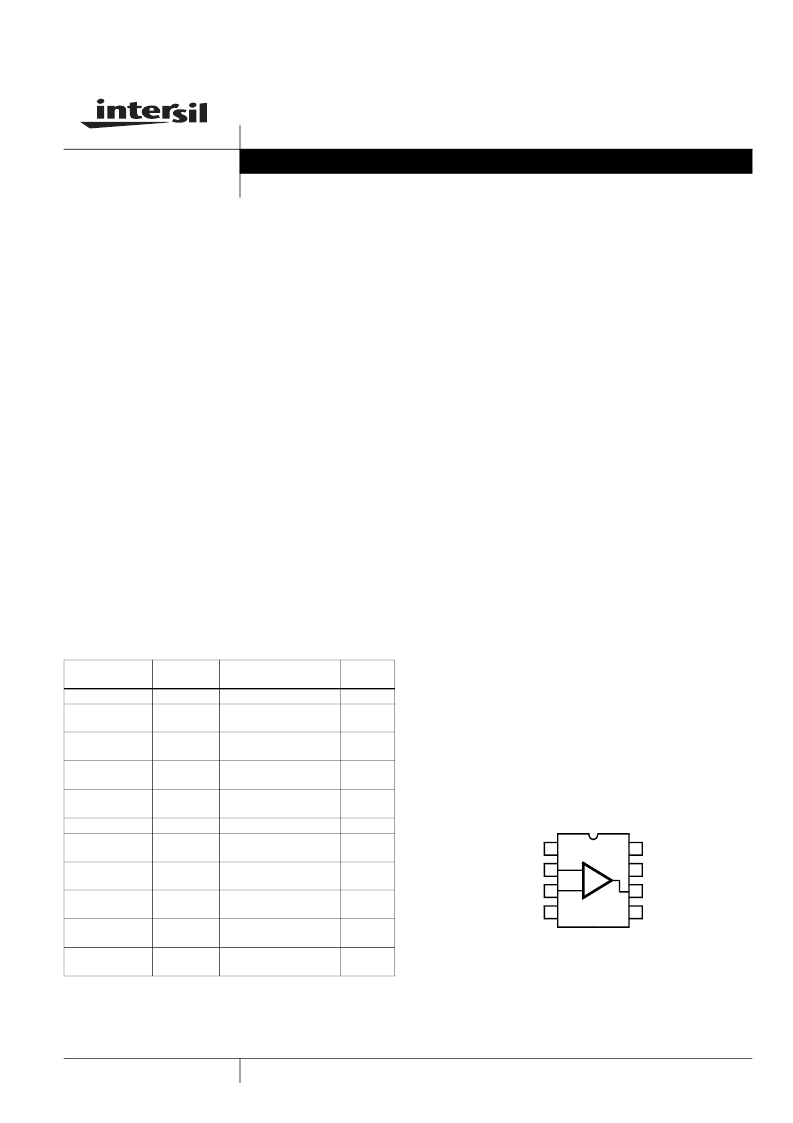

1
CA3130, CA3130A
15MHz, BiMOS Operational Amplifier with
MOSFET Input/CMOS Output
CA3130A and CA3130 are op amps that combine the
advantage of both CMOS and bipolar transistors.
Gate-protected P-Channel MOSFET (PMOS) transistors are
used in the input circuit to provide very-high-input
impedance, very-low-input current, and exceptional speed
performance. The use of PMOS transistors in the input stage
results in common-mode input-voltage capability down to
0.5V below the negative-supply terminal, an important
attribute in single-supply applications.
A CMOS transistor-pair, capable of swinging the output
voltage to within 10mV of either supply-voltage terminal (at
very high values of load impedance), is employed as the
output circuit.
The CA3130 Series circuits operate at supply voltages
ranging from 5V to 16V, (
±
2.5V to
±
8V). They can be phase
compensated with a single external capacitor, and have
terminals for adjustment of offset voltage for applications
requiring offset-null capability. Terminal provisions are also
made to permit strobing of the output stage.
The CA3130A offers superior input characteristics over
those of the CA3130.
Features
MOSFET Input Stage Provides:
- Very High Z
I
= 1.5 T
(1.5 x 10
12
) (Typ)
- Very Low I
I
. . . . . . . . . . . . . 5pA (Typ) at 15V Operation
. . . . . . . . . . . . . . . . . . . . . .= 2pA (Typ) at 5V Operation
Ideal for Single-Supply Applications
Common-Mode Input-Voltage Range Includes
Negative Supply Rail; Input Terminals can be Swung 0.5V
Below Negative Supply Rail
CMOS Output Stage Permits Signal Swing to Either (or
both) Supply Rails
Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
Ground-Referenced Single Supply Amplifiers
Fast Sample-Hold Amplifiers
Long-Duration Timers/Monostables
High-Input-Impedance Comparators
(Ideal Interface with Digital CMOS)
High-Input-Impedance Wideband Amplifiers
Voltage Followers (e.g. Follower for Single-Supply D/A
Converter)
Voltage Regulators (Permits Control of Output Voltage
Down to 0V)
Peak Detectors
Single-Supply Full-Wave Precision Rectifiers
Photo-Diode Sensor Amplifiers
Pinout
CA3130, CA3130A
(PDIP, SOIC)
TOP VIEW
Ordering Information
PART NO.
(BRAND)
CA3130AE
CA3130AM
(3130A)
CA3130AM96
(3130A)
CA3130AMZ
(3130AZ) (Note)
CA3130AMZ96
(3130AZ) (Note)
CA3130E
CA3130EZ
(Note)
CA3130M
(3130)
CA3130M96
(3130)
CA3130MZ
(3130MZ) (Note)
CA3130MZ96
(3130MZ)
TEMP.
RANGE (
o
C)
-55 to 125
-55 to 125
PACKAGE
PKG.
DWG. #
E8.3
M8.15
8 Ld PDIP
8 Ld SOIC
-55 to 125
8 Ld SOIC
Tape and Reel
8 Ld SOIC
(Pb-free)
8 Ld SOIC
Tape and Reel (Pb-free)
8 Ld PDIP
8 Ld PDIP*
(Pb-free)
8 Ld SOIC
M8.15
-55 to 125
M8.15
-55 to 125
M8.15
-55 to 125
-55 to 125
E8.3
E8.3
-55 to 125
M8.15
-55 to 125
8 Ld SOIC
Tape and Reel
8 Ld SOIC
(Pb-free)
8 Ld SOIC
Tape and Reel (Pb-free)
M8.15
-55 to 125
M8.15
-55 to 125
M8.15
*Pb-free PDIPs can be used for through hole wave solder processing only. They are not
intended for use in Reflow solder processing applications.
NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets;
molding compounds/die attach materials and 100% matte tin plate termination finish,
which are RoHS compliant and compatible with both SnPb and Pb-free soldering
operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
OFFSET
NULL
INV.
NON-INV.
INPUT
V-
1
2
3
4
8
7
6
5
STROBE
V+
OUTPUT
OFFSET
NULL
-
+
INPUT
Data Sheet
August 1, 2005
FN817.6
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002, 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
