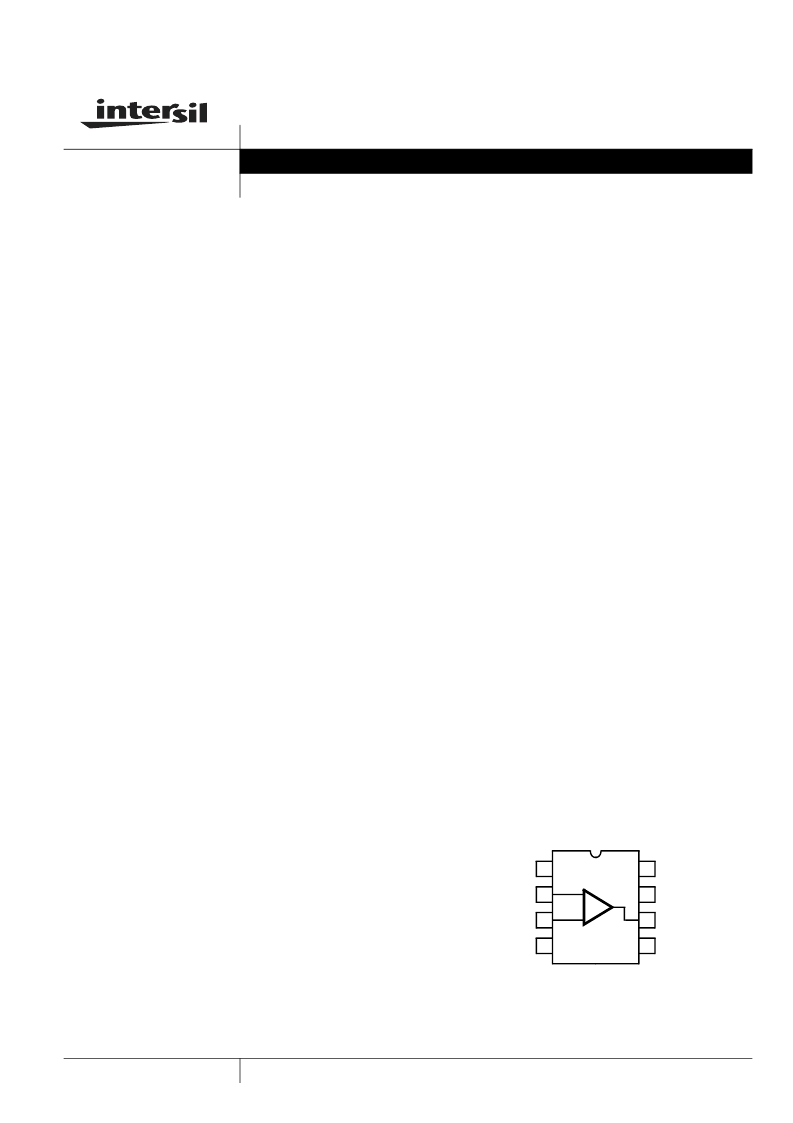

1
CA3140, CA3140A
4.5MHz, BiMOS Operational Amplifier with
MOSFET Input/Bipolar Output
The CA3140A and CA3140 are integrated circuit operational
amplifiers that combine the advantages of high voltage
PMOS transistors with high voltage bipolar transistors on a
single monolithic chip.
The CA3140A and CA3140 BiMOS operational amplifiers
feature gate protected MOSFET (PMOS) transistors in the
input circuit to provide very high input impedance, very low
input current, and high speed performance. The CA3140A
and CA3140 operate at supply voltage from 4V to 36V
(either single or dual supply). These operational amplifiers
are internally phase compensated to achieve stable
operation in unity gain follower operation, and additionally,
have access terminal for a supplementary external capacitor
if additional frequency roll-off is desired. Terminals are also
provided for use in applications requiring input offset voltage
nulling. The use of PMOS field effect transistors in the input
stage results in common mode input voltage capability down
to 0.5V below the negative supply terminal, an important
attribute for single supply applications. The output stage
uses bipolar transistors and includes built-in protection
against damage from load terminal short circuiting to either
supply rail or to ground.
The CA3140A and CA3140 are intended for operation at supply
voltages up to 36V (
±
18V).
Features
MOSFET Input Stage
- Very High Input Impedance (Z
IN
) -1.5T
(Typ)
- Very Low Input Current (I
l
) -10pA (Typ) at
±
15V
- Wide Common Mode Input Voltage Range (V
lCR
) - Can be
Swung 0.5V Below Negative Supply Voltage Rail
- Output Swing Complements Input Common Mode
Range
Directly Replaces Industry Type 741 in Most Applications
Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
Ground-Referenced Single Supply Amplifiers in
Automobile and Portable Instrumentation
Sample and Hold Amplifiers
Long Duration Timers/Multivibrators
(
μ
seconds-Minutes-Hours)
Photocurrent Instrumentation
Peak Detectors
Active Filters
Comparators
Interface in 5V TTL Systems and Other Low
Supply Voltage Systems
All Standard Operational Amplifier Applications
Function Generators
Tone Controls
Power Supplies
Portable Instruments
Intrusion Alarm Systems
Pinout
CA3140 (PDIP, SOIC)
TOP VIEW
INV. INPUT
NON-INV.
INPUT
V-
1
2
3
4
8
7
6
5
STROBE
V+
OUTPUT
OFFSET
NULL
OFFSET
NULL
-
+
Data Sheet
July 11, 2005
FN957.10
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Harris Corporation 1998, Copyright Intersil Americas Inc. 2002, 2004, 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
