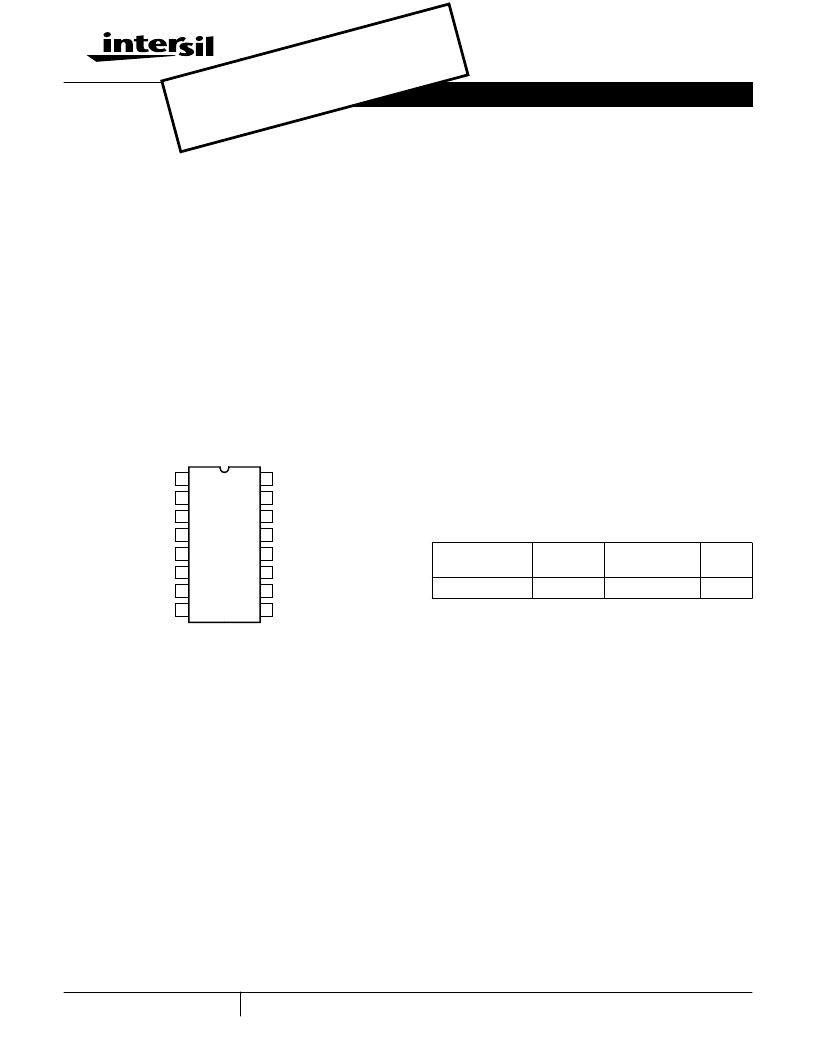

1
CA3450
220MHz, Video Line Driver, High Speed
Operational Amplifier
The CA3450 is a large signal video line driver and high
speed operational amplifier capable of driving 50
transmission lines and flash A/Ds. The uncompensated unity
gain crossing occurs at 230MHz without load. It can operate
at dual or single supplies of
±
7.25V or 14.5V, respectively.
The CA3450 can be compensated with a single capacitor
network. It has output drive capability of 75mA SINK or
SOURCE. The CA3450 is capable of driving Flash A/Ds in
video or high speed instrumentation (accurate) applications
with bandwidth up to 10MHz. Offset voltage nulling terminals
are also available.
Pinout
CA3450
(PDIP)
TOP VIEW
Features
High Open Loop Gain at Video Frequencies
- A
OL
. . . . . . . . . . . . . . . . . . . . . . . . . .>40dB at f = 5MHz
Power Bandwidth of 10MHz . . . . . . . A
CL
= 5; V
O
=
±
3.5V
Slew Rate at Full Load . . . . . . . . . . . . . 330V/
μ
s (A
V
≥
10)
f
T
= 220MHz; C
C
= 0pF With a Load of 50
||20pF|| 1M
(Scope Input)
V
OUT
=
±
4.1V Into 75
Offset Null Terminals
Applications
Video Line Driver
High Frequency Unity Gain Buffer
Pulse Amplifier
High Speed Comparator
High Frequency Oscillator and Video Amplifiers
Driver for A/Ds in Video Applications . . . . . . . .10MHz BW
14
15
16
9
13
12
11
10
1
2
3
4
5
7
6
8
OFFSET NULL
NC
- INPUT
V-
V-
V
O
V+
V+
OFFSET NULL
+ INPUT
V-
V-
COMP
NC
COMP
NC
Part Number Information
PART NUMBER
TEMP.
RANGE (
o
C)
PACKAGE
PKG.
NO.
CA3450E
-40 to 85
16 Ld PDIP
E16.3
January 1999
File Number
1732.5
NO REOBSOLETE PRODUCT
Call or email: centapp@harris.com
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Copyright
Intersil Corporation 1999
