1
TM
File Number
1923.6
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
Intersil and Design is a trademark of Intersil Corporation.
Copyright
Intersil Corporation 2000
CA5130, CA5130A
15MHz, BiMOS Microprocessor
Operational Amplifiers with MOSFET
Input/CMOS Output
CA5130A and CA5130 are integrated circuit operational
amplifiers that combine the advantage of both CMOS and
bipolar transistors on a monolithic chip. They are designed
and guaranteed to operate in microprocessors or logic
systems that use +5V supplies.
Gate protected P-Channel MOSFET (PMOS) transistors are
used in the input circuit to provide very high input
impedance, very low input current, and exceptional speed
performance. The use of PMOS field effect transistors in the
input stage results in common mode input voltage capability
down to 0.5V below the negative supply terminal, an
important attribute in single supply applications.
A complementary symmetry MOS (CMOS) transistor-pair,
capable of swinging the output voltage to within 10mV of
either supply voltage terminal (at very high values of load
impedance), is employed as the output circuit.
The CA5130 Series circuits operate at supply voltages ranging
from 4V to 16V, or
±
2V to
±
8V when using split supplies. They
can be phase compensated with a single external capacitor,
and have terminals for adjustment of offset voltage for
applications requiring offset null capability. Terminal provisions
are also made to permit strobing of the output stage.
The CA5130A, CA5130 have guaranteed specifications for
5V operation over the full military temperature range of
-55
o
C to 125
o
C.

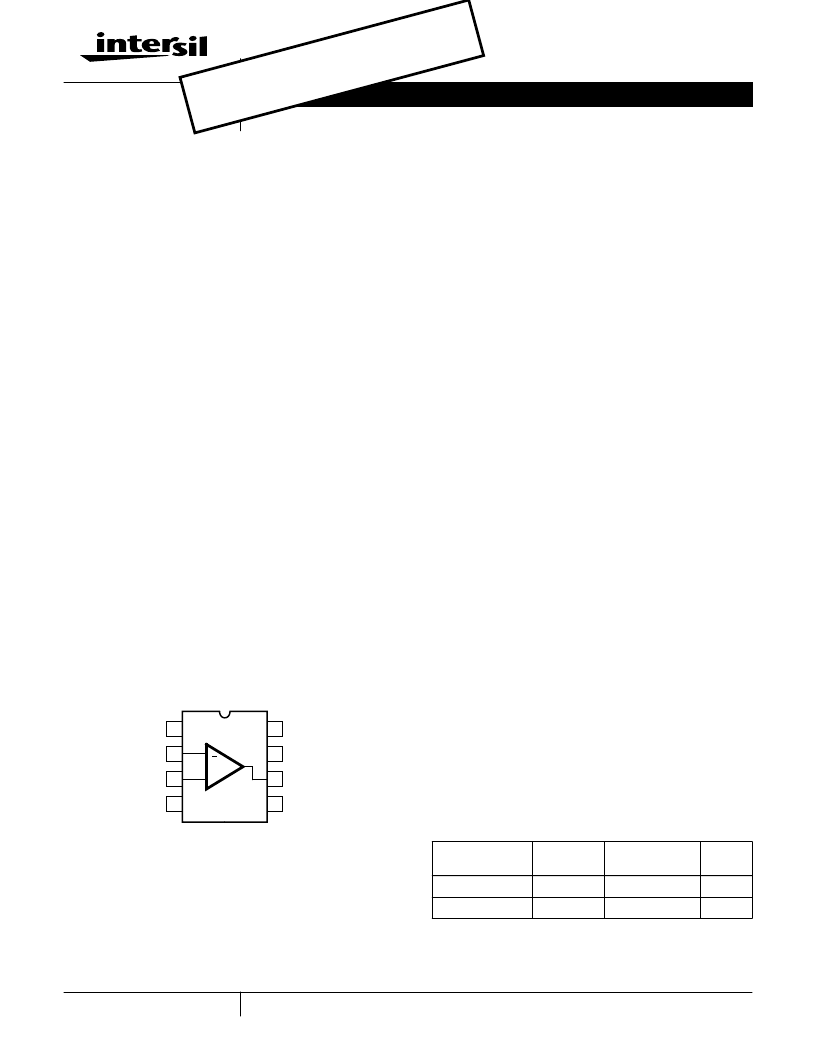

Pinout
CA5130 (PDIP)
TOP VIEW
Features
MOSFET Input Stage
- Very High Z
l
. . . . . . . . . . . . . 1.5T
(1.5 x 10
12
) (Typ)
- Very Low l
l
. . . . . . . . . . . . . 5pA (Typ) at 15V Operation
2pA (Typ) at 5V Operation
Ideal for Single Supply Applications
Common Mode Input Voltage Range Includes
Negative Supply Rail; Input Terminals Can Be Swung
0.5V Below Negative Supply Rail
CMOSOutputStagePermitsSignalSwingtoEither(orBoth)
Supply Rails
CA5130A, CA5130 Have Full Military Temperature Range
Guaranteed Specifications for V+ = 5V
CA5130A, CA5130 Are Guaranteed to Operate Down to
V+ = 4.5V for A
OL
CA5130A, CA5130 Are Guaranteed to Operate at
±
7.5V
CA3130A, CA3130 Specifications
Applications
Ground Referenced Single Supply Amplifiers
Fast Sample-Hold Amplifiers
Long Duration Timers/Monostables
High Input lmpedance Comparators (Ideal Interface with
Digital CMOS)
High lnput Impedance Wideband Amplifiers
Voltage Followers (e.g., Follower for Single-Supply
D/A Converter)
Voltage Regulators (Permits Control of Output Voltage
Down to 0V)
Peak Detectors
Single Supply Full Wave Precision Rectifiers
Photo Diode Sensor Amplifiers
5V Logic Systems
Microprocessor Interface
1
2
3
4
8
7
6
5
V+
OFFSET NULL
INV. INPUT
V-
NON-INV. INPUT
STROBE
OUTPUT
OFFSET NULL
+
Part Number Information
PART NUMBER
(BRAND)
TEMP.
RANGE (
o
C)
PACKAGE
PKG.
NO.
CA5130AE
-55 to 125
8 Ld PDIP
E8.3
CA5130E
-55 to 125
8 Ld PDIP
E8.3
March 2000
