A
A
1

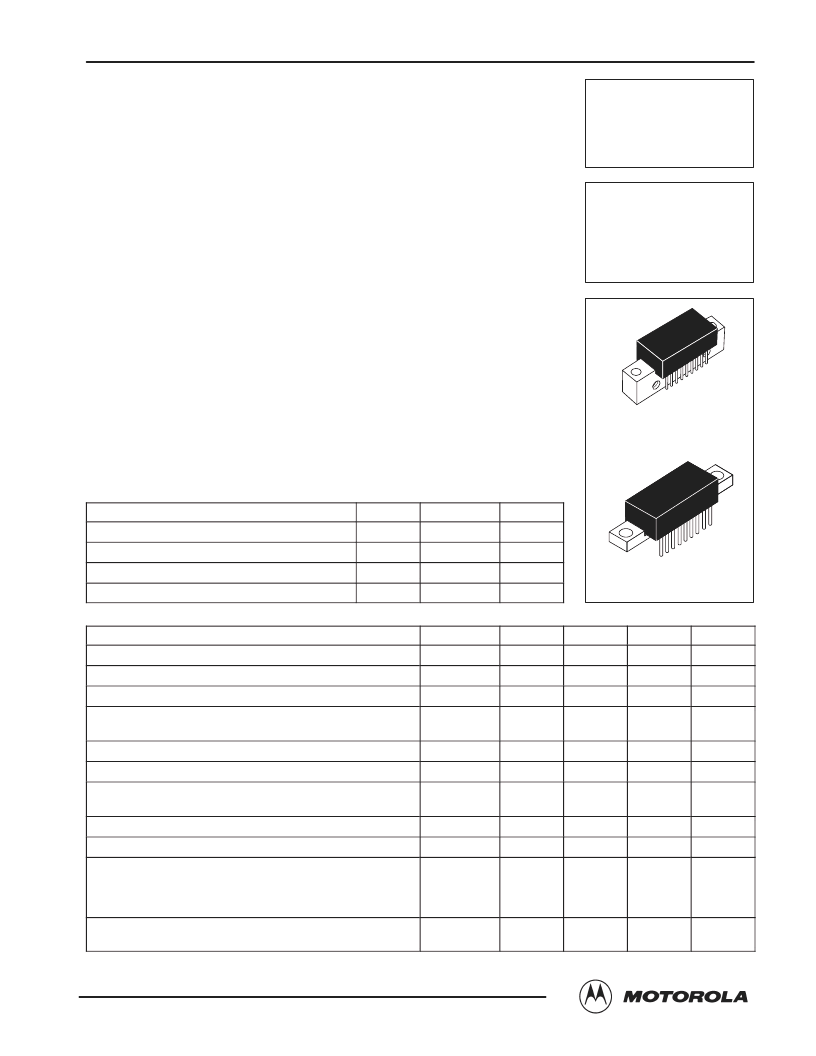

CA5800C CA5800CS
Motorola, Inc. 1994
The RF Line
. . . designed for amplifier applications in 50 to 100 ohm systems requiring
wide bandwidth, low noise and low distortion. This hybrid provides excellent
gain stability with temperature and linear amplification as a result of the
push–pull circuit design.
Specified Characteristics at V
CC
= 28 V, T
C
= 25
°
C:
Frequency Range — 10 to 1000 MHz
Output Power — 1 W Typ @ 1 dB Compression, f = 900 MHz
Power Gain — 15.5 Typ @ f = 1000 MHz
Noise Figure — 7.5 dB Typ @ f = 500 MHz
ITO — 40.5 dBm @ f = 1000 MHz
All Gold Metallization for Improved Reliability
Optimized for 28 V Operation
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
DC Supply Voltage
V
CC
32
Vdc
RF Power Input
P
in
+18
dBm
Operating Case Temperature Range
T
C
–20 to +100
°
C
Storage Temperature Range
T
stg
–40 to +100
°
C
ELECTRICAL CHARACTERISTICS
(T
C
= 25
°
C, V
CC
= 28 V, 50
system unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
Frequency Range (3 dB Down at 10 MHz)
BW
10
—
1000
MHz
Gain Flatness (f = 40–1000 MHz)
—
—
1
2
dB
Power Gain (f = 1000 MHz)
P
G
14.5
15.5
—
dB
Noise Figure, Broadband
f = 500 MHz
f = 1000 MHz
NF
—
—
7.5
8.5
8.5
9.5
dB
Power Output — 1 dB Compression (f = 900 MHz)
P
o 1dB
800
1000
—
mW
Third Order Intercept (See Figure 1, f
1
= 10–1000 MHz)
ITO
—
40.5
—
dBm
Input/Output VSWR
f = 40–900 MHz
f = 900–1000 MHz
VSWR
—
—
—
—
2:1
2.6:1
—
Second Harmonic Distortion (P
o
= 100 mW, f
2H
= 1000 MHz)
d
so
—
–55
–45
dB
Supply Current
I
CC
360
400
440
mA
Intermodulation Distortion, 3 Tone
(Vision Carrier = –8 dB, Sound Carrier = –10 dB,
Sideband Signal = –17 dB. See Figure 2.
f = 860 MHz, P
sync
= 200 mW)
IMD
—
–58
—
dB
Second Order IMD
(P
t
= 2.75 dBm, f
1
= 373 MHz, f
2
= 450 MHz, See Figure 1)
IM2
–65
–60
dB
Order this document
by CA5800C/D
SEMICONDUCTOR TECHNICAL DATA
15 dB
10–1000 MHz
1 WATT
WIDEBAND
LINEAR AMPLIFIERS
CASE 714P–03, STYLE 2
(CA)
CA5800C
CASE 714T–03, STYLE 1
CA5800CS
