Coax "n" connectors, 90 series
coax "f" connectors 130 series
Trompeter's "N" Connector Series is utilized for interconnection on antenna towers, lightning protection boxes, power distribution and
ancillary systems. Trompeter offers a complete line of remarkable new 50
"N" connectors for current industry standard flexible and
corrugated cables.

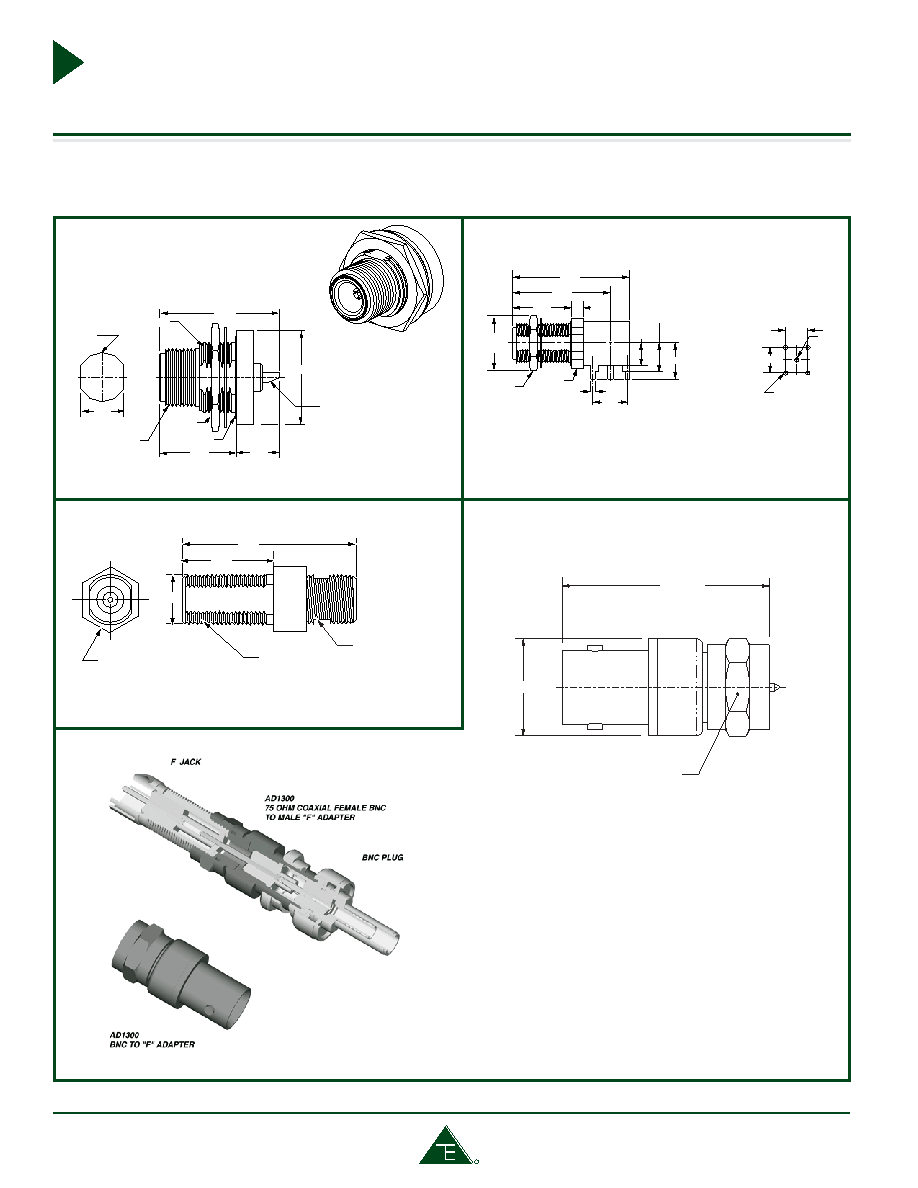

"N" Type Bulkhead Jack
50
BJ92
Panel Thk: .250 MAX
Right Angle Circuit Board Jack
Type "N" Coaxial Bulkhead
Mount Receptacle
50
CBBJR99
DD4.310
Cable group table, See pages 91-133.
.625-24UNEF-2A
.750-32UNEF-2A
1.286
1.000
1.00 HEX
GASKET
.818
.468
SOLDER POT
ACCEPTS .095
WIRE
,765
.755
.662
.658
Between Series Coaxial Female
BNC to Male “F” Adapter
75
AD1300
.50
1.06
±.03
.437 HEX
f adapter
AD131
.437 HEX
.375-32-2A TYP
.371
.662
1.290
.312 WRENCH FLATS
.634
.553
.081 DIA
.104 DIA
4 PLACES
.866
DIA
.750 HEX NUT
.930
1.555
.187
1.867
.072
TYP
.553
TYP
.350
.450
TYP
.575
.800 DIA
The connector solution for CATV appliances! Whether you
are dealing with a set-top box or a cable modem, convert your
problem F connector jack to a BNC at the jack or socket and
enable Carrier Class performance. Face it, the single largest
technical problem with the HFC delivery network used by
cable TV service providers is the F connector. The F was
selected back when CATV was a one way residential only
entertainment delivery system for television.
What better way to bring your system performance up to
Carrier Class than to convert from the F connector to the
Telco standard connector, the Trompeter BNC series? Now
it's simply using the Trompeter AD1300 between series
adapter (drawing above), which converts your F jack into a
BNC jack at the device.
