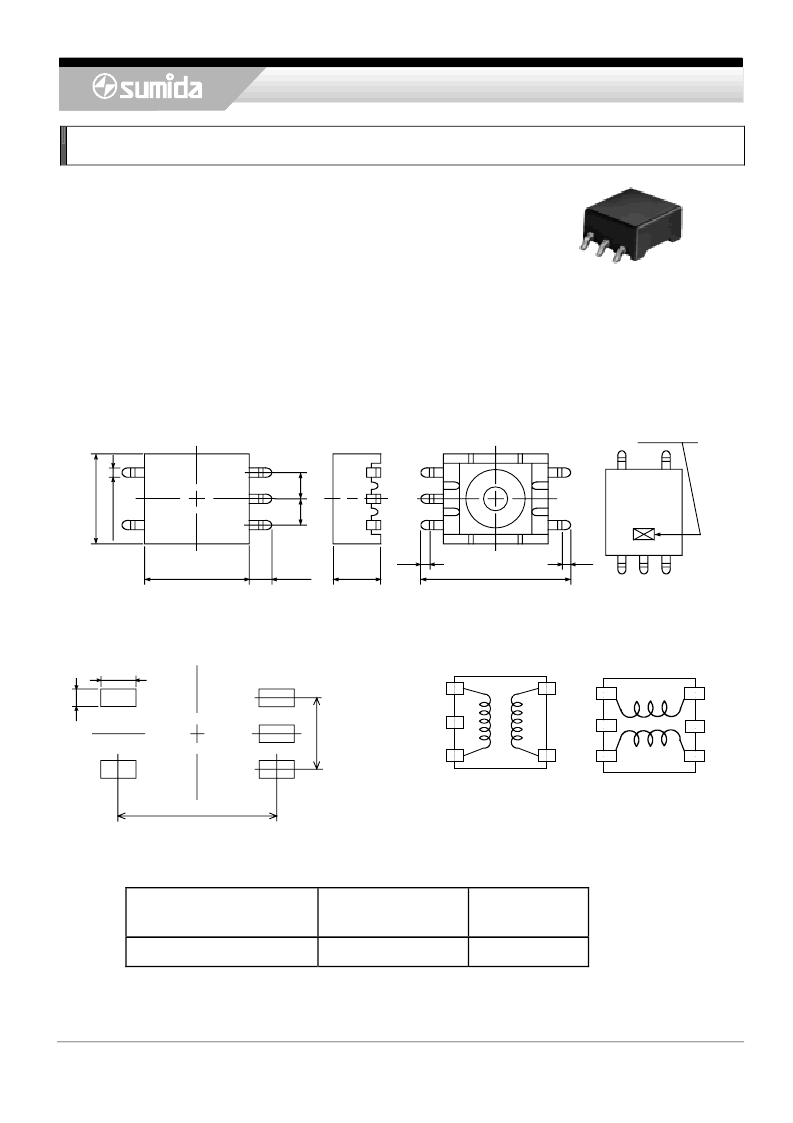

Balun coil< SMD Type: CBM Series>
Type: CBM63
◆
Product Description
6.55
×
4.95mm Max.(L
×
W),3.15mm Max. Height.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/1
3
2
1
4
6
5
S
S
Operating frequency: 100kHz
～
1GHz
◆
Feature
Balance-unbalance transformer,common mode choke.
Ideally used in EMC and balance-unbalance converter circuit, CATV signal transfer.
RoHS Compliance.
◆
Dimensions (mm)
◆
Land Pattern (mm)
◆
Schematics(Bottom)
1
“S” is winding start.
◆
Specification
Part Name
Inductance
(Within)
Testing
condition
CBM63-5250-T045
2.4
μＨ±
40
％
100 kHz
STAMPDATE CODE
6.4±0.15
1.5
0.5
9.4±0.15
5
±
1
±0.1
3.0±0.15
±
1
0
0.5
1
3
045
2.0±0.1
3
8.9±0.1
1
2
3
4
6
S
S
