Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
54
CARDINAL COMPONENTS
.

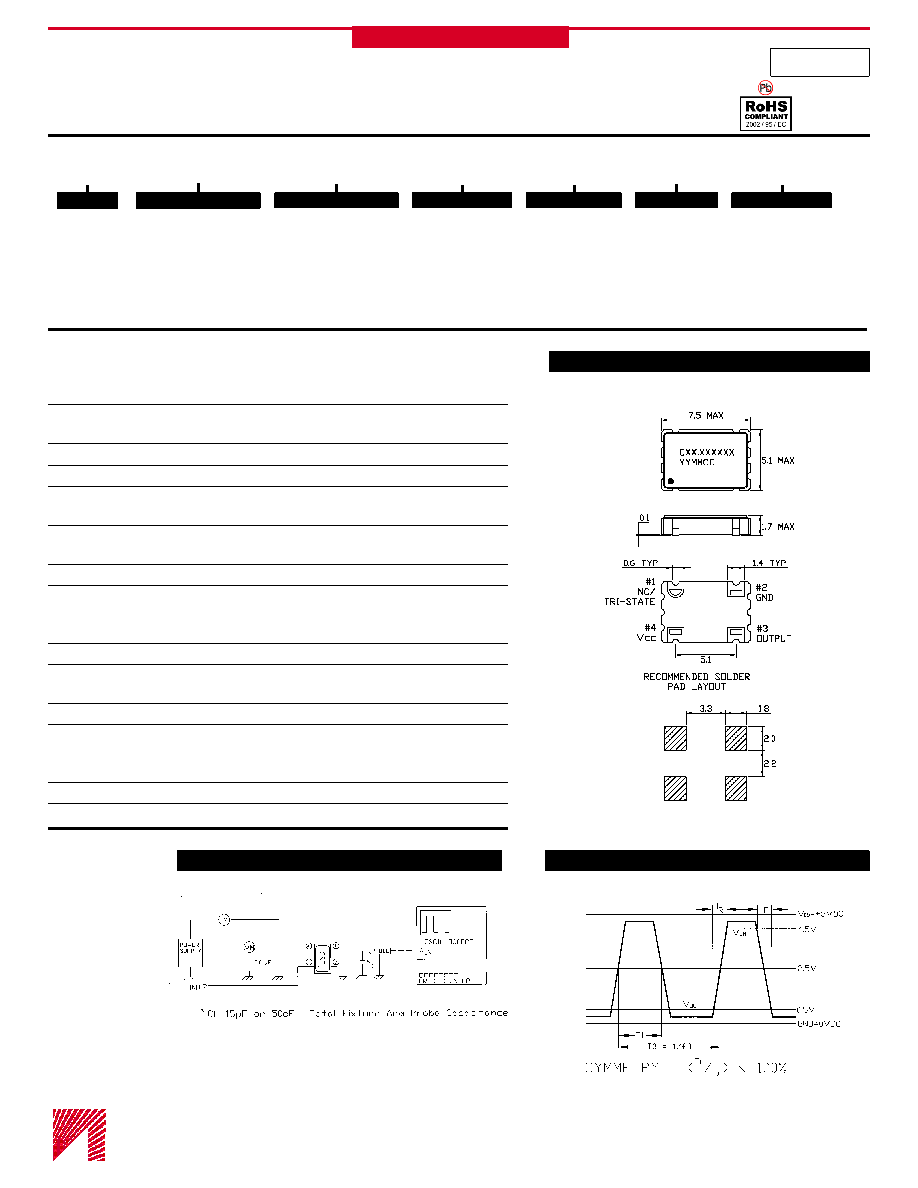

Surface Mount Clock Oscillator
Tristate capable
1.7 mm height
50 pf load compatible
Part Numbering Example: CC065H Z - A2 B2 45 - 33.333 TS
Specifications:
Frequency Range:
1.8432 MHz to 80.000 MHz
Available Stability Options: ±100 ppm
Standard
±50 ppm
Output Series:
LSTTL / HCMOS
Input Voltage:
+5.0 VDC ±10%
Operating Temperature
-10°C to +70°C
Standard
Range Options:
-40°C to +85°C
Output Voltage:
VOL = 0.5 V Max.
VOH = 4.5 V Min.
Output Load:
10 TTL, 50 pf CMOS
Maximum Input Current:
27 mA (1.8432 to 31.999 MHz)
45 mA (32.000 to 49.999 MHz)
75 mA (50.000 to 80.000 MHz)
Maximum Rise/Fall Time:
7 ns
Duty Cycle:
40/60%
Standard
45/55%
Max. Start-Up Time:
10 ms
Tristate Input:
+0.80 VDC Max. to Disable
+3.60 VDC Min. to Enable
or open to Enable
Storage Temperature:
-55°C to +125°C
Packaging:
Tape and Reel (1K per Reel)
Series
TRI STATE
Tri State Standard
TS
FREQUENCY
33.333
SYMMETRY
Blank = 40/60%
45 = 45/55%
45
STABILITY
Blank = ±100 ppm
B2
= ± 50 ppm
B2
OPERATING TEMP.
Blank =
0°C~ +70°C
A2
= -40°C~ +85°C
A2
SERIES
CC065H
CC065H
ADDED FEATURES
BLANK = BULK PACK
Z = TAPE AND REEL
Z
TEST CIRCUIT
CC065H
OUTPUT WAVE FORM
CC065H
