| 型號： | CD4071BC |
| 廠商： | Fairchild Semiconductor Corporation |
| 英文描述： | Quad 2-Input OR Buffered Gate(四2輸入或門) |
| 中文描述： | 四2輸入或緩沖門（四2輸入或門） |
| 文件頁數： | 1/7頁 |
| 文件大小： | 96K |
| 代理商： | CD4071BC |
October 1987
Revised January 1999
C
1999 Fairchild Semiconductor Corporation
DS005977.prf
www.fairchildsemi.com
CD4071BC CD4081BC
Quad 2-Input OR Buffered B Series Gate
Quad 2-Input AND Buffered B Series Gate
General Description
The CD4071BC and CD4081BC quad gates are monolithic
complementary MOS (CMOS) integrated circuits con-
structed with N- and P-channel enhancement mode tran-
sistors. They have equal source and sink current
capabilities and conform to standard B series output drive.
The devices also have buffered outputs which improve
transfer characteristics by providing very high gain.
All inputs protected against static discharge with diodes to
V
DD
and V
SS
.
Features
I
Low power TTL compatibility:
Fan out of 2 driving 74L or 1 driving 74LS
I
5V–10V–15V parametric ratings
I
Symmetrical output characteristics
I
Maximum input leakage 1
μ
A at 15V over full
temperature range
Ordering Code:
Devices are also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

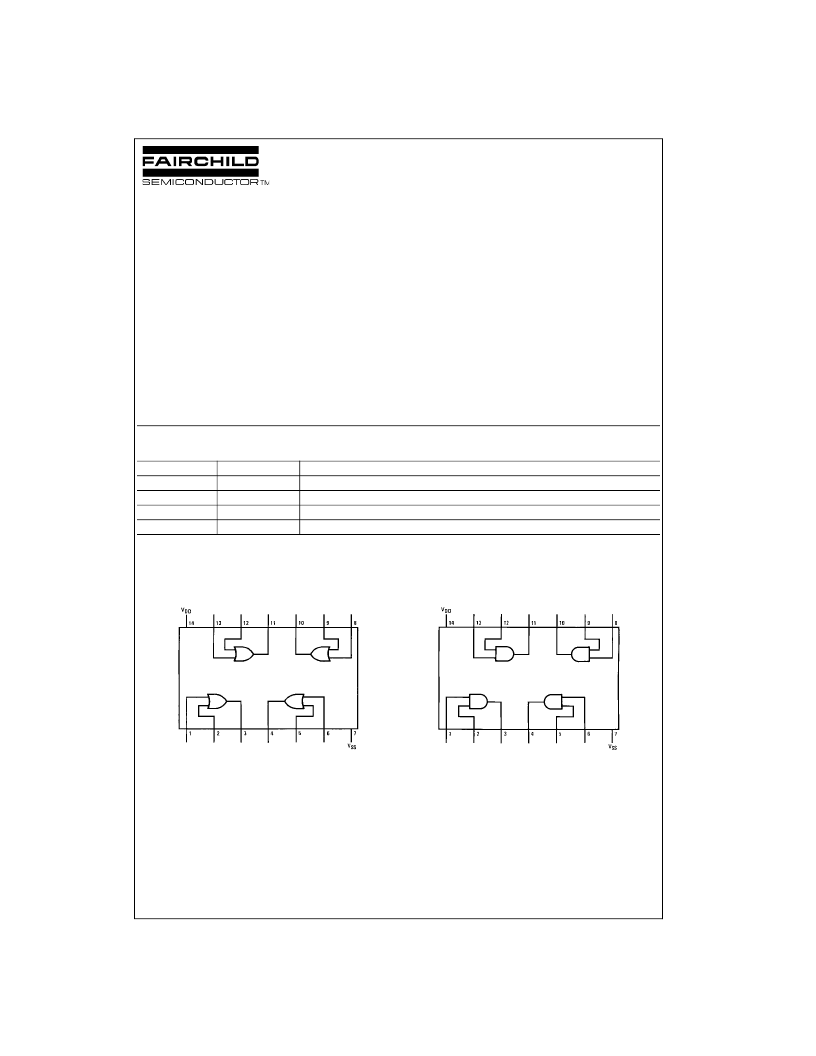

Connection Diagrams
Pin Assignments for DIP and SOIC
CD4071B
Top View
CD4081B
Top View
Order Number
CD4071BCM
CD4071BCN
CD4081BCM
CD4081BCN
Package Number
M14A
N14A
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
