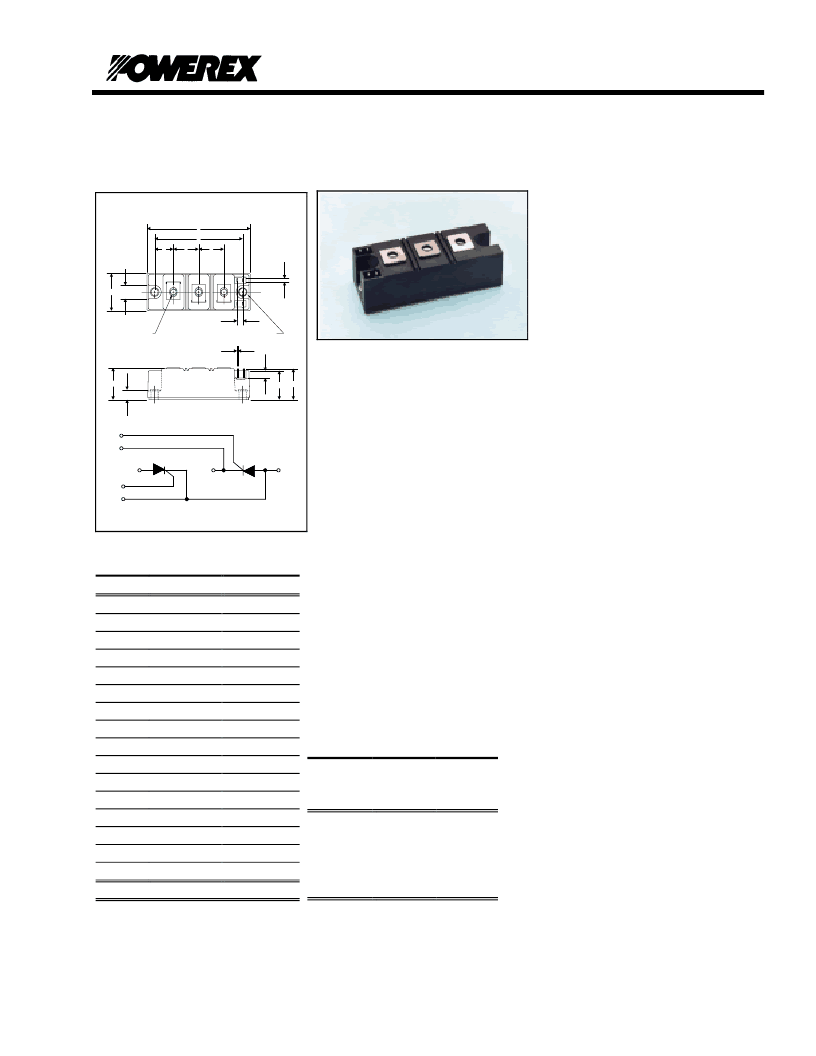

Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
TM
Dual SCR Isolated Module
Up to 160 Amperes & 1600 Volts
CD63__15A
Dual SCR Isolated
POW-R-BLOK
Module
Up to 160 Amperes & 1600 Volts
Ordering Information
:
Example: Select the complete nine
digit module part number from the
table below.
Example: CD631615A is a 1600Volt,
150 Ampere Dual SCR Isolated
POW-R-BLOK
Module
Description:
Powerex Dual SCR Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
POW-R-BLOK
has been tested and
recognized by the Underwriters
Laboratories.
Features:
Electrically Isolated Heatsinking
DBC Alumina (Al
2
O
3
) Insulator
Glass Passivated Chips
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
Quick Connect Gate Terminal
with Provision for Keyed Mating
Plug
UL Recognized (E78240)
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Lighting Control
Heat & Temperature Control
Welders
05/09/2000
CD63__15A
CD63_15A Outline Dimensions
Dimension
Inches
Millimeters
A
3.70
94
B
1.38
35
C
1.18
30
D
3.15
80
E
0.67
17
F
0.91
23
G
0.57
14.5
H
0.35
9
J
M6
M6
K
0.26
6.5
M
.020
5
N
0.28
7
P
1.10
28
Q
1.14
29
R
0.03
0.8
S
0.11
2.8
Note: Dimensions are for reference only.
Type
Voltage
Volts
(x100)
Current
Amperes
(x 10)
CD63
08
12
14
16
15
16
+
1
~
3
-
4
5
2
7
6
CONNECTION DIAGRAM
A
D
G
C
1
2
3
B
E
F
F
H
"J" (3)
5
7
M
N
P
Q
R
S
4
6
F
"K" (2)
OUTLINE DRAWING
